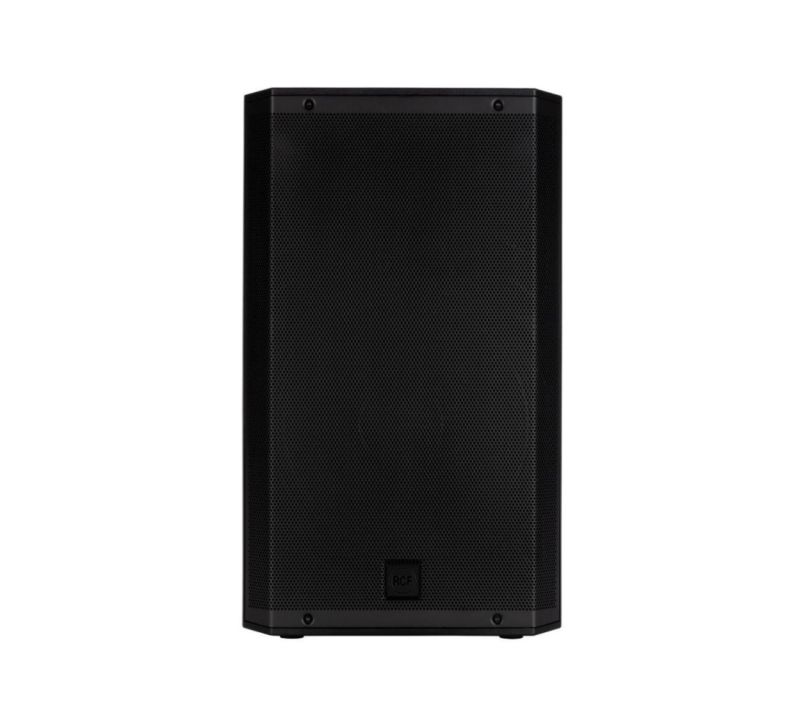

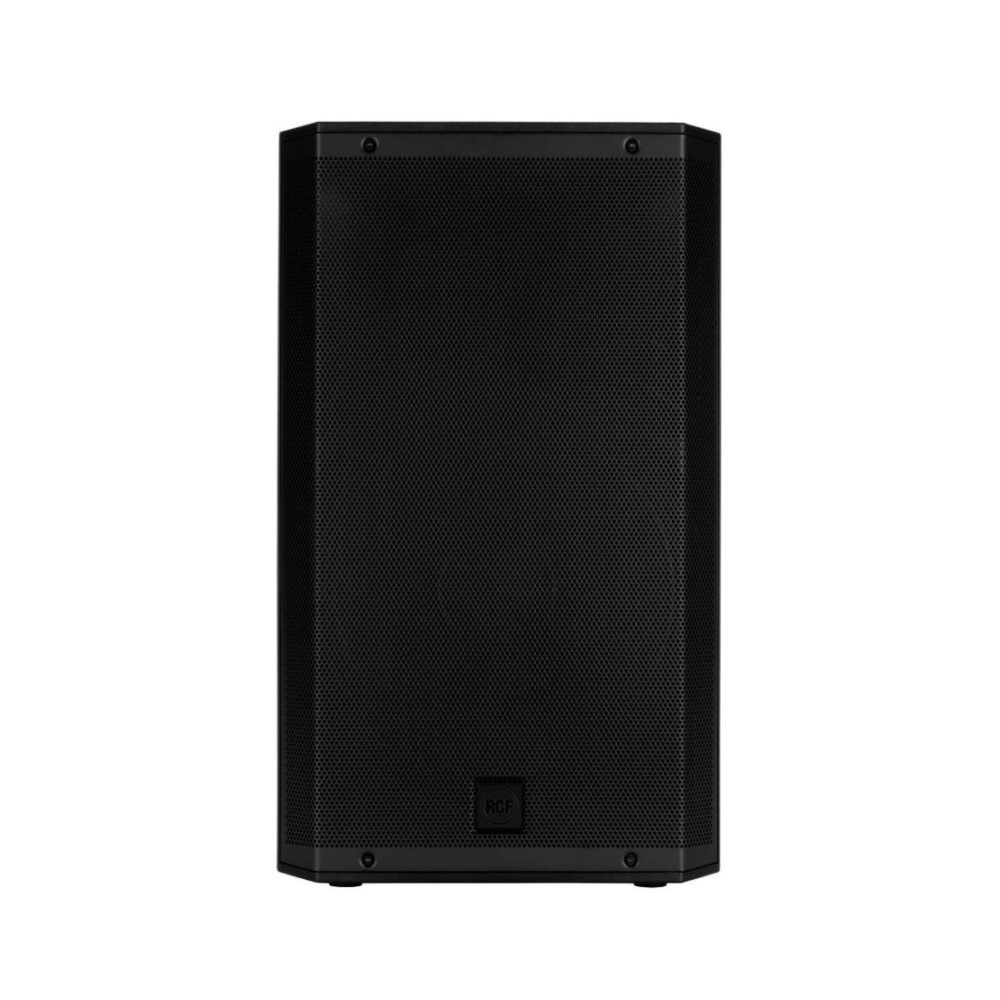

The ART 910-AX has been meticulously designed to provide exceptional audio performance and versatility for demanding audio applications. The combination of a 10-inch woofer, a 1.75-inch compression driver, a two-channel 2100W amplifier, and the constant directivity True Resistive Waveguide offers coherent 100° x 60° coverage with up to 130 dB SPL, distortion-free music.
- See full product description
The Art 9-AX speaker range now includes Bluetooth and a full-colour touchscreen for exploring and configuring an assortment of forward-thinking digital options. In Easy mode, the menu offers simple and straightforward options to get you up and running in no time. In contrast, in Advanced mode, more experienced sound engineers are given more professional configuration and routing options. As an added benefit, you can control it all directly from your phone or tablet using the Android and iOS-compatible RCF LiveRemote App.
The ART 910-AX has been meticulously designed to provide exceptional audio performance and versatility for demanding audio applications. The combination of a 10-inch woofer, a 1.75-inch compression driver, a two-channel 2100W amplifier, and the constant directivity True Resistive Waveguide offers coherent 100° x 60° coverage with up to 130 dB SPL, distortion-free music.
Audiences will experience absolute clarity and deep, powerful bass response thanks to the combination of RCF's unique FiRPHASE and Bass Motion Control (BMC) DSP processing, which has been carefully calibrated for each model. In addition, the ART 910-AX combines a robust and high-performance amplified speaker with a digital audio processor for optimum flexibility.
Several operating modes are available, including using the speaker alone or in conjunction with other speakers. Bluetooth® allows the audio and remote control to be sent to the speaker. All available features and parameters are accessible via a capacitive touch screen and an encoder on the onboard colour display, as well as a specialised app for iOS and Android smartphones.
- Built-in 6-channel Digital Mixer
- Advanced User Interface w/ touch panel and remote control
- 1.75" Compression Driver and 10" Woofer
- Up to 130 dB Sound Pressure Level
- 2100W Class-D Bi-Amplification
- Dual combo preamp with 48V Power and Mini-jack stereo line input
- Bluetooth® stereo audio input, with dual speaker pairing option
- True Resistive Waveguide, FiRPHASE, and Bass Motion Control
ACOUSTICAL SPECIFICATIONS
- Frequency Response: 50 Hz ÷ 20000 Hz
- Max SPL @ 1m: 130 dB
- Horizontal coverage angle: 100°
- Vertical coverage angle: 60°
TRANSDUCERS
- Compression Driver: 1 x 1.0'', 1.75'' v.c
- Woofer: 10'', 2.5'' v.c
INPUT/OUTPUT SECTION
- Input signal: bal/unbal
- Input connectors: Combo XLR/Jack
- Output connectors: XLR
PROCESSOR SECTION
- Crossover Frequencies: 1600Hz
- Protections: Thermal, RMS
- Limiter: Soft Limiter
- Controls: Colour touch panel, data entry/volume encoder, dedicated App for iOS and Android.
POWER SECTION
- Total Power: 2100 W Peak, 1050 W RMS
- High frequencies: 700 W Peak, 350 W RMS
- Low frequencies: 1400 W Peak, 700 W RMS
- Cooling: Convection
- Connections: VDE
ELECTRONIC SPECIFICATIONS
- Frequency Response: 20 Hz ÷ 20 Hz
- THD+N, 20dB gain, 0dBu out: 0.005% A-Weighted
PROCESSING
- Processing Channels: 6
- Signal Processing: 24 Bit
- A/D-D/A conversion: 32 Bit @ 48.0 kHz
- Dynamic range: 110
INPUTS
- Mic: 2
- Remote Controlled Storable Gain: Yes
- Gain Range: 0 dB ÷ 42 dB
- Input Noise Level: -114 dBu A-Weighted
- Mic Inputs Impedance: 6 kohm
- Low Cut: 20 Hz ÷ 400 Hz
- Phantom Power +48V: Yes
- Mono Line: 2
- Gain Selection: 0 dB ÷ 22 dB
- Line Input Impedance: 21 kohm
- A/D Dynamic range: 114 dB
- Stereo Line: 1
- Gain Selection: 0 dB ÷ 10 dB
- Stereo Line Input Impedance (kOhm): 13 kohm
OUTPUTS
- Main MIX: 1
OUTPUTS SPECIFICATIONS
- Main Out Impedance: 150 ohm
- Main Out Level: 22 dBu
- D/A Dynamic Range: 114 dB
COMPRESSORS
- RCF Compressors: Compressors on MIC/LINE CH1 & CH2 Inputs
EQ
- Input Channels EQ: 2 Shelving 1
- Description: 3 Band EQ: High and Low band shelving, MID band peak on IN, 5 Band EQ: 4 Full Parametric, 1 High Shelving and HPF 24 dB/Oct on amplifier and MAIN output.
INTERNAL EFFECTS
- Send Effects: 1
MASTERING PROCESSORS
- Main OUT type: MIX OUT, CROSSOVER OUT with RCF SUBWOOFERS presets, STEREO OUTPUT, CH1 LINK OUT.
STANDARD COMPLIANCE
- Safety agency: CE compliant
PHYSICAL SPECIFICATIONS
- Cabinet/Case Material: PP Composite
- Hardware: 1 x M10 Top and Bottom
- Handles: 1 Top
- Pole mount/Cap: Yes
- Grille: Steel
- Colour: Black
SIZE
- Height: 572 mm / 22.52 inches
- Width: 330 mm / 12.99 inches
- Depth: 310 mm / 12.2 inches
- Weight: 15.8 kg / 34.83 lbs
SHIPPING INFORMATION
- Package Weight: 17.5 kg / 38.58 lbs
