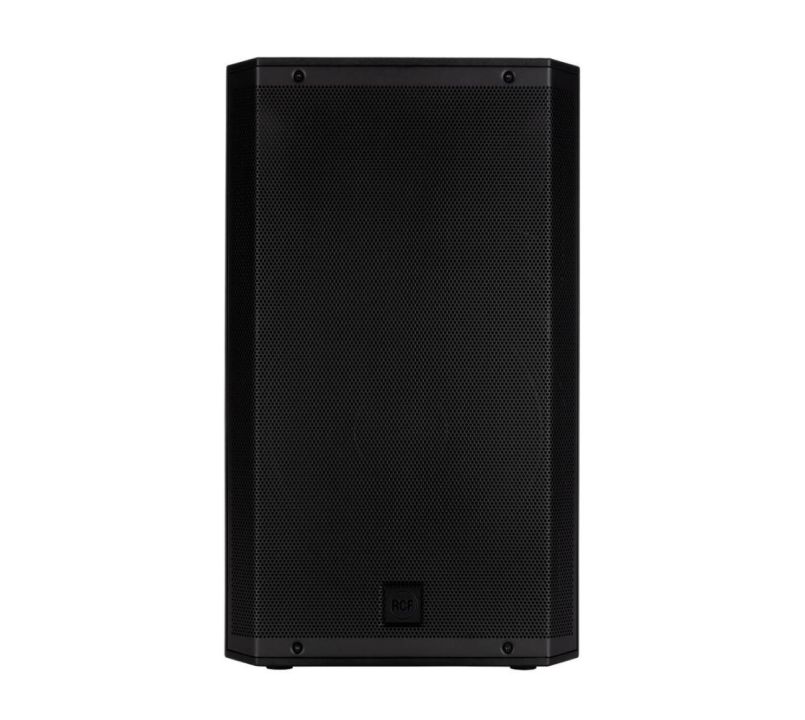

RCF ART 912-AX Active PA Speaker with Bluetooth

Availability:In stock
SKU
13000708-ART 912-AX
Special Price £755.00

Was: £880.00 Save £125.00

Seen it cheaper? We aim to match authorised UK dealers

Quick overview

The RCF ART 912-AX has been designed to provide exceptional audio performance and versatility for demanding audio applications. The combination of a 12-inch woofer, a 1.75-inch compression driver, a two-channel 2100W amplifier, and the constant directivity True Resistive Waveguide offers coherent 100° x 60° coverage with up to 130 dB SPL, distortion-free music.

  • See full product description

The RCF Art 9-AX speaker range now includes Bluetooth and a full-colour touchscreen for exploring and configuring an assortment of forward-thinking digital options. In Easy mode, the menu offers simple and straightforward selections to get you up and running in no time. In contrast, in Advanced mode, more experienced sound engineers are provided with more professional configuration and routing options. As an added benefit, you can control it all directly from your phone or tablet using the Android and iOS-compatible RCF LiveRemote App.

The RCF ART 912-AX has been designed to provide exceptional audio performance and versatility for demanding audio applications. The combination of a 12-inch woofer, a 1.75-inch compression driver, a two-channel 2100W amplifier, and the constant directivity True Resistive Waveguide offers coherent 100° x 60° coverage with up to 130 dB SPL, distortion-free music.

Audiences will experience clear and deep, powerful bass response thanks to the combination of RCF's unique FiRPHASE and Bass Motion Control (BMC) DSP processing, which has been carefully calibrated for each model. In addition, the ART 912-AX combines a robust and high-performance amplified speaker with a digital audio processor for optimal flexibility.

Numerous operating modes are available, including using the speaker alone or in combination with other speakers. Bluetooth® allows the audio and remote control to be sent to the speaker. All available features and parameters can be accessed via a capacitive touch screen and an encoder on the onboard colour display, as well as a specialised app for iOS and Android smartphones.

  • Built-in 6-channel Digital Mixer
  • Advanced User Interface w/ touch panel and remote control
  • 1.75" Compression Driver and 12" Woofery
  • Up to 130 dB Sound Pressure Level
  • 2100W Class-D Bi-Amplification
  • Dual combo preamp with 48V Power and Mini-jack stereo line input
  • Bluetooth® stereo audio input, with dual speaker pairing option
  • True Resistive Waveguide, FiRPHASE, and Bass Motion Control

ACOUSTICAL SPECIFICATIONS

  • Frequency Response: 50 Hz ÷ 20000 Hz
  • Max SPL @ 1m: 130 dB
  • Horizontal coverage angle: 100°
  • Vertical coverage angle: 60°

TRANSDUCERS

  • Compression Driver: 1 x 1.0'', 1.75'' v.c
  • Woofer: 12'', 2.5'' v.c

INPUT/OUTPUT SECTION

  • Input signal: bal/unbal
  • Input connectors: Combo XLR/Jack
  • Output connectors: XLR

PROCESSOR SECTION

  • Crossover Frequencies: 1600Hz
  • Protections: Thermal, RMS
  • Limiter: Soft Limiter
  • Controls: Colour touch panel, data entry/volume encoder, dedicated App for iOS and Android.

POWER SECTION

  • Total Power: 2100 W Peak, 1050 W RMS
  • High frequencies: 700 W Peak, 350 W RMS
  • Low frequencies: 1400 W Peak, 700 W RMS
  • Cooling: Convection
  • Connections: VDE

ELECTRONIC SPECIFICATIONS

  • Frequency Response: 20 Hz ÷ 20 Hz
  • THD+N, 20dB gain, 0dBu out: 0.005% A-Weighted

PROCESSING

  • Processing Channels: 6
  • Signal Processing: 24 Bit
  • A/D-D/A conversion: 32 Bit @ 48.0 kHz
  • Dynamic range: 110

INPUTS

  • Mic: 2
  • Remote Controlled Storable Gain: Yes
  • Gain Range: 0 dB ÷ 42 dB
  • Input Noise Level: -114 dBu A-Weighted
  • Mic Inputs Impedance: 6 kohm
  • Low Cut: 20 Hz ÷ 400 Hz
  • Phantom Power +48V: Yes
  • Mono Line: 2
  • Gain Selection: 0 dB ÷ 22 dB
  • Line Input Impedance: 21 kohm
  • A/D Dynamic range: 114 dB
  • Stereo Line: 1
  • Gain Selection: 0 dB ÷ 10 dB
  • Stereo Line Input Impedance (kOhm): 13 kohm

OUTPUTS

  • Main MIX: 1

OUTPUTS SPECIFICATIONS

  • Main Out Impedance: 150 ohm
  • Main Out Level: 22 dBu
  • D/A Dynamic Range: 114 dB

COMPRESSORS

  • RCF Compressors: Compressors on MIC/LINE CH1 & CH2 Inputs

EQ

  • Input Channels EQ: 2 Shelving 1
  • Description: 3 Band EQ: High and Low band shelving, MID band peak on IN, 5 Band EQ: 4 Full Parametric, 1 High Shelving and HPF 24 dB/Oct on amplifier and MAIN output.

INTERNAL EFFECTS

  • Send Effects: 1

MASTERING PROCESSORS

  • Main OUT type: MIX OUT, CROSSOVER OUT with RCF SUBWOOFERS presets, STEREO OUTPUT, CH1 LINK OUT.

STANDARD COMPLIANCE

  • Safety agency: CE compliant

PHYSICAL SPECIFICATIONS

  • Cabinet/Case Material: PP Composite
  • Hardware: 1 x M10 Top, 1 x M10 each side
  • Handles: 1 Top, 1 each side
  • Pole mount/Cap: Yes
  • Grille: Steel
  • Colour: Black

SIZE

  • Height: 642 mm / 25.28 inches
  • Width: 370 mm / 14.57 inches
  • Depth: 363 mm / 14.29 inches
  • Weight: 19.8 kg / 43.65 lbs

SHIPPING INFORMATION

  • Package Height: 685 mm / 26.97 inches
  • Package Width: 423 mm / 16.65 inches
  • Package Depth: 430 mm / 16.93 inches
  • Package Weight: 22 kg / 48.5 lbs
