Chauvet DJ 4Bar Flex Q ILS

BACK-ORDER - Estimated Stock Arrival: 09-12-2024
SKU
4BarFlexQILS
£450.00

Seen it cheaper? We aim to match authorised UK dealers

Quick overview

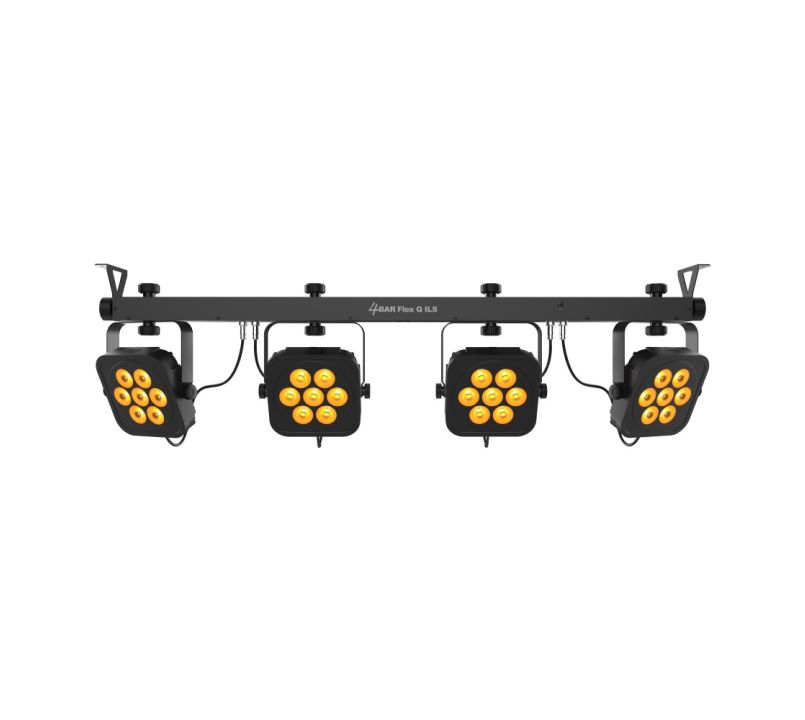

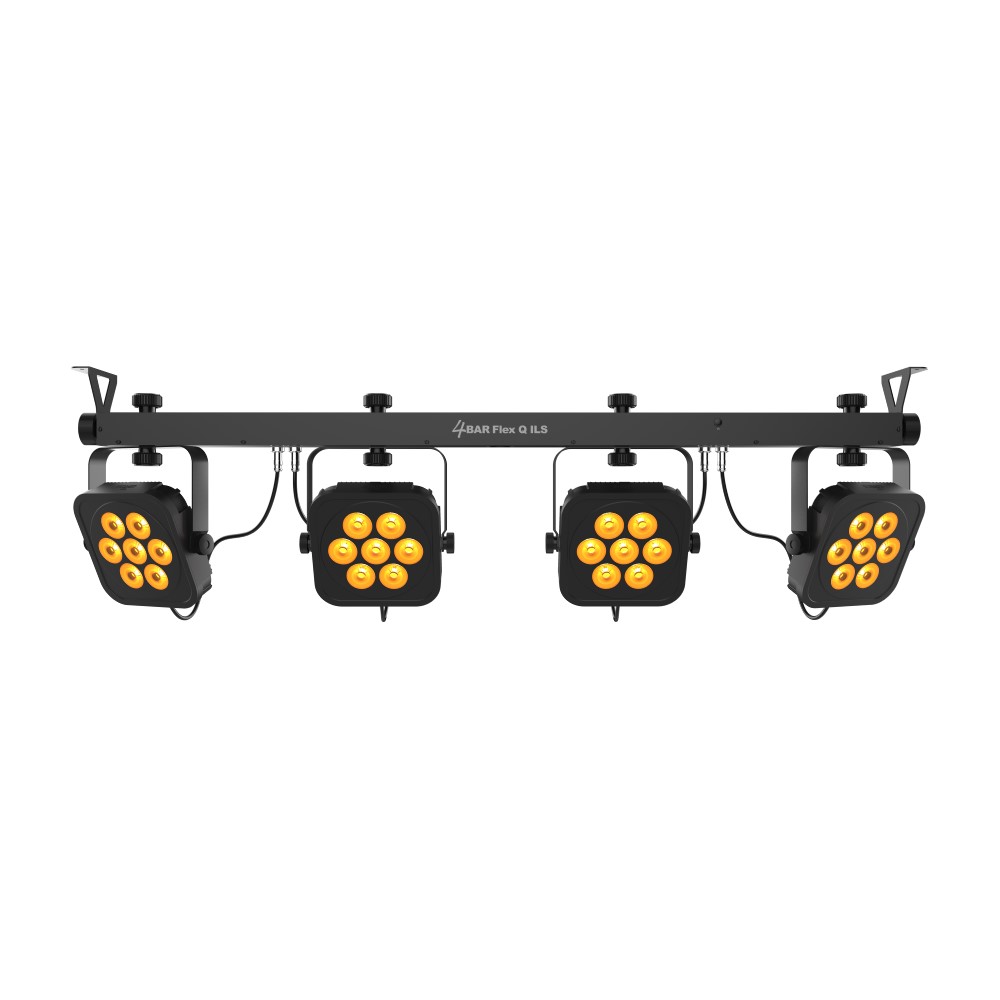

The Chauvet DJ 4BAR Flex Q ILS raises the bar for comprehensive wash lighting ease. This integrated solution features four par fixtures on a single bar.

  • Complete wash lighting solution
  • Generate a broad spectrum of colours
  • D-Fi™ USB compatibility
  • Included carrying bag
  • Multiple control options
  • See full product description

The Chauvet DJ 4BAR Flex Q ILS raises the bar for comprehensive wash lighting ease. This integrated solution features four par fixtures on a single bar. In addition to being able to generate synchronised light shows without DMX, the 4BAR Flex Q ILS is also compatible with the Integrated Lighting System (ILS), which enables creating coordinated light displays across an endless number of different fixture types straightforward and fast. Its powerful amber LEDs are part of a set of high-intensity, quad-colour (RGBA) LEDs that produce a wide range of hues and realistic colour temperatures. The lightweight and portable 4BAR Flex Q ILS may be assembled or disassembled in a matter of minutes. The unit's two L-brackets expand the range of possible arrangements and installations. The 4BAR Flex Q ILS has built-in Edison connections, so you can attach up to four more lights to the top of the fixture. The pass-through hole allows you to attach the 4BAR Flex Q ILS to a variety of tripods and speaker stands without the need for any additional clamps. Standalone, DMX mode, a wireless footswitch, or the IRC-6 can all be used for control, and the unit is D-FiTM USB compatible for wireless master/slave or DMX control.

  • Complete wash lighting solution fitted with high-intensity, quad-colour (RGBA) LEDs
  • ILS compatibility for use in the ILS ecosystem

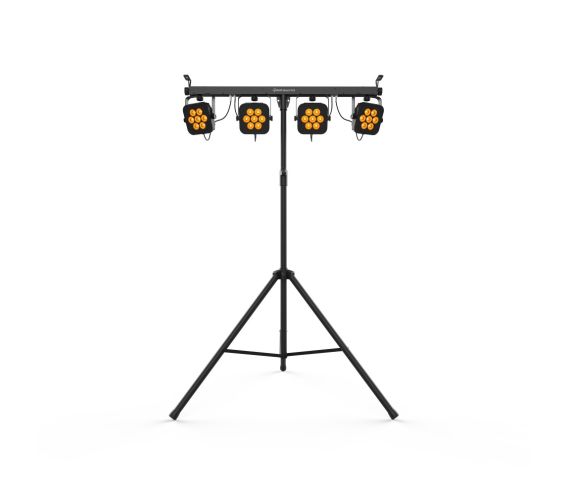

  • Mounts to most tripods or speaker stands, without the need for additional clamps, using the pass-through hole (stand not included)
  • Generate a broad spectrum of colours and achieve natural-looking colour temperatures with punchy amber LEDs
  • D-Fi™ USB compatibility for wireless master/slave or DMX control
  • Create the ultimate light show by mounting up to 4 additional fixtures to the top of the 4Bar Flex Q
  • Provide electricity to the additional lights by using the built-in Edison plugs
  • Maximise setup possibilities and configurations with 2 included L-brackets
  • Easily set up and tear down in minutes with the included carrying bag
  • Multiple control options include standalone, DMX mode, wireless footswitch or the IRC-6 remote
  • Safely mounts to truss using built-in bolts

What's Included

  • 4Bar Flex Q ILS
  • Power cord
  • Carrying bag
  • Wireless footswitch
  • IRC-6 remote
  • Quick Reference Guide
  • DMX Channels: 4, 6 or 19
  • DMX Connectors: 3-pin XLR
  • Max Unobstructed Distance: 28 LEDs (quad-color RGBA) 3.5 W, (1.3 A), 50,000 hours life expectancy
  • Strobe Rate: 0 to 20 Hz
  • Beam Angle: 14°
  • Field Angle: 23°
  • Illuminance: 2,353 lux @ 2 m (per pod)
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:
    • 80 W, 1.2 A @ 120 V, 60 Hz
    • 78 W, 0.6 A @ 230 V, 50 Hz
  • Approvals: CE, RoHS, UKCA
  • Operating Frequency (D-Fi): 2.412 to 2.484 GHz
  • Operating Frequency (foot switch): 433 MHz
  • Max Unobstructed Distance (foot switch): 100 ft (30.5 m)
  • Footswitch battery: 9 V
  • Fits Tripod Sizes: 1.5 in (36.80 mm)
  • Bracket Mounting Hole: M10 (1.5 mm pitch)
  • Weight: 12.2 lb (5.5 kg)
  • Weight (Controller): 1.2 lb (0.6 kg)
  • Size: 45.7 x 2 x 12 in (1186 x 50.8 x 305 mm)
  • Size (Controller): 16.5 x 5.2 x 1.5 in (419 x 132 x 38 mm)
  • Included controller: IRC-6
  • Optional controller: D-Fi USB
