Chauvet DJ 4Bar Quad ILS
BACK-ORDER - Estimated Stock Arrival: 10-12-2025
SKU
4BarQuadILS
£499.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview

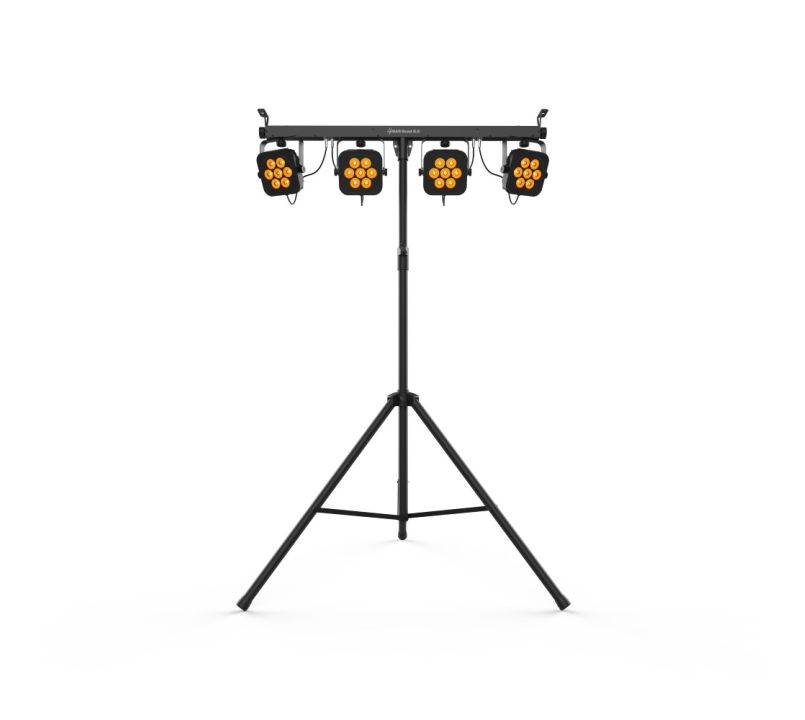

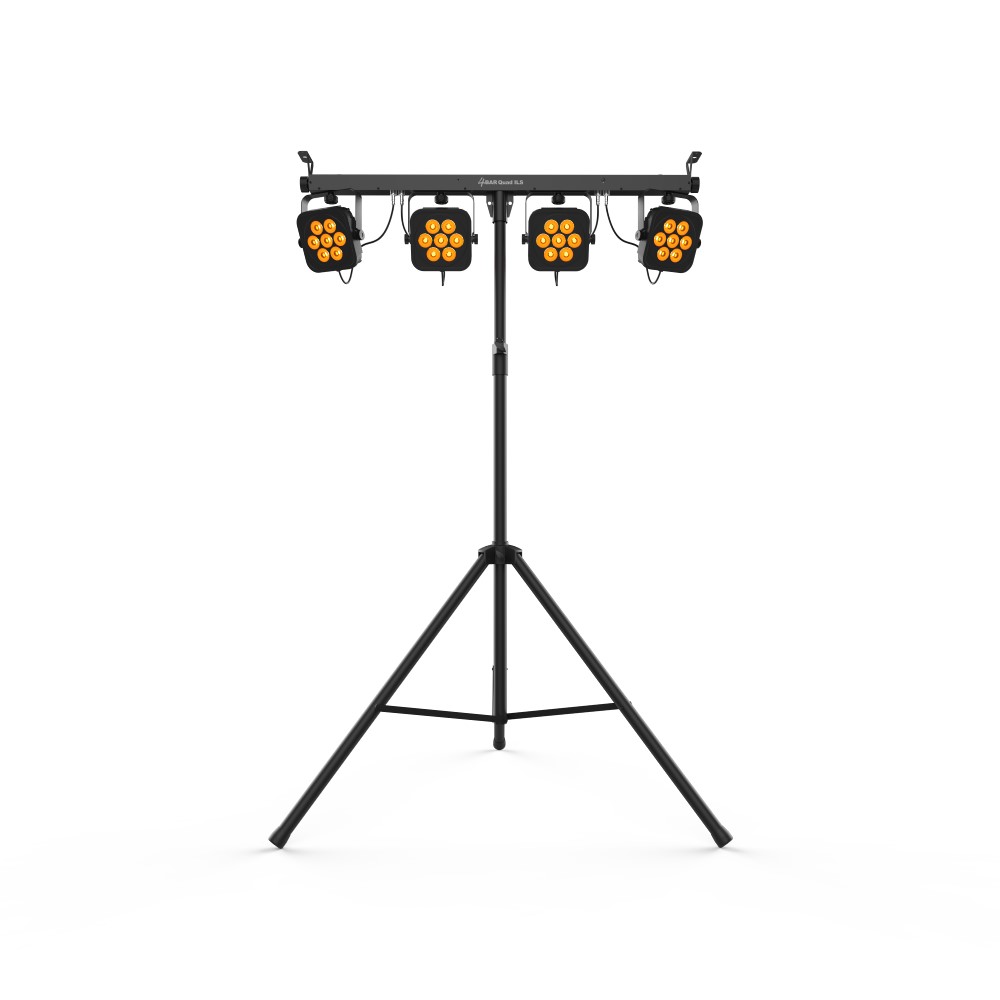

The Chauvet DJ 4BAR Quad ILS is a remotely controllable, all-in-one wash lighting solution with powerful quad-colour (RGBA) LEDs.
- Complete wash lighting solution
- High-intensity, quad-colour (RGBA) LEDs
- Broad spectrum of colours
- Included footswitch or optional IRC-6 controller
- Included tripod stand and carrying bags
- See full product description
The Chauvet DJ 4BAR Quad ILS is a remotely controllable, all-in-one wash lighting solution with powerful quad-colour (RGBA) LEDs. Included is a footswitch or an optional IRC-6 controller. The Integrated Lighting System (ILS) makes it simple and quick to create synchronised light shows using an endless variety of fixture types, making control even more convenient than before. Use the four movable pods to create a wide range of natural, warm colours, highlighted by amber, and able to fill an entire room with uniform illumination. D-Fi USB allows wireless Master/Slave or DMX programming on the 4BAR Quad ILS. A tripod and carrying case are provided for easy transport and quick assembly. The 4BAR Quad ILS has integrated bolts for secure truss attachment, giving you more mounting options.
- Complete wash lighting solution fitted with high-intensity, quad-colour (RGBA) LEDs
- Integrated Lighting System compatibility for use in the ILS ecosystem
- Broad spectrum of colours and achieve natural-looking colour temperatures with punchy amber LEDs
- Included footswitch or optional IRC-6 controller
- Included tripod stand and carrying bags
- D-Fi™ USB compatibility for wireless Master/Slave or DMX control
- Achieve total room or stage coverage with 4 individually adjustable heads
- Increase mounting options by safely mounting to truss using built-in bolts
What's Included
- 4Bar Quad ILS
- Power cord
- Carrying bag
- Tripod
- Tripod Carry bag
- Wireless Footswitch
- Quick Reference Guide
- DMX Channels: 4, 6 or 19
- DMX Connectors: 3-pin XLR
- Light Source: 28 LEDs (quad-colour RGBA) 3.5 W, (1.3 A), 50,000 hours life expectancy
- Strobe Rate: 0 to 20 Hz
- Beam Angle: 14°Field Angle: 23°Illuminance: 2,353 lux @ 2 m (per pod)
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current:
- 80 W, 1.2 A @ 120 V, 60 Hz
- 78 W, 0.6 A @ 230 V, 50 HzWeight: 12.2 lb (5.5 kg)
- Size: 45.7 x 2 x 12 in (1186 x 50.8 x 305 mm)
- Approvals: CE, RoHS, UKCA
- Operating Frequency (D-Fi): 2.412 to 2.484 GHz
- Operating Frequency (foot switch): 433 MHz
- Max Unobstructed Distance (foot switch): 100 ft (30.5 m)
- Footswitch battery: 9 V
- Stand Height: 7 ft 4 in (2.2 m)
- Fits Tripod Sizes: 1.5 in (36.80 mm)
- Bracket Mounting Hole: M10 (1.5 mm pitch)
- Weight (Controller): 1.2 lb (0.6 kg)
- Size (Controller): 16.5 x 5.2 x 1.5 in (419 x 132 x 38 mm)
- Optional Controllers: IRC-6, D-Fi USB
