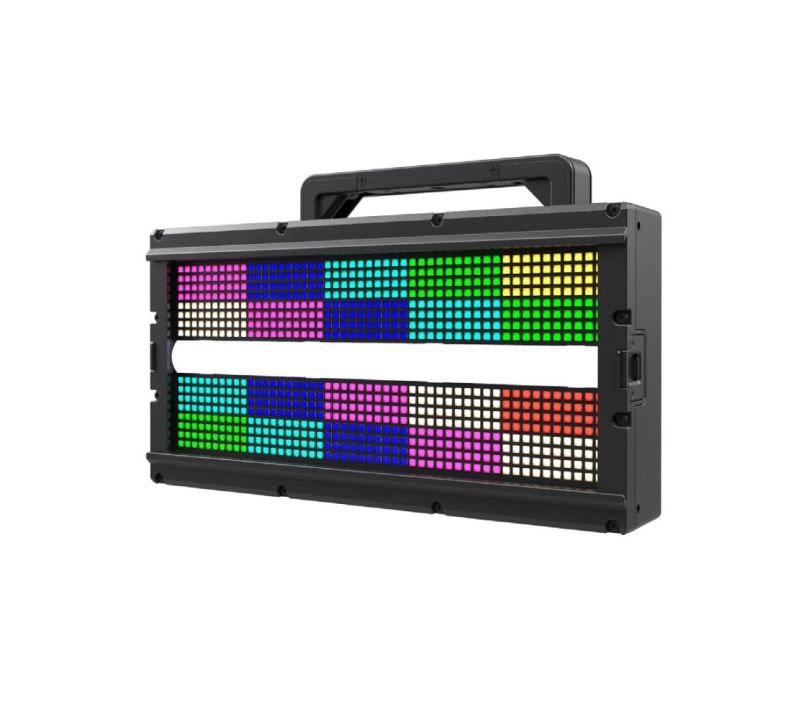

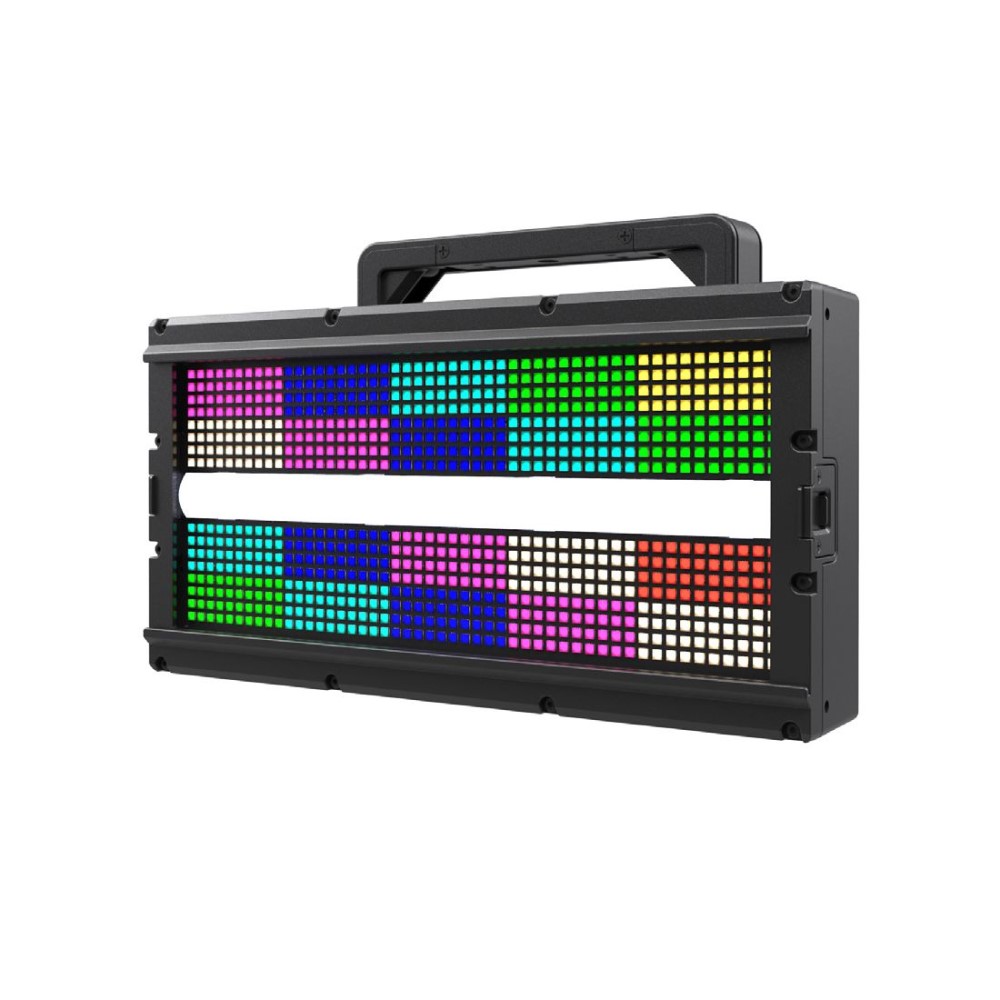

American DJ Jolt Panel FXIP Lighting Effect
BACK-ORDER - Estimated Stock Arrival: 25-02-2026
SKU
1226200074
Special Price £887.00 Was: £899.00 Save £12.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
The ADJ Lighting Jolt Panel FXIP is a unique multi-purpose strobe, wash, and visually pleasing fixture suitable for huge stages, nightclubs, live events, and touring.
- See full product description
The ADJ Lighting Jolt Panel FXIP is a unique multi-purpose strobe, wash, and visually pleasing fixture. It features 800 x 0.5-Watt RGB SMD LEDs for colour strobe, wash, and striking visual effects, as well as 48 x 5-Watt white SMD LEDs in the fixture's centre to give the typical strobe look. Both types of LEDs are organised into separate programmable zones (6 white and 40 colour), enabling for the production of eye-catching animated chasing patterns. The Jolt Panel FXIP's powerful light output is ideal for huge stages, nightclubs, live events, and touring.
LIGHT SOURCE
- 800 x 0,5-Watt RGB SMD LEDs + 48 x 5-Watt Cool White SMD LEDs
- 73° Beam Angle
- 111° Field Angle
- Colour LEDs Temperature: Red: 620-630nm; Green: 515-525nm; Blue: 460-470nm. / Cool White LED: 6900-7400K Color Temperature
- CRI: 69.4
- 50,000 Hour Average LED Life
FEATURES
- 40 x RGB LED Zones
- 6 x Cool White LED Zones
- 25 Built-in RGB LED Program Macros
- 9 Built-in Cool White LED Program Macros
- IP65-Rated for temporary outdoor and indoor use
- Aria X2 Wireless DMX Built-in
- Channel for Light Shaping Filters (to Blur Pixel Dots)
- End Cap Locking Mechanism and Connecting Plat (for seamless fixture linking)
- Built-in Holes to Connect an Omega Bracket (sold separately)
CONTROL
- Control Protocols: DMX, Aria X2 and RDM
- 10 DMX Channel Modes: 6, 9, 13, 18, 36, 41, 51, 81, 126 and 141 channel modes
- Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
- Dim Curves: 4 Presets (Linear, Square Law, Inv Square Law & S Curve)
- 0-100% Smooth Dimming
- Strobe, Shutter & Pulse Control
- Max Strobe Rate 20Hz; Min Strobe Rate: 1Hz.
- Refresh Rate: 900Hz - 25kHz.
- With Wired Digital Communication Network
- Display: OLED Display with 4-Button Touch Menu
CONNECTIONS
- Data: IP65-rated Outdoor Locking 5-pin DMX In/Out
- Power: IP65-rated Outdoor Locking Power In/Out
APPROVALS / RATINGS
- CE
- cETLus (Pending)
WHAT’S INCLUDED
- 1x IP65-rated, 1.83m Power locking power cable
OPTIONAL ACCESSORIES
- 180mm Omega Bracket
- ADJ Light Shaping Filters
ELECTRICAL
- 100-240V 50Hz/60Hz (Auto Sensing)
- Max Power Consumption: 208W @230V
- Max Power Link: 12pcs @230V
- Fuse Protected: T5A/250V Glass Fuse (5*20MM)
DIMENSIONS / WEIGHT
- Length: 6.06” (153.8mm)
- Width: 16.42” (417mm)
- Height: 10.38” (263.5mm)
- Weight: 13.67 lbs. (6.2kg)
