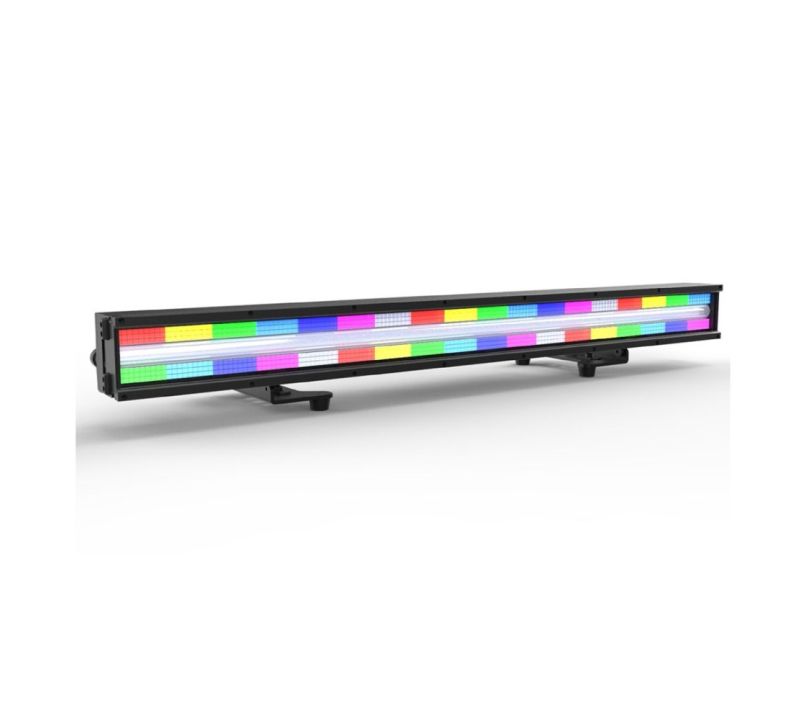

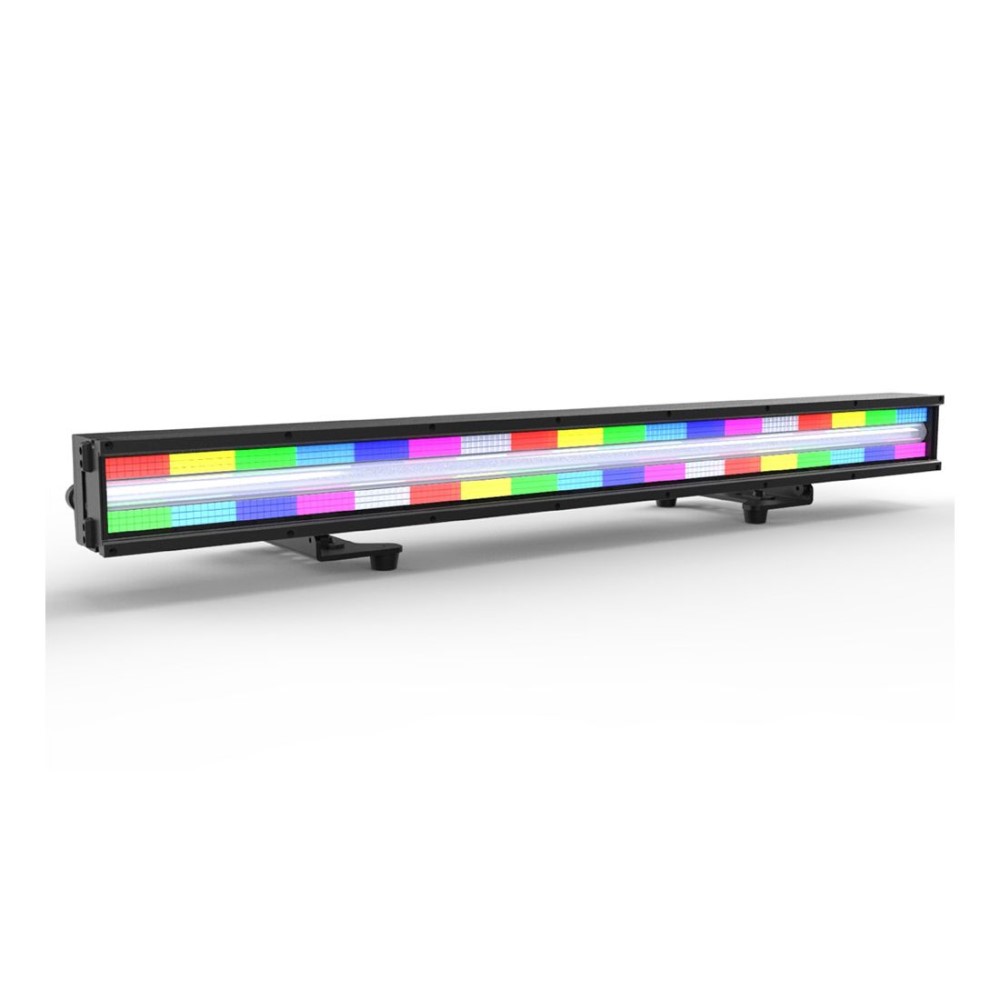

American DJ Jolt Bar FXIP LED Lighting Effect
BACK-ORDER - Estimated Stock Arrival: 25-02-2026
SKU
1226200073
Special Price £762.00 Was: £785.00 Save £23.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
The ADJ Jolt Bar FXIP has a core strip of 112 x 5-Watt cool white SMD LEDs that produce powerful white strobing, coloured washes, and strobe effects.
- See full product description
The ADJ Jolt Bar FXIP has a core strip of 112 x 5-Watt cool white SMD LEDs, bordered on all sides by 448 x 0.5-Watt RGB colour mixing SMD LEDs. This enables the same fixture to produce powerful white strobing, coloured washes, and strobe effects. Both types of LEDs are divided into separately programmable zones (16 white and 32 colour), allowing the machine to produce strobe chases and other visually pleasing effects.
LIGHT SOURCE
- 448 x 0.5-Watt RGB SMD LEDs + 112 x 5-Watt Cool White SMD LEDs
- 78° Beam Angle
- 117° Field Angle
- Colour LEDs: Red: 620-630nm; Green: 515-525nm; Blue: 460-470nm
- Cool White LEDs: 6900-7400K
- CRI: 89
- 50,000 Hour Average LED Life
FEATURES
- 32 x RGB LED Zones
- 16 x Cool White LED Zones
- 25 Built-in RGB LED Program Macros
- 9 Built-in Cool White LED Program Macros
- 180 degree mounting bracket system
- IP65-rated (for temporary outdoor use)
- Aria X2 Wireless DMX Built-in
- Frost Lens Assembly (to blur pixel dots)
- Includes End Cap Locking Mechanism and Connecting Plate (for seamless fixture linking)
CONTROL
- Control Protocols: DMX, Aria X2 and RDM
- 13 DMX Channel Modes: 6, 9, 13, 16, 18, 32, 32A 38, 43, 64, 78, 112 and 126
- Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
- Dim Curves: 4 Presets (Linear, Square Law, Inv Square Law and S Curve)
- 0-100% Smooth Dimming
- Strobe, Shutter & Pulse Control
- Max Strobe Rate 25Hz; Min Strobe Rate: 0.35Hz
- Refresh Rate: 900Hz - 25kHz
- With Wired Digital Communication Network
- Display: OLED Menu (with 4 touch buttons)
CONNECTIONS
- Data: IP65-rated locking 5-pin DMX In/Out
- Power: IP65-rated Locking In/Out Sockets
APPROVALS / RATINGS
- CE
- cETLus (Pending)
- IP65
WHAT’S INCLUDED
- 1 x IP65-rated 1.83m Locking Socket to Power Cable
- 1 x Frost Filter
- 2 x Omega Brackets (Omega Clamps sold separately)
ELECTRICAL
- 100-240V 50Hz/60Hz (Auto Sensing)
- Max Power Consumption: 214W @120V; 208W @230V
- Max Power Link: 6pcs @120V; 12pcs @230V
- Fuse Protected: T5A/250V Glass Fuse (5*20MM)
DIMENSIONS / WEIGHT
- Length: 137.5mm
- Width: 1000mm
- Height: 106.5mm
- Weight: 9.3kg
