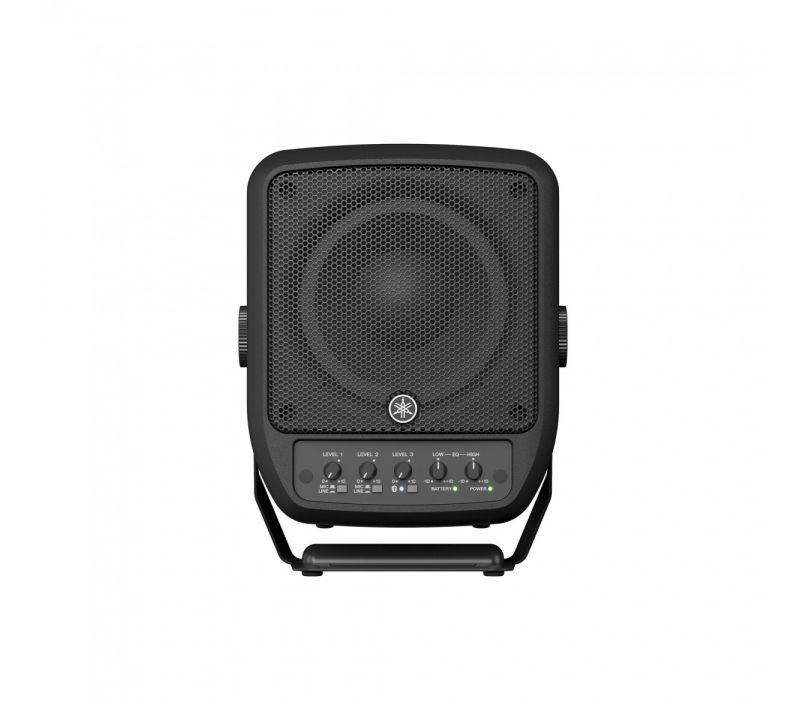

Yamaha Stagepas 100 Battery Powered Portable PA System
BACK-ORDER - Estimated Stock Arrival: 14-01-2026
SKU
CSTGPAS100BTRUK
£529.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
The Yamaha Stagepas 100 Portable PA System is a lightweight, battery-operated PA system with a powerful coaxial driver for crisp, clear sound.
- See full product description
The Yamaha Stagepas 100 Portable PA System is a lightweight, battery-operated PA system with a powerful coaxial driver for crisp, clear sound. This lightweight speaker is perfect for spontaneously turning any location into a stage, making it perfect for busking, street performances, and parties. The speaker's internal circuitry is protected within the sturdy and lightweight polypropylene casing.
The Stagepas 100 has 100 watts of efficient Class D amplification, which allows for a maximum SPL output of 120 dB without the use of bulky heat sinks. This compact speaker has a digital three-channel mixer, two combo inputs, a stereo minijack input, and it streams audio in stereo through Bluetooth.
To add to its versatility, the portable PA System may be used for up to six hours without being plugged into a power source, thanks to the built-in rechargeable battery.
- Compact and portable PA speaker
- Coaxial driver delivers full, rich sound with a 6.5-inch woofer and 1.4-inch tweeter
- Highly efficient 100 W Class D amplification
- Three channel digital mixer with two combo inputs and a stereo mini-jack for easy connectivity
- Stereo Bluetooth streaming
- Two-band master EQ
- Tough polypropylene cabinet
- Built-in handle for carrying that can rotate to use as a stand
- Included rechargeable battery for up to 6 hours of battery life without mains
- Type: 2-way bi-amp powered speaker with mixer
- Inputs: Input 1: Combo (mic/line), Input 2: Combo (mic/line), Input 3: Stereo mini-jack (line)
- Outputs: 3 x XLR3-32 (Input 1-3 Mix)
- Bluetooth: Version 5.0, A2DP (SBC, AAC), Class 1
- Mixing Channels: 3
- Input Channel Functions: Channel 2: Hi-Z
- Output Channel Functions: 2-band EQ
- Speaker Type: Coaxial speaker with compression driver
- Frequency Range (-10 dB): 70 Hz - 20 kHz
- Coverage Area: H90° x V90°
- Crossover: 1.8 kHz (FIR-X)
- Maximum Output Level: 120 dB SPL
- LF Driver: 6.5" cone, 1.7" voice coil
- HF Driver: 1" throat compression driver, 1.4" voice coil
- Amplifier Class: Class D
- Power Rating: 100 W (LF: 93 W, HF: 7 W)
- Cooling: Natural convection (no fan)
- Power Consumption: 10 W (idle), 30 W (1/8 power)
- Power Requirements: 100 - 240 V, 50/60 Hz
- Battery Type: Rechargeable lithium ion battery pack
- Battery Capacity: 60 Wh
- Operating Time: Maximum 6 hours, 1/16 power continuous 5 hours
- Charging Time: Approx. 2.5 hours
- Cabinet Material: Polypropylene
- Handle: 1 x bottom handle (rotatable)
- Flying and Mounting Hardware: 1 x 3/8", depth 12 mm (centre of handle)
- Included Accessories: 1 x power cord, 1 x PA-500 AC adaptor
- Dimensions: 239 x 310 x 215 mm (9.5" x 12.3" x 8.5"), with handle
- Weight: 5.5 kg (12.1 lbs) without AC adaptor
