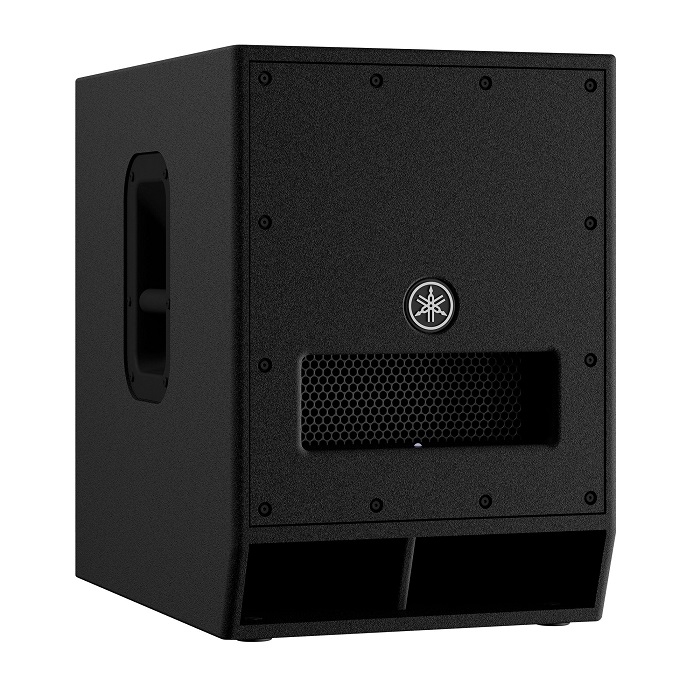

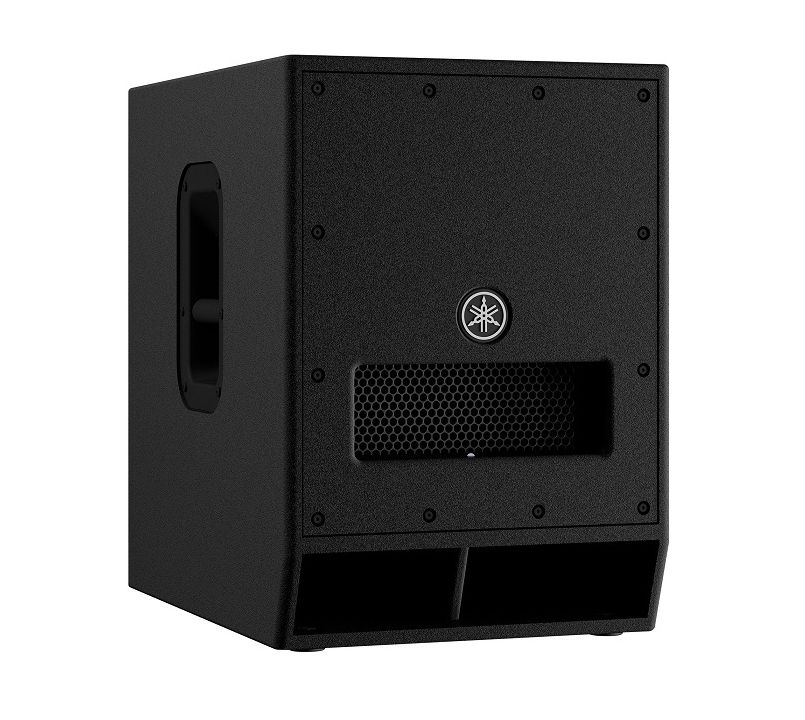

Yamaha DXS12 MK2 Active PA Subwoofer

Availability:Out of stock
SKU
DXS12
£876.00

Seen it cheaper? We aim to match authorised UK dealers

Quick overview

The Yamaha DXS12 Mk2 is an active 12-inch subwoofer that comes equipped with a 1020w Class D amplifier alongside a 12-inch low-frequency driver, a digital signal processor, and a robust plywood polyurea coated enclosure that maintains a professional appearance.

  • See full product description

The Yamaha DXS12 Mk2 is an active subwoofer that comes equipped with a large 12-inch woofer alongside a 1020w Class D amplifier that works effortlessly to deliver an impressive sound pressure level and a thick low-end extension to your sound. This subwoofer is perfect for small-medium sized club, bar, and music venues as well as mobile DJs, schools and colleges, entertainment facilities, and events productions.

Yamaha DXS12 MK2 Subwoofer

The highly-efficient 1020w Class D amplifier works effortlessly to deliver a huge sound pressure level of 136dB with a frequency response that ranges from 42 Hz – 150 Hz giving you a massive low-end extension. The 12-inch woofer comes fitted with a custom-designed 2.5-inch voice coil magnet that delivers a clear low-frequency bass response with minimal distortion at all times. A built-in D-XSUB digital signal processor provides you with a boost function for an even lower frequency response. This subwoofer is housed inside of a band-pass designed enclosure that effectively reduces unwanted vibrations and noise that could otherwise ruin your sound.

The DXS12 Mk2 comes housed inside of a super-durable road-ready enclosure that features a band-pass design ensuring unwanted vibrations and resonances will not ruin your sound. The plywood housing is coated in a Polyurea coating that is extremely damage resistant and protects the sub against scratches, bumps, and even severe weather conditions helping to maintain a professional appearance for years. The subwoofer comes fitted with dual pole mounts so you can mount a satellite speaker on top of the sub if necessary.

Yamaha DXS12 MK2 Active PA Subwoofer Key Features:

  • 12" powered subwoofer with 1020W class-D power amplifier
  • High-output 12” woofer with a band-pass design cabinet for superb bass response with a maximum 134dB SPL
  • 42Hz-150Hz frequency range is ideal for small to medium-sized applications
  • Built-in D-XSUB processing allows you to extend the frequency response even lower
  • Plywood cabinet is durable and acoustically optimized for minimal distortion
  • Cardioid mode for bass management onstage
  • Selectable X-OVER (80/100/120 Hz)
  • M20 and Ø35 mm dual pole sockets

Yamaha DXS12 MK2 Active PA Subwoofer Technical Specifications:

  • Speaker type: 12" powered subwoofer, Band-pass type
  • Frequency range (-10dB): 42 Hz - 150 Hz
  • Components: 12" cone, 2.5" voice coil
  • Output power: Dynamic: 1020W / Continuous: 800W
  • Maximum output level (1m; on axis): 134 dB SPL
  • I/O connectors: INPUT: XLR-3-31 x2 , THRU: XLR3-32 x 2(Parallel with INPUT)
  • Processors: D-XSUB: BOOST,XTENDED-LF, OFF
  • Cooling: Natural convection
  • Power requirements: 100V – 240V, 50Hz/60Hz
  • Power consumption: 100W
  • Pole socket: 35 mm (depth 80 mm) & M20 (threaded depth 25 mm)
  • Width: 400 mm (15.75")
  • Height: 567 mm (22.32")
  • Depth: 570 mm (22.44")
  • Net weight: 30.0 kg (66.1lbs)
  • Others, Material, Finish, Color: Meranti Plywood, Durable Polyurea Coating, Black
