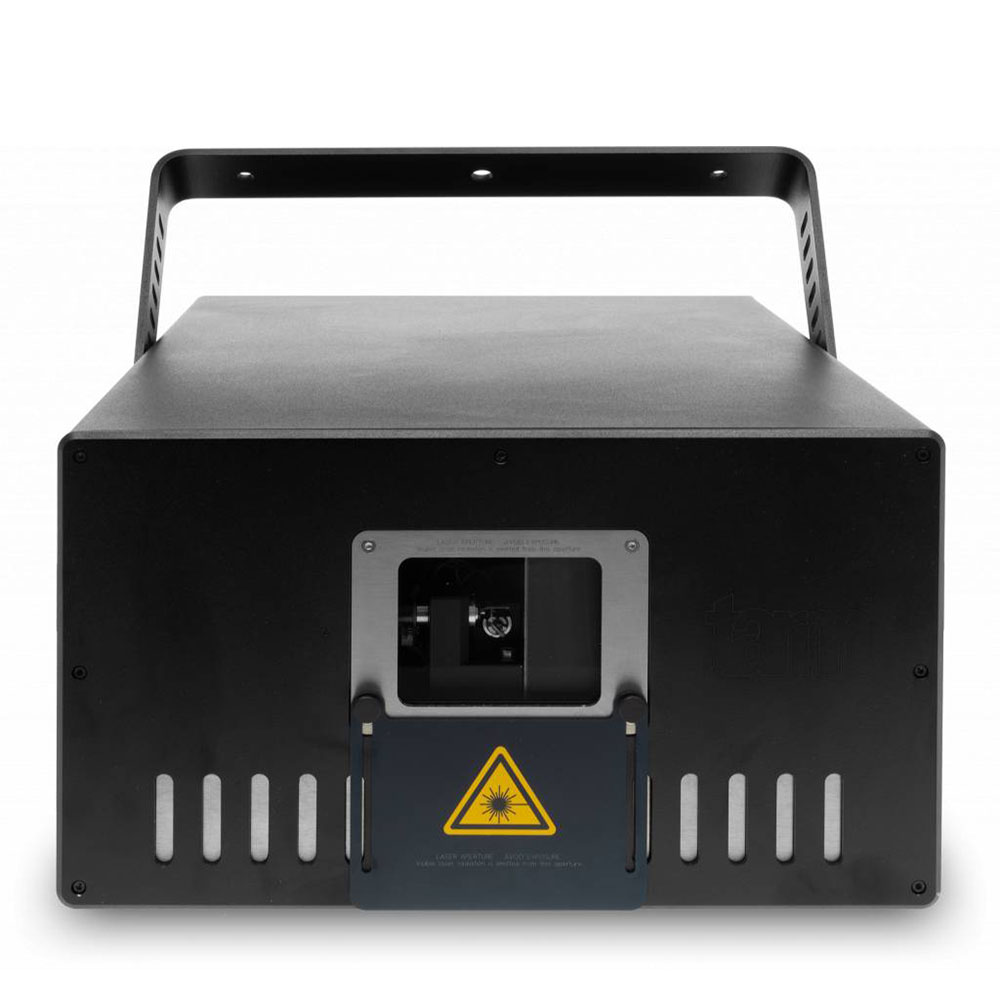

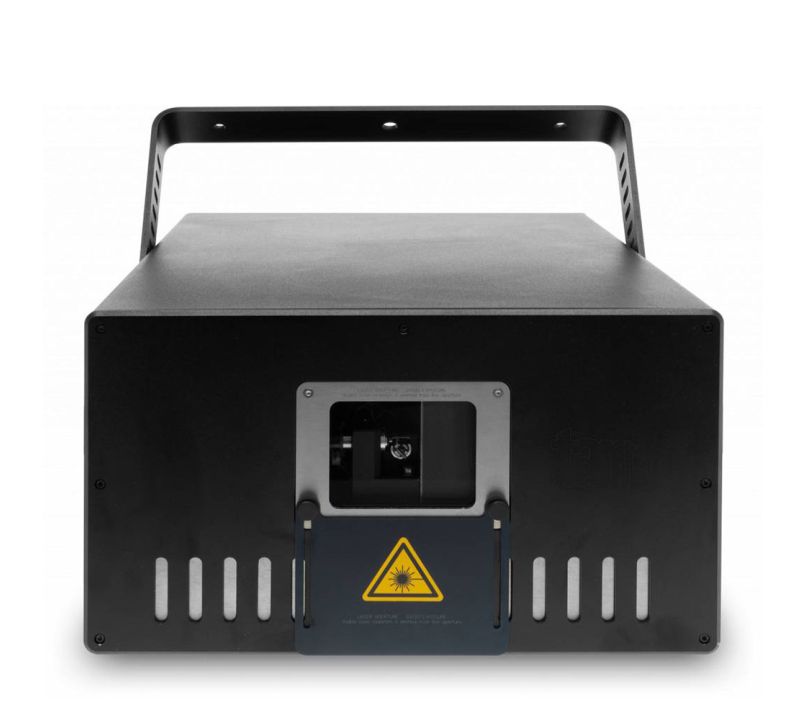

Laserworld TARM 34 RYGB OPSL Laser
Availability:Out of stock
SKU
TARM34-RYGB-OPSL-Laser
£38,000.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
This product is no longer available - please click here to view our latest Bags and Cases.
The TARM 34 RYGB OPSL has been constructed with the latest RTI Semiconductor Laser Module technology, as well as an additional yellow OPSL head. The RTI Semiconductor modules work to keep spot size and divergence equal on both axis of the unit.
- See full product description
The TARM 34 RYGB OPSL has been constructed with the latest RTI Semiconductor Laser Module technology, as well as an additional yellow OPSL head.
The RTI Semiconductor modules work to keep spot size and divergence equal on both axis of the unit. This works better than previous solutions where you would have to account for each axis. The spot size and shape of the laser modules within the TARM 34 are equal for both axis.
The unit has an additional yellow Coherent Taipan OPSL module for increased visibility and creativity, with matching spot size.
The TARM 34 RYGB OPSL produces beams with a diameter of 4.5mm and a divergence of <0.9 mrad, which applies to both axis. The smaller sized mirrors within the unit allow for reduced inertia and improve scanning performance.
- 34'000 mW guaranteed power
- Advanced RSL Semiconductor modules for extremely good beam shape and low divergence, which is equal on x- and y-axis, combined with OPSL
- Addition of high visibility 577nm yellow OPSL
- Extremely sharp intense beams especially compared to other lasers of this power
- Integrated powerful mainboard with advanced configuration features (geo-correction, zone setup, color balancing, etc.) and DAC feature
- Integrated network switch for linking the control signal
- Control screen for convenient mode selection
- Rugged tour grade housing
- Guaranteed Power at aperture: 34'000 mW
- Power Red: 8'000 mW / 637 nm
- Power Green: 9'000 mW / 525 nm
- Power Blue: 15'000 mW / 455 nm
- Power Yellow: 6'000 mW / 577 nm
- Beam Specifications (full angle): ca. 4.5 mm / <0.9 mrad
- Scanner: 45 kpps@8° ILDA; optional CT-6210H with LAS Turboscan: 60 kpps@8° ILDA, max. 60°
- Max. Scan Angle: 50°
- Laser Source: RSL modules, Coherent Taipan OPSL
- Laser Class: 4
- Operation Modes: ILDA, LAN (Software), DMX, ArtNET, ILDA-Streaming, Stand-Alone; integrated intelligent ShowNET laser mainboard with display
- Basic Patterns: over 120 (layers, tunnels, fences, waves, etc.)
- Accessories: transport case, Power cable, manual, full version Showeditor software license included
- Power Supply: 85-250 V AC 50/60 Hz
- Power Consumption: 850W
- Dimensions: 371 x 208 x 399 mm
- Weight: 35 kg
