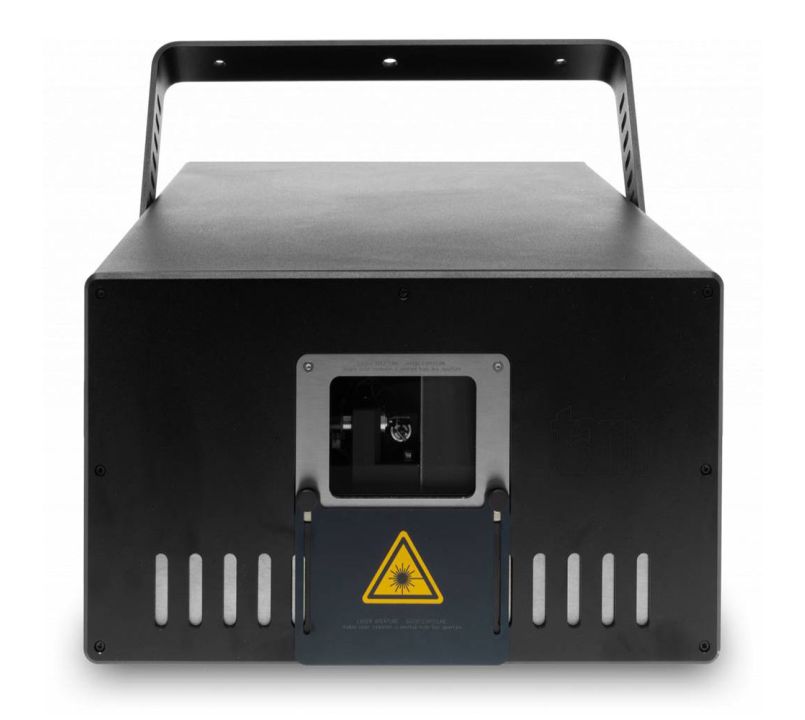

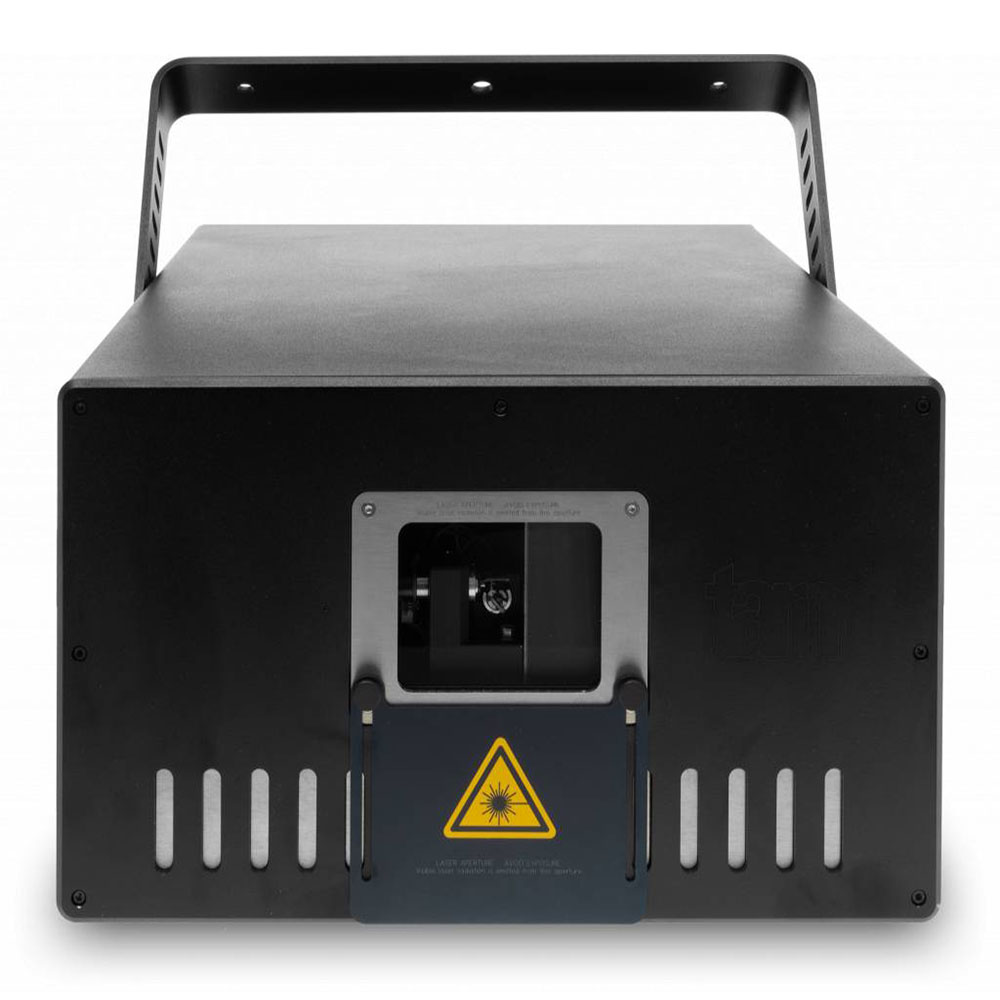

Laserworld TARM RYGB 35 OPSL Laser
Availability:Out of stock
SKU
TARM-RYGB35-OPSL-Laser
£47,900.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
This product is no longer available - please click here to view our latest range of laser lighting effects.
The TARM RYGB 35 OPSL from Laserworld is one of their most advanced, professional laser units to date, and features the latest RTI Semiconductor Laser Module Technology, a powerful green OPSL, as well as an additional, visible yellow OPSL head. The unit's colour range has been extended from the yellow Coherent Taipan OPSL module.
- See full product description
The TARM RYGB 35 OPSL from Laserworld is one of their most advanced, professional laser units to date, and features the latest RTI Semiconductor Laser Module Technology, a powerful green OPSL, as well as an additional, visible yellow OPSL head. The unit's colour range has been extended from the yellow Coherent Taipan OPSL module.
The TARM 35 produces a 4.5mm beam with <0.9 mrad divergence, applying to both axis. The small beam allows for smaller sized mirrors within the unit which are able to operate at higher speeds, providing improved scanning performance and reduced inertia.
The innovative modules allow the TARM 35 to be a professional laser system, thanks to the minimal beam divergence and homogenous beam shape. The RTI Semiconductor Laser Modules are fixed in place and are unable to come out of allignment. The standard scanners are able to operate are 45 kpps @ 8° ILDA, with a scan angle of 50°. These can be upgraded to the CT-6210 Scanners with LAS Turboscan drivers.
The TARM RYGB 35 OPSL has been constructed out of durable materials to provide additonal protection to the unit and its internals, keeping it in working order through transport and storage. It features an interlocking / e-stop port that allows the unit to be daisy-chained with several other units for straightforward installation and operation.
- 35'000 mW guaranteed power
- Advanced RSL Semiconductor modules for extremely good beam shape and low divergence, which is , combined with OPSL
- Green 10'000 mW / 530 nm OPSL for extra punch
- Addition of high visibility 577nm yellow OPSL
- Extremely sharp intense beams especially compared to other lasers of this power
- Integrated powerful mainboard with advanced configuration features (geo-correction, zone setup, color balancing, etc.) and DAC feature
- Integrated network switch for linking the control signal
- Control screen for convenient mode selection
- Rugged tour grade housing
- Guaranteed Power at aperture: 35'000 mW
- Power Red: 8'000 mW / 637 nm
- Power Green: 10'000 mW / 530 nm
- Power Blue: 15'000 mW / 455 nm
- Power Yellow: 6'000 mW / 577 nm
- Beam Specifications (full angle): ca. 4.5 mm / <0.9 mrad
- Scanner: 45 kpps@8° ILDA; optional CT-6210H with LAS Turboscan: 60 kpps@8° ILDA, max. 60°
- Max. Scan Angle: 50°
- Laser Source: RSL modules, Coherent Taipan OPSL
- Laser Class: 4
- Operation Modes: ILDA, LAN (Software), DMX, ArtNET, ILDA-Streaming, Stand-Alone; integrated intelligent ShowNET laser mainboard with display
- Basic Patterns: over 120 (layers, tunnels, fences, waves, etc.)
- Accessories: transport case, Power cable, manual, full version Showeditor software license included
- Power Supply: 85-250 V AC 50/60 Hz
- Power Consumption: 850 W
- Dimensions: 371 x 208 x 399 mm
- Weight: 35 kg
