Steinberg AXR4U USB Audio Interface
Availability:Out of stock
SKU
AXR4U-USB-Interface
£2,142.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
The new AXR4U from Steinberg has set a new standard for audio interfaces, delivering exceptional audio and build quality perfect for studios and producers. Packed with I/O the AXR4U features complete connectivity and compatibility, ideal for professional-level recording where you may be dealing with serveral connection types.
- See full product description
The new AXR4U from Steinberg has set a new standard for audio interfaces, delivering exceptional audio and build quality perfect for studios and producers. Packed with I/O the AXR4U features complete connectivity and compatibility, ideal for professional-level recording where you may be dealing with serveral connection types. Boasts 32-bit integer resolution and a sample rate of 384 kHz. Onboard SSPLL guarantees jitter elimination.
The inputs have been design to be compatible with Hi-Z signals, allowing for guitars, MIDI and most studio equipment to be connected and utilised. Loaded with a variety of digital and analog options, the AXR4U is ready for any situation. A special feature of the AX4T is that up to three units can be daisy-chained using Thunderbolt 2.
The AXR4U comes equipped with impressive hybrid mic preamps featuring switchable RND SILK emulation, which can accomodate any kind of microphone you may be using.
- 32-bit integer/384 kHz
The industry-leading converters used in the AXR4 series deliver exceptional quality audio
- AXR hybrid mic preamps
The AXR4 features extraordinarily natural-sounding hybrid microphone preamps
- Rupert Neve Designs SILK
Recording engineers have used microphone preamps designed by the legendary Rupert Neve
- Compatible with all major audio software
The AXR4 is compatible with all major audio editing, mastering, and music production software
- Digital connection
Alongside its array of XLR and 6.3mm audio connections, the AXR4 features digital in/out ports
- Word clock with SSPLL jitter reduction technology
The AXR4 uses robust SSPLL™ (Super Suppression Phase Locked Loop) technology
- Thunderbolt 2 with low latency (AXR4T)
By using Thunderbolt 2 technology, the AXR4T delivers very low latency and high CPU efficiency
- SuperSpeed USB 3.1 with USB Type-C (AXR4U)
The AXR4U features the USB 3.1 Gen 1 SuperSpeed standard
Included Software
- Cubase AI
Based on Steinberg’s award-winning advanced music production system Cubase Pro
- dspMixFx AXR mixing application
Thanks to the built-in DSP chips including Yamaha’s custom-designed DSPX chip and dspMixFx AXR software
Included Effects
- Yamaha Vintage Classic Compressor 276
The 276 is a stereo compressor that has enhanced numerous professional productions
- Yamaha Vintage Classic EQ 601
The EQ 601 combines the sound of a classic 1970s equalizer with a wide range of practical functions
- REV-X reverb
The REV-X built into the AXR4 is a complex reverb algorithm developed by Yamaha
- Sweet Spot Morphing Channel Strip
The Sweet Spot Morphing Channel Strip consists of a sidechain-enabled compressor and a three-band
General
- Connection Type: USB Type-C
- Design: 19‘‘ rack unit, 1 HU
- Casing: Full-metal casing
- Power supply: External 24 V AC adaptor (Yamaha PA-700)
Specification
- AD/DA: 32 bit
- Maximum sample rate: 384 kHz
- Dynamic range input: 119 [dB]
- Jitter reduction: SSPLL

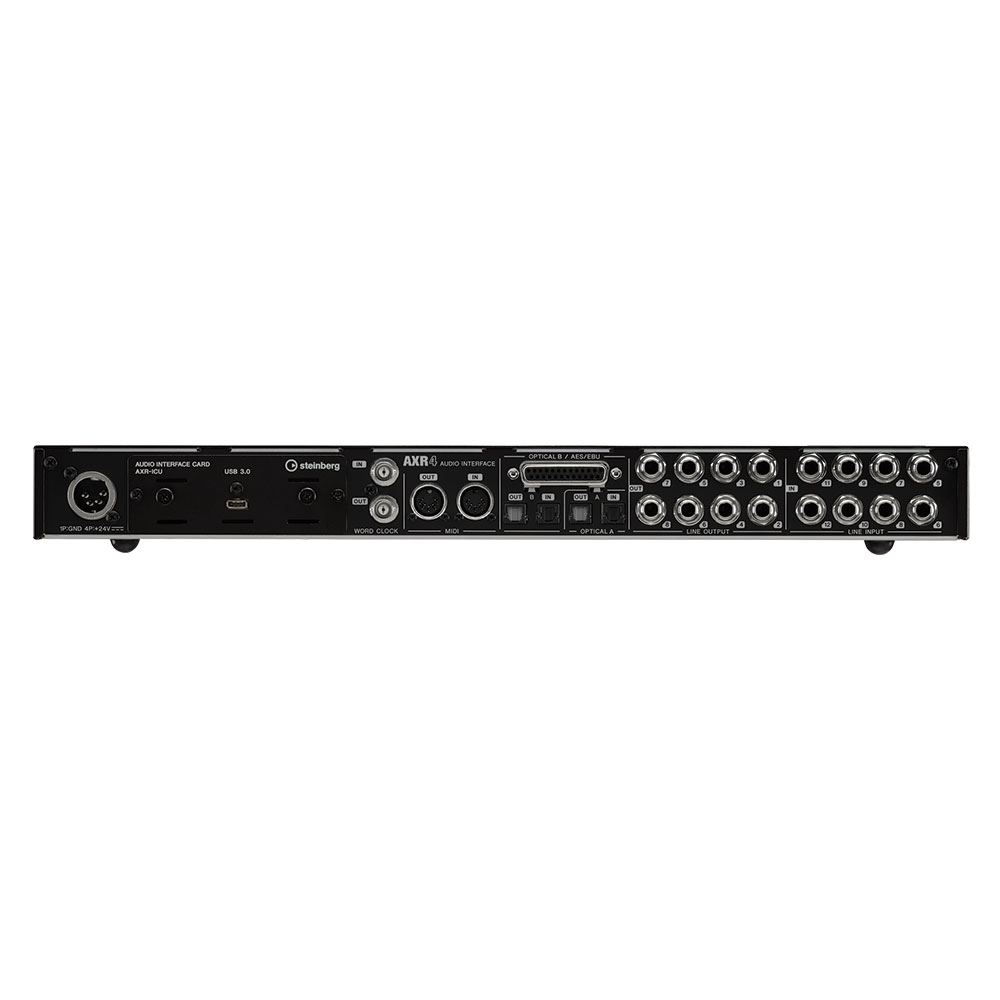

Connectivity
- Total number of inputs: 28
- Total number of indiviudal outputs: 24
- Total number of Outputs: 24
- Microphone preamp: AXR Hybrid Pre with RND Silk
- Microphone inputs: 4
- Inputs with line level: 10
- Inputs with HI-Z: 2
- Analog inputs TRS: 8
- Analog inputs Combo: 4
- Analog outputs TRS: 8
- Phantom power: 4
- Headphone: With dedicated volume control
- Headphones outputs: 2
- Digital In ADAT: 2
- Digital Out ADAT: 2
- Digital In S/PDIF Optical: 2
- Digital In AES/EBU RS422: 1
- Digital Out S/PDIF Optical: 2
- Digital Out AES/EBU RS422: 1
- WordClock I/O: Yes
- MIDI I/O: Yes
DSP-features
- Monitoring: Latency free monitoring with FX
- Onboard DSP: DSPX
- True Integrated Monitoring with FX in Cubase
- High-Pass filter
- REV-X Reverb
- Sweet Spot Morphing Channel Strip
- Yamaha Compressor 276
- Yamaha EQ601
Dimensions
- Weight: 4600 g
- Width: 480 mm
- Height: 45 mm
- Depth: 378 mm
System requirements
- Operating systems (Mac): macOS Mojave, macOS High Sierra,
- macOS Catalina
- Operating systems (Windows): Windows 10 (64-bit)
- Port: USB Type-C, USB 3.0
- CPU minimum: 64-bit Intel
- RAM minimum: 4 GB
- Hard disk free space: 15 GB
- Display resolution minimum: 1440 x 900
- Internet connection for: manuals and instructions, account sign up and product registration, driver and tools
- A USB Type-C to USB Type-A (USB 3.1 Gen1) cable is included
