LD Systems Stinger 12 G3 Active Full-Range Speaker

Availability:Out of stock

dividebuy-logoCheck your eligibility

Fast check - won't affect your credit rating.

Seen it cheaper? We aim to match authorised UK dealers

Quick overview

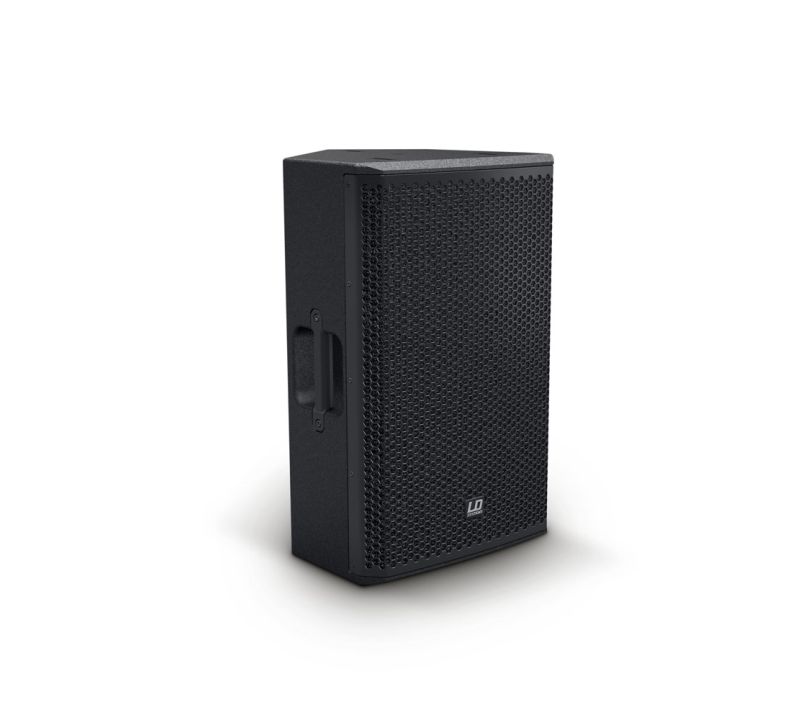

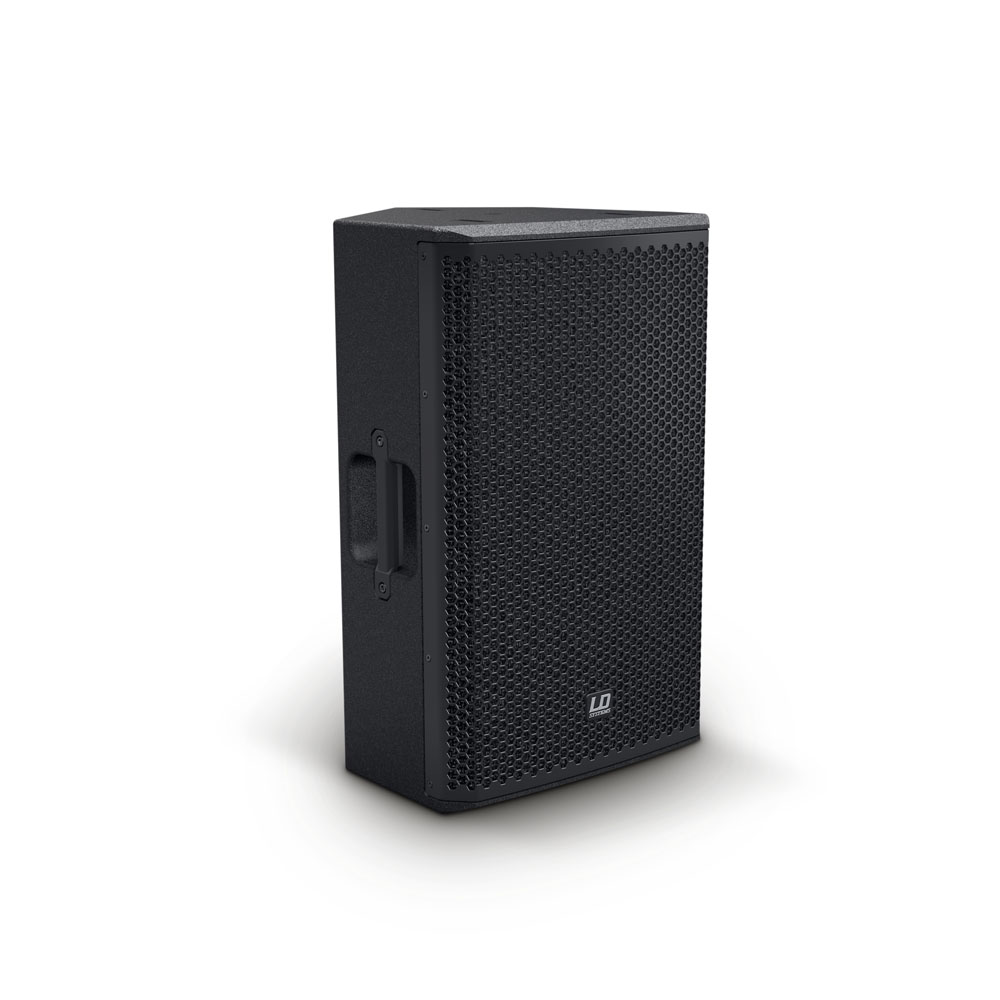

The LD Systems Stinger 12A G3 is an active 2-way bass reflex 12-inch speaker that features a powerful DSP and a 500 watt Class D amplifier.

  • See full product description

The LD Systems Stinger 12A G3 is an active 2-way bass reflex PA speaker that has been designed with rock solid reliability as a core foundation in the engineering process. The multi-purpose bass reflex construction and the carefully contoured user-friendly DSP presets are suitable for full-range satellite or floor monitor speaker applications.

The Stinger 12A G3 is driven by a highly efficient Class D amplifier that outputs a massive 500 watts of RMS power and uses a custom-designed 12-inch woofer and BMS compression driver to produce the extended low-frequency response and natural, crisp high-frequencies. The HF waveguide has been designed with BEM, a numerical modelling of sound radiation and propagation, this helps reduce ceiling and floor reflections and eliminates side lobes for a controlled uniform coverage pattern.

The Stinger 12A G3 integrates LD System’s DynX DSP technology to provide you with a high-grade performance that has maximum clarity and punch at all times. The processing includes crossover and multi-band limiter functions which give you accurate time alignment and clear, distortion-free audio.

This speaker comes in an ultra-tough enclosure made from rigid birch plywood and coated in polyurea which gives it extraordinary strength and durability. The Stinger 12A G3 features a steel front grille, a dual-tilt pole receptacle, multiple suspension points and ergonomic carry handles for ease of transport. This speaker is an attractive, wallet-friendly speaker for professional sound situations.

  • Product type: PA loudspeaker
  • Type: Active
  • Low/mid driver dimensions: 12"
  • Woofer size: 304.8mm
  • Woofer magnet: Ferrite
  • Woofer brand: Custom-made
  • Woofer voice coil: 2.5"
  • Woofer voice coil (mm): 63.5mm
  • Horn: BEM optimized CD Horn
  • HF driver dimensions: 1"
  • HF driver dimensions (mm): 25.4mm
  • HF driver magnet: Ferrite
  • HF driver brand: BMS
  • HF driver voice coil: 1"
  • HF driver voice coil (mm): 25.4mm
  • Amplifier: Class D
  • Dispersion (H x V): 90 x 50°
  • RMS: 500W
  • Peak power: 1000W
  • Frequency response: 58 - 20000Hz
  • Max. SPL (peak): 131dB
  • Protection circuits: Thermal overload, over voltage, over-current, Multiband limiter
  • Input sensitivity: -5dBu
  • Controls: Mode, 2 x gain, 2 x Mic/Line
  • Indicators: Protect (protection circuit engaged), On, Signal, Limit, Mic, mode
  • Line inputs: 2
  • Line input connectors: XLR, 6.3 mm jack
  • Line outputs: 1
  • Line output connectors: XLR
  • Operating voltage: 100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching)
  • Operating Temperature: 0 - 40°C
  • Relative humidity: < 80% (non-condensing)
  • Cabinet material: 15 mm Plywood
  • Cabinet surface: Polyurea
  • Cabinet construction: Vented
  • Monitor angle: 54°
  • Width: 390mm
  • Height: 627mm
  • Depth: 377mm
  • Weight: 20.6kg
