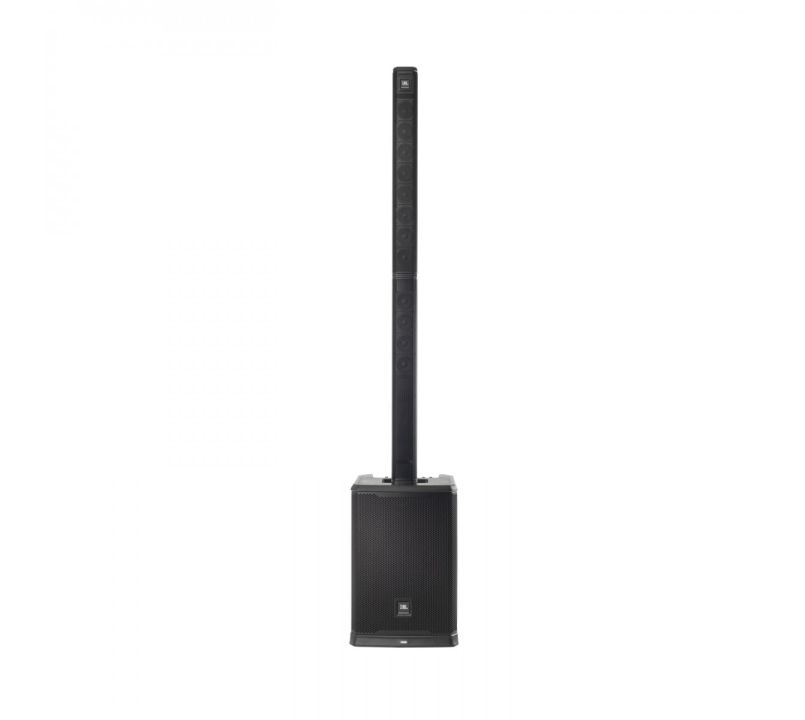

JBL PRX ONE All-in-One Portable PA System and Pro Connect Control App

Availability: In stock
SKU
JBL1939
£1,755.00

dividebuy-logoCheck your eligibility

Fast check - won't affect your credit rating.

Seen it cheaper? We aim to match authorised UK dealers

Quick overview

The JBL PRX ONE is a column-style portable PA speaker with an acoustically optimised driver array, digital mixer, pro DSP, Bluetooth® connectivity, and universal app management.

  • See full product description

The JBL PRX ONE is a column-style portable PA speaker with an acoustically optimised driver array, digital mixer, pro DSP, Bluetooth® connectivity, and universal app management.

PRX ONE is designed to satisfy the demands of a wide range of portable and fixed applications, offering unrivalled power, acoustic performance, and functionality in a sleek, small device weighing just 56 pounds. Thanks to its custom-engineered 12-tweeter column array with JBL A.I.M. (Array Inumbration Mechanics) acoustic design, 12-inch bass-reflex woofer, and built-in 2,000-watt (peak) Class D amplifier, the system delivers a stunning 130 dB of comprehensive, full-bandwidth coverage with a consistent front-to-back throw.

With PRX ONE's full suite of professional-grade Lexicon and dbx processors and eight customizable presets, performers of any skill level can quickly dial in outstanding sound. Reverb, 8-band EQ, delay, compression, limiting, ducking, echo, sub synth, and dbx DriveRack are among the built-in effects. Inside, AFS Pro Automatic Feedback Suppression is used, and Triple Tier DSP control provides multi-level user experiences dependent on expertise level.

PRX ONE's Soundcraft-designed 7-channel, the dual-mode digital mixer may be programmed to operate either general mix operations or channel-strip capabilities, all controlled through a built-in colour LCD or the new JBL Pro Control universal app, allowing creatives to work quicker and more efficiently.

The PRX ONE's full-colour LCD screen gives you complete control over all operations, and a handy Setup Saver lets you save pictures for later recall. Simple Success dynamic LED metering allows users to quickly and easily check levels as well as professional channel features like mute and clipping.

Better Performance & JBL Pro Connect

Copper-capped pole pieces on custom-designed high-frequency transducers minimise inductance for a smoother, more accurate response; transducers have less power compression, allowing for more natural performance without the use of heavy DSP. The woofer's high-frequency performance has been optimised down to 500 Hz, providing for a more realistic, accurate bass sound. Without the use of DSP, the PRX ONE's acoustically optimised woofer offers better performance down to 35 Hz.

From mixing to DSP to Bluetooth features, the new JBL Pro Connect universal app gives you complete control over your PRX ONE. Adjust levels from any location in the room, stream music to numerous speakers, and more; the app and the mixer are always in sync, removing the need for guessing when it comes to levels and settings. Users may use features like speaker grouping, delay tap tempo, and entire speaker captures that are only available in the app.

Everyone Sounds Great

Brandon Knudsen, who is the JBL Product Manager, Loudspeaker Professional Solutions, says, "Whether you're a singer/songwriter, DJ, corporate presenter, or instructor, sounding great is important." “Acoustic performance was at the top of JBL's agenda when we started out to create a new compact column PA. At the same time, we all recognise that each circumstance is distinct. We've loaded the PRX ONE with a feature set that we think will appeal to a wide spectrum of performers: DJs will like the system's extensive DSP and I/O set, while singer/songwriters will appreciate the ability to drive the system hard and get that deep bass they want. Presenters and instructors will also enjoy the system's small, unobtrusive profile and presets, which will quickly have them sounding their best. No matter where they play, everyone will be ecstatic to leave their outboard gear at home and lessen their load.”

Connections

PRX ONE allows artists to expand their system: An XLR Thru output provides real analogue expansion with the ability to time-align multiple speakers with up to 100 ms of delay per speaker, and Bluetooth 5.0 connectivity allows remote control of up to 10 units via the JBL Pro Connect application. For permanent installations, an extra bracket and adaptor allow the array to be wall or truss mounted independently of the subwoofer. The PRX ONE's computer-modelled ComfortGrip handle and nylon carry pouch make transportation effortless.

PRX ONE's flexible I/O set includes four pro-grade Neutrik XLR Combo jacks, two channels of dedicated phantom power, dedicated Hi-Z input, and two USB 2.0 connections for powering external devices and AKG wireless systems.

PRX One Won't Let You Down

Every PRX ONE goes through 100 hours of stress testing to guarantee it works perfectly in real-world situations. The system is encased in a tough casing that's tough enough for the toughest jobs yet subtle enough to blend in with any presenting setting.

  • 12 2.5-inch array tweeters provide a steady and balanced frequency response that fills the space.
  • Tweeters are made of copper-capped pole pieces, which reduce distortion and produce a smooth, balanced sound.
  • JBL A.I.M (array inumbration mechanics) technology provides for front-to-back coverage thanks to geometrically optimised array architecture!
  • Large stereo spread with a horizontal angle of 130 degrees and a vertical angle of 30 degrees.
  • A natural and smooth bottom end is achieved by expertly engineered crossover control and HF/LF coupling, resulting in a balanced response throughout the full frequency range.
  • A 12-inch bass woofer with a custom design delivers an extended low-end response down to 35Hz.
  • A Class-D amplifier with meticulous design offers clean and effective amplification up to 2,000 watts peak and 1,000 RMS.
  • THD is near-zero and there is a lot of headroom.
  • Four low-noise microphone preamps ensure precise and clear sound reproduction.
  • SPL tolerance is quite high, with a maximum of 130dB.
  • A seven-channel digital mixer with full DSP control is built-in.
  • Dual-operating mixer mode allows you to operate faders and individual channels independently.
  • Lexicon effects engine includes delay, reverb, chorus, echo, and sub synth in studio quality.
  • DSP control on three levels provides intuitive control based on the user's expertise and understanding.
  • Automatic feedback suppression, an eight-band master EQ, a limiter, and dynamics control over gates and compressors per channel are all elements of dbx DriveRack technology.
  • One-touch ducking guarantees that your voice is always heard over any background music.
  • All PRX ONE features are easily accessible thanks to the high-resolution LCD colour display.
  • For easy remembering of settings, there are eight user presets.
  • A plethora of connection choices are available.
  • Two USB 2.0 connections are available for charging gadgets and powering AKG wireless systems (Additional JBL adapter needed)
  • Two microphone inputs have +48V Phantom power.
  • With Bluetooth 5.0 connection, the JBL Pro Connect App can control up to ten units.
  • Construction is rugged and sturdy, making it ideal for the rigours of the road.
  • For simple carrying, a comfortable grip is provided.
  • The array speakers come with a nylon travel bag.
  • Woofer Size: 12"
  • Tweeter Size: 2.5"
  • Tweeter Count: 12
  • Max SPL: 130dB
  • Freq Range: -10dB 35-20kHz / -3dB 40-20kHz
  • Horizontal Dispersion: 130 degrees
  • Vertical Dispersion: 30 degrees
  • Power Rating: 2000W Peak / 1000W RMS
  • AC Power Input: 300W 100-230V AC 50-60Hz
  • Input Impedence:
    • 4Kohm balanced Combo
    • 2Mohm balanced Hi-Z Jack
    • 10Kohm 3.5mm single ended 2 channel
  • Crossover Frequency: 260Hz
  • Inputs and outputs:
    • Four x XLR/1/4” Combo Jacks
    • Two x 1/4"" Hi-Z
    • One x 1/8""/BT Summed"
    • One x XLR Pass Through
  • Weight: 25.7kg
  • Dimensions (H x W x D): 2042mm x 375mm x 446mm
  • Product code: PRX ONE/230
