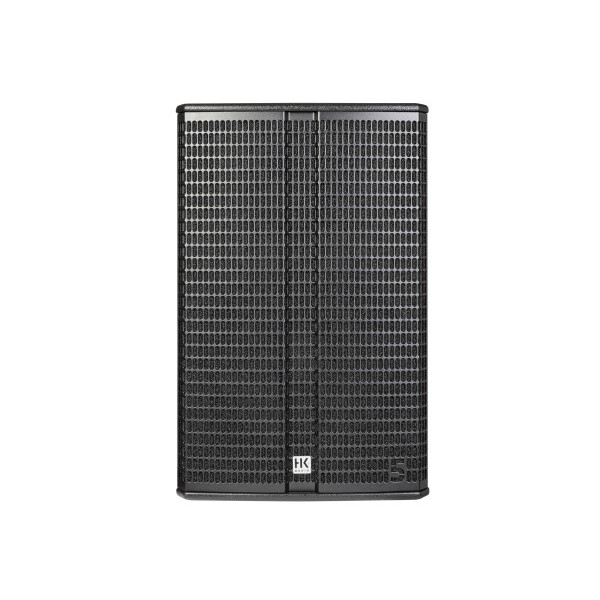

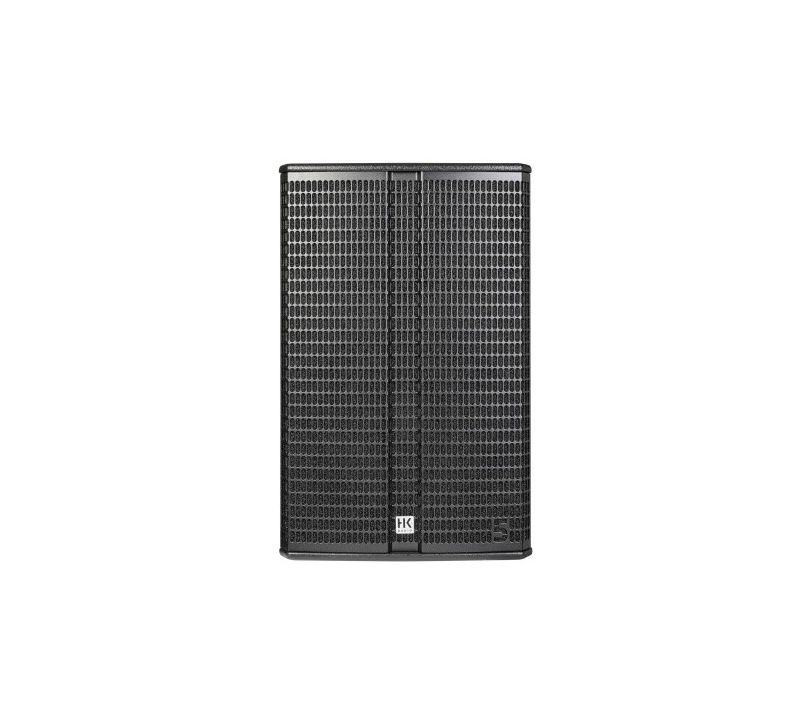

HK Audio Linear 5 MKII 115 FA Active 15-Inch Loudspeaker
In-stock with brand - Estimated delivery 7-10 days
SKU
1008076-1
£1,278.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
The HK Audio Linear 5 MKII 115 FA is an active loudspeaker that is fitted with a 15-inch low-frequency woofer and tweeter as well as a 1.7-inch voice coil, and a Class D amplifier that works effortlessly to deliver a massive sound pressure level and broad frequency response.
- See full product description
- Buy 2 for £1,258.00 each and save 2%
The HK Audio LINEAR 5 MK II 115 FA is the most powerful full-range mid/high unit in the range which also boasts the strongest bass response. It blends robust bass output with a clear and aggressive tone. Its long horn allows for extended throw distances and aids clustering. A remote-controllable DSP with four easily selectable settings offers the highest usable sound pressure without distortion. The DSP Out feature allows the separately processed input signal to be sent to an additional, non-network-compatible speaker. The LINEAR 5 MK II 115 FA's robust birch multiplex hybrid enclosure and adaptable accessories make it an excellent choice for DJs, bands and sound technicians, whether as a powerful full-range solution or in conjunction with matching subwoofers.
- Full-range mid/high unit with more power in the bass range
- Remote-controllable high-performance DSP with integrated presets for the most common applications: Flat, Boost, Low Cut, Remote
- DSP Out: balanced XLR output that transmits the processed signal from the speaker to a non-network-compatible speaker.
- Lockable EtherCon connector
- Balanced XLR/TRS Combo input, balanced XLR output for analogue looping to an additional speaker
- 15" woofer and a tweeter with 1.7" voice coil
- 1200 W peak power bi-amped Class-D power amplifier
- Rotatable horn, 60° x 40° dispersion pattern
- HK Audio DuoTilt with 3° or 7° inclination
- Three reinforced M8 (AP-8) fixing points
- Hybrid enclosure (birch multiplex/MDF)
- Two HK Audio MultiGrips for optimal handling, allowing for installation of optional TB-45N or TB-45NQ tilt brackets
- Lockable V-Lock mains cable
- 5-year manufacturer warranty after registration
- Made in Germany
- Max SPL @ 10% THD: 130 dB half space (70Hz - 12kHz averaged)
- Max SPL peak @ 10% THD: 138 dB half space
- Frequency response +/-3 dB: 57 Hz - 12 kHz
- Frequency response -10 dB: 54 Hz - 19 kHz
- Power amp output (RMS/Peak): 600 / 1200 W
- Amplifier type: Class D - Biamped
- Low/Mid Speaker: 1 x 15", 3" voice coil
- HF Driver: 1", 1.7" voice coil
- Horn characteristics: 60°- 40° CD horn, rotatable
- Active x-over frequency: 1.6 kHz FIR X-over with 72 dB/oct.
- Maximum input level: 20 dBu
- Analogue inputs: 1 x XLR combo balanced
- Analogue Thru: 1 x XLR balanced
- DSP Out: 1 x XLR balanced
- Network port: EtherCON RJ45, 1 x In
- Filter presets: Flat, Boost, Low Cut, Remote
- Remote software: DSP CONTROL (Windows, Mac OS)
- DSP functions: Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
- Sample rate: 48 kHz
- System latency: Less than 2 ms
- Mains connection: 1 x IEC connector with V-Lock securing system, 100-240V
- Power Consumption: 1 A / 100-240 V nominal according to EN 62368-1
- Ploe mount: DuoTilt 3°/7°
- Rigging points: 3 x M8 (AP-8)
- Carrying Handles: 2 x MultiGrip
- Housing: Hybrid (birch multiplex/MDF)
- Surface: Black acrylic enamel
- Front grille: 2 mm metal grille backed with black acoustic foam
- Dimensions (WxHxD cm): 44.8 x 70.7 x 44.75
- Weight: 30.2 Kg / 66.47 lbs
