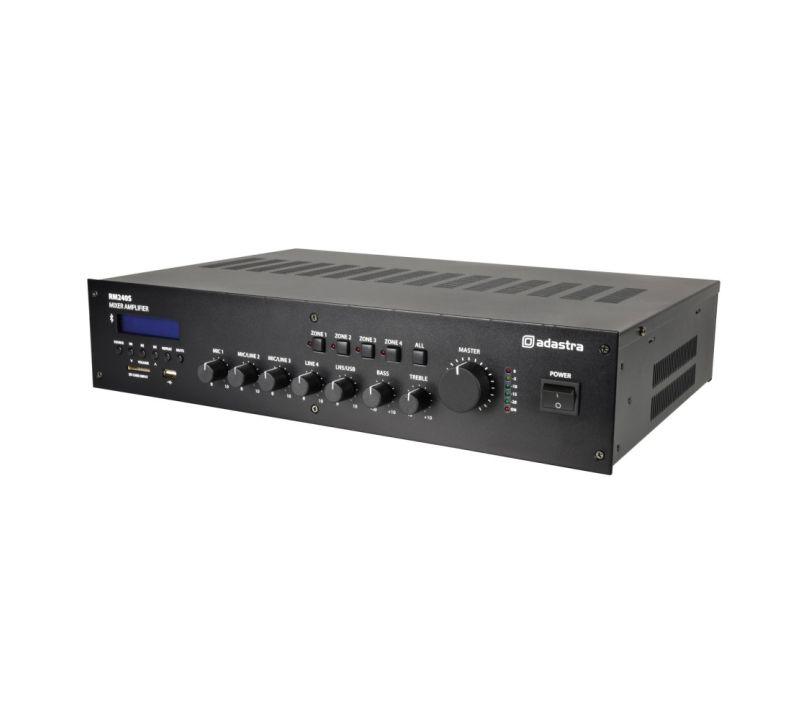

QTX RM SERIES 5 CHANNEL 100V LINE MIXER AMPLIFIERS RM240S
Availability:Out of stock
SKU
953.215UK
£319.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
This product is no longer available - please click here to view similar products.
100V line amplifiers with an integral mixer in a 2U rack-mountable housing. Featuring 5 input channels, Bass & Treble EQ and Master volume control. Generous features and versatility make the RM240S a comprehensive control centre for commercial sound installations.
- 2U 19" rack mountable (rack ears supplied)
- XLR input with switchable +20V phantom power
- 2 x mic/line inputs, 2 x RCA line inputs, and 1 x RCA line output
- Switchable ‘voiceover’ feature
- Inbuilt media player
- See full product description
100V line amplifiers with an integral mixer in a 2U rack-mountable housing. Featuring 5 input channels which include a balanced XLR microphone input with switchable phantom power and Vox override, 2 mic/line jack inputs and 2 RCA line inputs, of which one can be fed from the internal USB/SD card audio player. Bass & Treble EQ and Master volume control the overall output, which can power either low impedance or 100V line speakers. Generous features and versatility making a comprehensive control centre for commercial sound installations.
- 2U 19" rack mountable (rack ears supplied)
- XLR input with switchable +20V phantom power – ideal for condenser microphones and paging microphones with chimes
- 2 x mic/line inputs, 2 x RCA line inputs, and 1 x RCA line output
- Switchable ‘voiceover’ feature
- Inbuilt media player with SD, USB and Bluetooth inputs and integrated FM radio tuner
- 100V line or 8 ohm speaker output
- 24V emergency mute contacts
- Option for mains or 24Vdc power
- Editable Bluetooth ID for unique pairing
- Mains power: 110/240Vac, 50/60Hz (IEC)
- DC power: 24Vdc (screw terminals)
- Inputs: Mic XLR, 2 x mic/line jack, 2 x RCA line
- Input sensitivity: mic 1 (balanced)-53dBV
- Input impedance: mic 15k Ohms
- Input sensitivity: line (unbalanced)-15dBV (-18.5dBV line 5)
- Input impedance: inputs 2-51k Ohms
- Line output: RCA
- Controls: Mic1, mic/line2+3, line4+5, bass, treble, master volume
- Equalizer: bass100Hz ±10dB
- Equalizer: treble10kHz ±10dB
- Rear panel switches: Phantom, Vox, Mic/Line (2 + 3)
- Phantom power: +20V (mic 1 input)
- Audio source: USB/SD player, FM tuner and Bluetooth receiver
- Emergency control: 24V contacts - mute all except Mic.1 when triggered
- Bluetooth version: 5.0
- THD: <1.0%
