QTX CM-SERIES COMPACT 100V LINE MIXER-AMPLIFIERS 30W
Availability:Out of stock
SKU
QTX CM-SERIES COMPACT 100V LINE MIXER-AMPLIFIERS 30W
£85.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
This product is no longer available - please click here to view similar products.

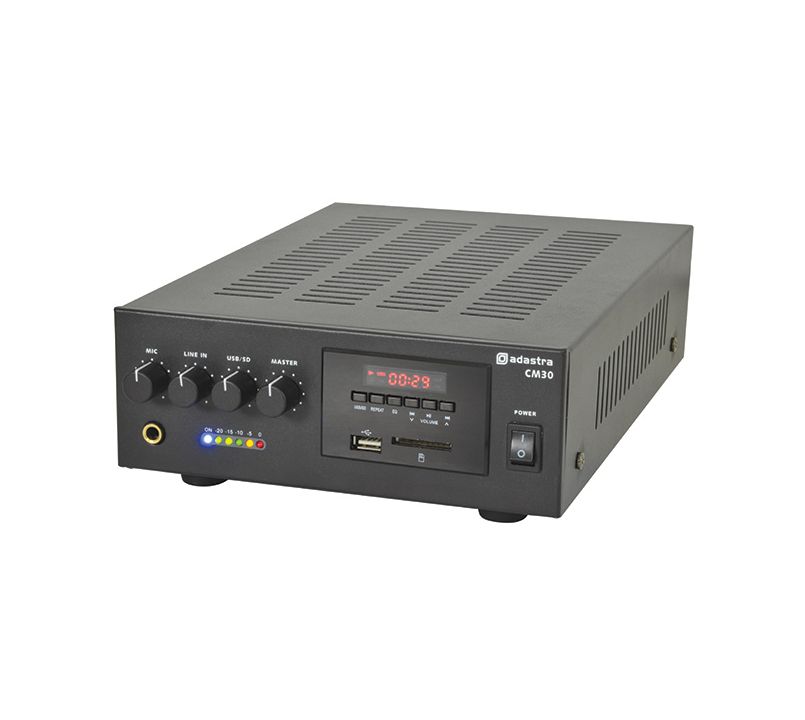

100V line amplifiers with an integral mixer and digital audio player in a half width 2U housing. Inputs for microphone, line input and USB/SD player are governed by front panel volume controls and a master volume. Mono output to either 100V line or 8 ohms speaker load is connected via screw terminals on the rear panel. Designed as a convenient solution for small to medium PA installations.
- See full product description
CM-SERIES COMPACT 100V LINE MIXER-AMPLIFIERS
100V line amplifiers with an integral mixer and digital audio player in a half width 2U housing. Inputs for microphone, line input and USB/SD player are governed by front panel volume controls and a master volume. Mono output to either 100V line or 8 ohms speaker load is connected via screw terminals on the rear panel. Designed as a convenient solution for small to medium PA installations.
- Microphone & line inputs
- Integral USB and SD card player
- 100V line or 8 ohms operation
| Power | 30W |
|---|---|
| Frequency response : Line | 91Hz - 38kHz |
| Frequency response : Mic | 93Hz - 16.3kHz |
| Mic inputs | 6.3mm Jack |
| Input impedance : Mic | 1.8k ohms |
| Input sensitivity : Line | -8dB |
| Input sensitivity : Mic | -47.5dB |
| Output power | 30Wrms |
| Signal to noise ratio : Line | 79dB |
| Signal to noise ratio : Mic | 73dB |
| Max. attenuation: Line | 73dB |
| Max. attenuation: Mic | 78.5dB |
| Weight | 3.76kg |
