The Wedge WD10A from Proel provides users with unbeaten clarity and performance for live applications.
- See full product description

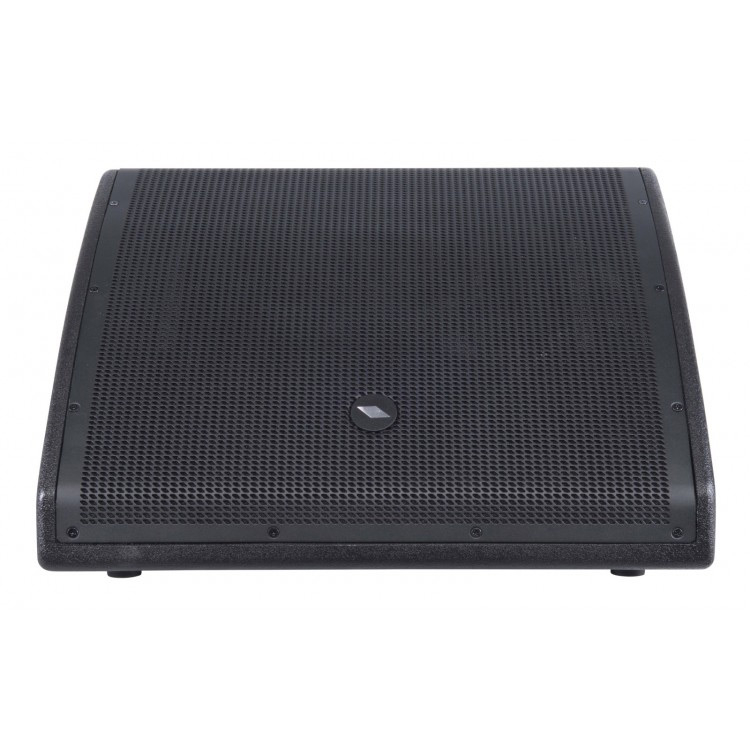

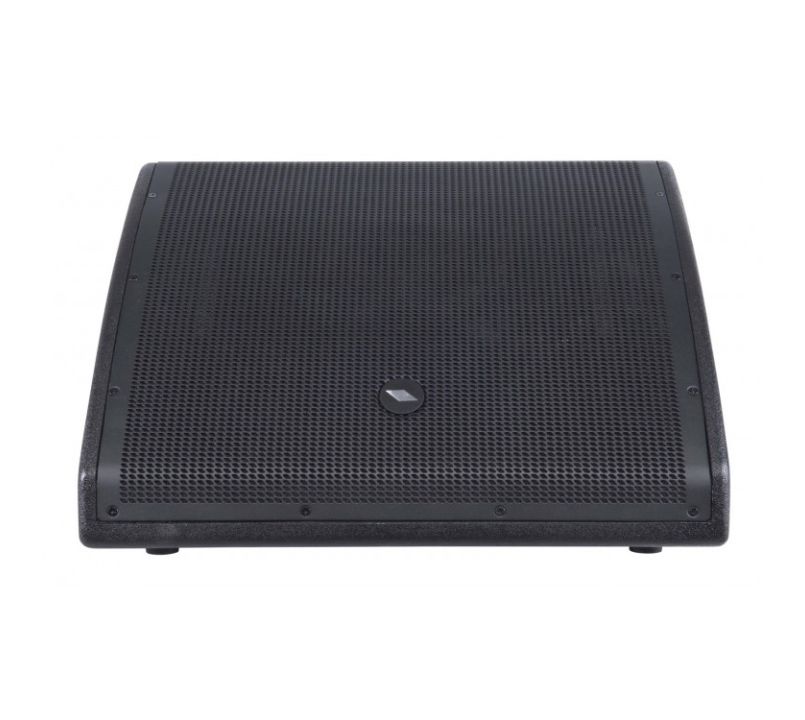

The Proel WEDGE WD10A is an active stage monitor designed to offer a professional sound for a wide range of performance uses. Being able to be integrated into any stage setup, these provide users with a lightweight and portable solution that deliver pristine sound even at higher sound pressure levels.
The WD10A is engineered with Proel's state of the art coaxial transducers which provide pristine alignment of low and high frequencies from any listener position. The lightweight Class D amp modules come with switched-power mode supply technology which when paired with the impressive analogue processing, produces a balanced and accurate signal reproduction. Additionally, the monitor comes with two EQ presets that are available for instant tailoring to your environment. The horn-loaded HF section of the speaker is responsible for producing a crystal-clear signal on the high-frequency spectrum - perfect for big environments.
The intelligent design of the cabinet has been created so that you can transport the speaker with minimal effort. Also ensuring that the electronics inside are protected for high-pressure environments.
- 1” neodymium compression driver with 1” VC
- 10” woofer with 2” VC
- 500 W total peak power
- 50 W continuous class AB amplifier for the high frequencies
- 250 W continuous class D amplifier for the low frequencies
- Switch Mode Power Supply (SMPS)
- Dual LIMITER circuit
- 2 optimized EQ PRESETS for MONITOR or FOH (Front-Of-House) use
- SPL MAX: 123dB
- Frequency response: 60 Hz - 20 kHz
- Lightweight plywood cabinet with black anti-scratch polyurethane paint
- Reinforced metal grille with foam protection
- Recessed connection panel for added protection
- Two recessed handles for easy transport
- Pole adapter
| Proel Sound Systems |
- System type: 2-way coaxial vented
- Low Frequency Device: 10” woofer with 2"VC
- High Frequency Device: 1” neo compression driver with 1"VC
- Angular Coverage: 80°
- Frequency Response: 60 Hz - 20 kHz
- Max SPL at 1mt (peak): 123 dB
- Amplifier Continuous Power: HF: 50 W CLASS AB & LF: 200W CLASS D with SMPS
- Input Impedance: 30 kohm balanced / 15 kohm unbalanced
- Input sensitivity: 0 dBu
- Controls: LEVEL, PRESET selector (MONITOR, FOH), GND lift
- Connectors: INPUT: COMBO (XLR-F/JACK) - LINK: XLR-M
- Power Supply: 230 VAC or 120 VAC 50/60 Hz
- Maximum Consumption: 315 W
- Rated Consumption*: 165 W
- Construction: Plywood with black anti-scratch polyurethane paint
- Pole adapter: 1 x side
- Handles: 2 x sides
- Monitor Taper: 36°
- Weight: 11 kg (24,25 lb)
- Dimensions (W x H x D): 480x300x420 mm
