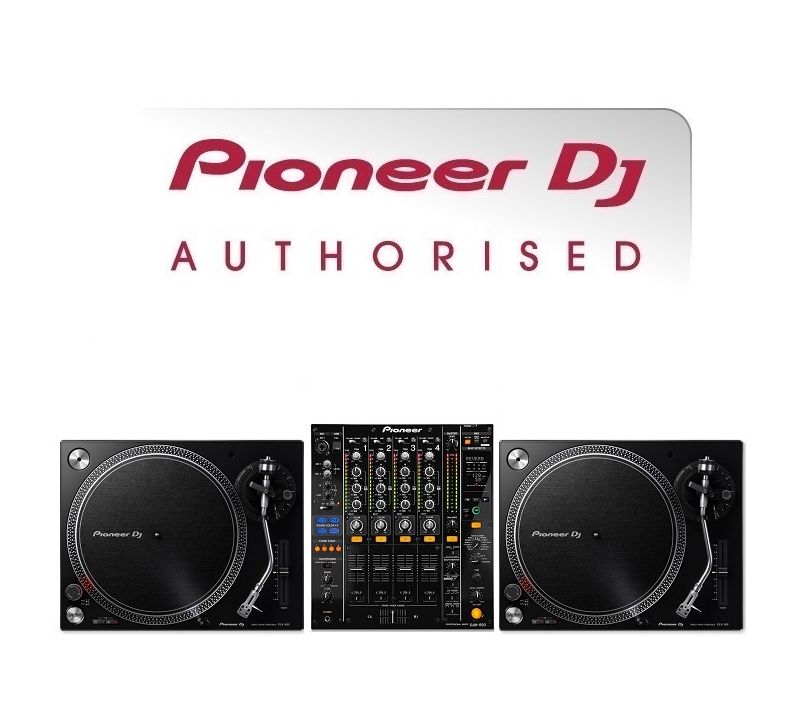

Pioneer PLX-500 Turntable and DJM-850 DJ Equipment Package (Archived)

PLX-500 specifications

Power requirements： AC 100 V, 50 Hz/60 Hz
Power consumption ： 11 W
Main unit weight ：10.7 kg
Max. dimensions (WxHxD) ：450 mm x 159 mm x 368 mm
Output ：RCA × 1, USB (type B)

Turntable

Drive method：Servo type direct drive
Motor：3-phase brushless DC motor
Braking system：Electronic brake
Rotation speed：33 1/3 rpm, 45 rpm, 78 rpm
Rotation speed adjustment range ：±8%
Wow and flutter ： 0.15% or less WRMS
S/N ratio： 50 dB or above
Turntable： Aluminium die-casting Diameter: 332 mm
Starting torque ： 1.6 kgf・cm or more
Start time： Within 1 second (at 33 1/3 rpm)

Tone arm

Arm type： Universal type S-shape tone arm, gimbal-supported type bearing structure, static balance type
Effective length： 230.5 mm
Overhang： 16 mm
Tracking error： Within 3°
Arm height adjustment range： 6 mm
Stylus pressure variable range： 0 g to 4.0 g（1 scale 0.1 g）
Proper cartridge weight ： 9.5g or less (single cartridge)

Cartridge

Cartridge type： VM type

Included accessories

Slip mat, Dust cover with jacket stand, Adapter for EP record, Balance weight, Headshell (with
cartridge), Shell weight, Power cord, USB cord, Audio conversion cord（Stereo pin plug (female) –
Stereo mini plug（male)), Operating instructions

Headshell specifications

Weight：10.0g
Shell length：52 mm
Finger Length：21mm
