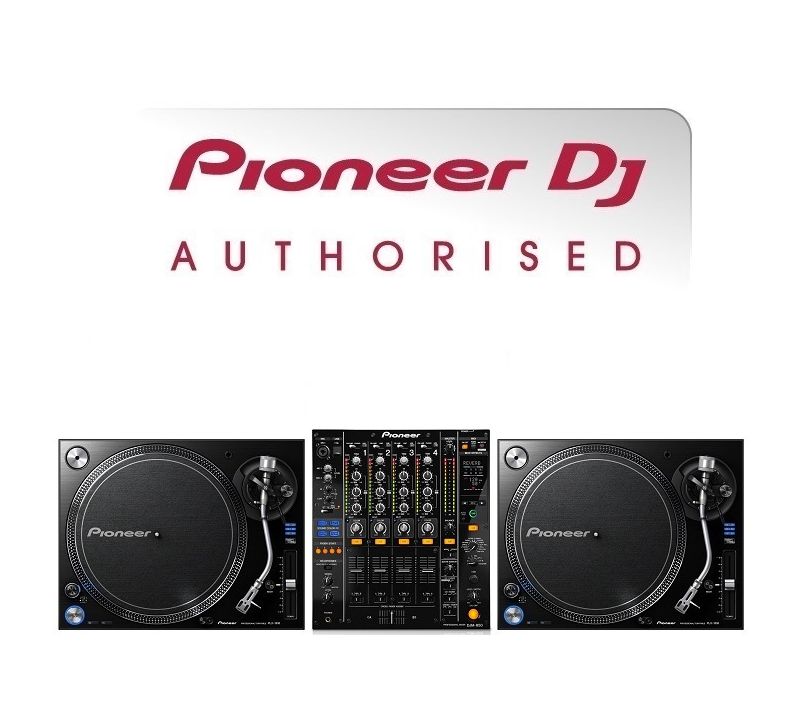

Pioneer PLX-1000 Turntable and DJM-850 Mixer Package (Archived)
Availability:Out of stock
SKU
PLX-1000 Turntable and DJM-850 Mixer Package
£2,414.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
This item is no longer available. Please click here to see our range of Pioneer DJ Turntable Packages.
- See full product description
This item is no longer available. Please click here to see our range of Pioneer DJ Turntable Packages.
KEY FEATURES OF THE PLX-1000:
- High-torque direct drive (33⅓ rpm in 0.3 seconds)
- Classic DJ turntable layout
- Removable power, ground and phone cables
- S-shaped tone arm
- Multiple tempo control options: ±8%, ±16% and ±50%
- Tempo reset button
- Solid build for excellent vibration damping
- Professional-grade gold-plated RCA jacks
- Rubber-lined tone arm to improve isolation and prevent feedback
Pioneer DJM-850 Main Highlights:
The mixers components are encased in a strong outer shell. There are Pioneer P-Lock Fader Caps that stop the faders from coming off during heavy use.
Pioneering Beat Colour Effect
Sidechaining has now been added to the DJM-850s Colour Effects continuing with the simplicity of its use. By the use of a button (beat button) the Beat Colour Effect is triggered. Beat Colour Effect essentially ‘listens’ to the sound in to each channel and then links the change in volume to other settings. For example beat repeat for Cutter, resonance for Filter and Crush and ducking volume for Noise Effect. This level of control is becoming increasing popular within music production due to the effect it has on combining new sounds and effects into a mix.
FX Boost within Beat Effects
The DJM-850 has 13 improved Beat Effects with a new addition in the form of the Up Echo. From the DJM-900 nexus the mixer has inherited the Spiral Effect and enhanced the FX Boost function. This allows the Level/Depth dial to work more definitively than the standard Wet/Dry Control. When the dial is turned to the 12 o’clock marker the fully wet effect is applied. When the dial is turned further, High-Pass Filter to the Reverb and Pitch Up to Up Echo are applied.
Four stereo channel soundcard
Built-in to the mixer is a top-performance soundcard which enables synchronised input/output with 24-bit/96kHz processing. This ensures the sound quality is at its highest even when travelling through the unit.
The DJM-850 can be used for Djing and music production making it a highly versatile and affordable unit. This is due to the inclusion of three sampling rates – 96kHz, 48kHz and 44.1kHz.
A simple setup is established as the mixer only requires a one cable (USB) connection. Upon establishing that connection to a PC or laptop a Pioneer utility tool launches allowing the user to change settings for the soundcard, mixer and audio routing. Scratch control can also be used as the mixer is compatible with the Timecode feature found in Digital Vinyl System (DVS) e.g Traktor.
EQ isolator
Each individual channel has a three-band equalizer (+6 dB to -26 dB) or three-band isolator (+6 dB to -∞dB). The isolator has been mirrored from the DJM-1000 where the equalizer rages from -26 kill to complete kill.
Layout design and sound quality
The DJM-850 layout blueprints the easy-to-use and familiar layout of the Pioneer’s club-standard mixers. The sound components included within the casing of the mixer make sure that the sound output is at its very best. These include a 32-bit digital signal processor, a 32-bit output D/A convertor, an extremely short transmission patch and the separation of the analogue and digital circuitry.
Other features
The mixer is MIDI transferable as the DJM-850 can be used as a MIDI controller. As the USB is positioned at the top it allows for devices to be changed with ease. Conveniently, the unit is smart enough to know that if it hasn’t been used for a period of time then it switches itself into standby mode.
Turntable:
| Drive method | Quartz lock servo type direct drive |
| Motor | 3-phase brushless DC motor |
|---|---|
| Braking system | Electronic brake |
| Rotation speed | 33⅓ rpm, 45 rpm |
| Rotation speed adjustment range | ±8%, ±16%, ±50% |
| Wow and flutter | 0.1% or less WRMS (JIS WTD) |
| S/N ratio | 70 dB (DIN-B) |
| Turntable | Aluminium die-casting diameter: 332 mm |
| Starting torque | 4.5kg·cm or more |
| Start time | 0.3 seconds (at 33⅓ rpm) |
Tone arm:
| Arm type | Universal type S-shape tone arm, gimbal-supported type bearing structure, static balance type |
| Effective length | 230 mm |
|---|---|
| Overhang | 15 mm |
| Tracking error | Within 3 degrees |
| Arm height adjustment range. | 6 mm |
| Stylus pressure variable range | 0 g to 4.0 g (1 scale 0.1 g) |
| Proper cartridge weight | 3.5 g to 13 g (single cartridge) - When shell weight is used: 3.5 g to 6.5 g - When only balance weight is used: 6.0 g to 10 g - When sub weight is used: 9.5 g to 13 g |
Main unit:
| Main unit weight | 13.1 kg |
| Maximum dimensions (W x D x H) |
453 x 353 x 159 mm |
|---|---|
| Output | RCA × 1 |
| Included accessories | Turntable, turntable sheet, slip mat, slip sheet, dust cover, balance weight, head shell, sub weight, head shell, shell weight, adapter for EP record, power cord, Audio cable, ground wire, operating instructions |
Pioneer DJM-850 Mixer Tech-Spec
| Number of channels: | Audio 4-channel, MIC 2-channel | |
| Headphone Monitor Out: | x 1 (top side 1/4-inch Jack) | |
| REC Out: | x 1 (RCA) | |
| Other ports: | Send x 1 (1/4-inch Jack), Return x 1 (1/4-inch Jack) | |
| Digital Out: | x 1 (Coaxial) | |
| Inputs: | CD/Line x 4 (RCA), Line x 2 (RCA), Phono x 2 (RCA), MIC x 2 (XLR and 1/4-inch Jack combined use x 1, 1/4-inch Jack x 1), Outputs: Master Out x 2 (RCA x 1, XLR x 1) | |
| MIDI Out: | x 1 (5P DIN), USB x 1 (top side B port), Control x 4 (Φ 3.5 mm mini-jack) | |
| Sample Rate: | 96 kHz | |
| Booth Out: | x 1 (1/4-inch Jack) | |
| D/A converter: | 32 Bit | |
| A/D converter: | 24 bitFrequency response: 20 Hz - 20 kHzTotal harmonic distortion: Max. 0.004%S/N ratio: Min. 106 dB (Line)Headroom: 19 dB | |
| Maximum external dimensions: | (W x H x D) 320 × 108 x 381 mm | |
| Power use: | AC 220 - 240 V (50 Hz/60 Hz) | |
| Weight: | 7.7 KG |
