Pioneer DJM-TOUR1 Professional DJ Mixer

Availability: Out of stock
SKU
DJM-TOUR1
Special Price £3,999.00

Was: £5,099.00 Save £1,100.00

Seen it cheaper? We aim to match authorised UK dealers

Quick overview

The Pioneer DJM-TOUR1 is now discontinued, please click here to view the best alternative DJ mixers.

  • See full product description

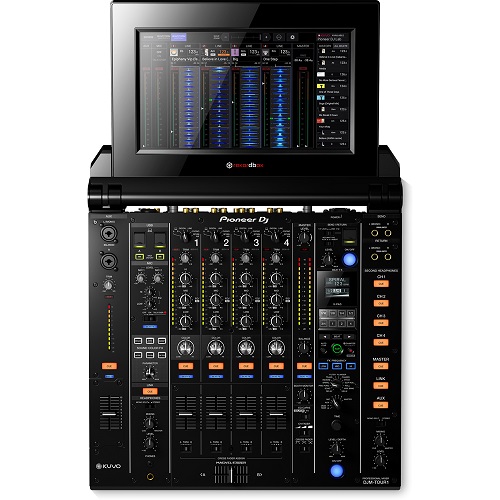

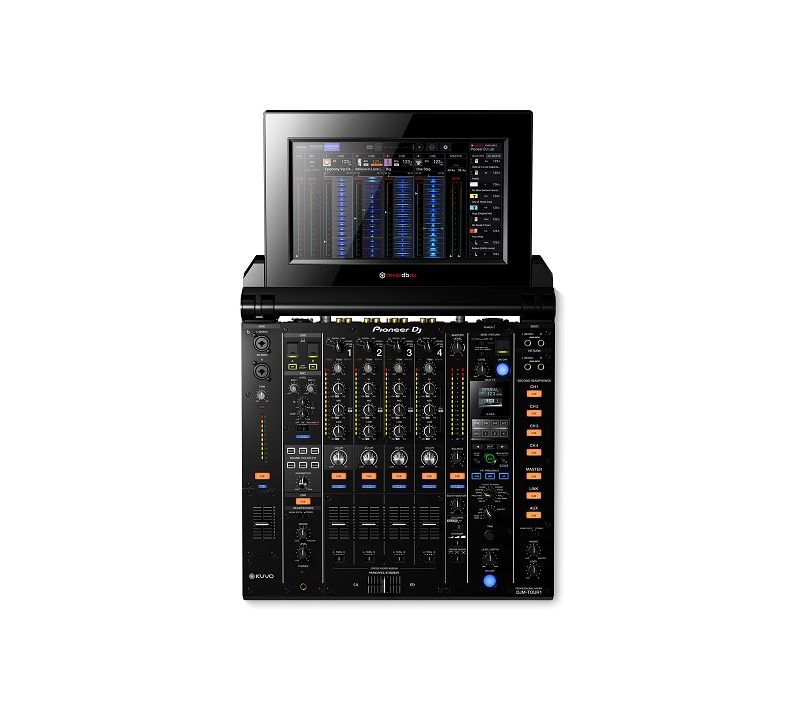

Introducing the Pioneer DJM-TOUR1 Professional DJ Mixer built with world-class audio components for a high-quality sound that will continue to impress you, while never losing sight of the crowd.

The addition of full colour, 13-inch touch screen gives you even greater control over your browsing experience and lets you grab waveforms even faster without losing sight of your audience.

This festival/stadium-ready mixer is built with added components that run perfectly alongside the already professional standard CDJ-2000NXS2 technology so that you can perform at an even higher level in larger venues. The TOUR1 is the first mixer in the world to have an AES/EBU digital output for connection over long distances to front of the house without any loss to audio quality.

Go back-to-back with ease now thanks to two independent headphone inputs so that you can monitor and cue tracks separately.

With a reinforced industrial design, gold-plated RCAs and now lockable LAN ports, the TOUR1 mixer is the most stable Pioneer DJ set-up available, making it perfect for the large-scale environment.

Own the stage, with high-quality sound components

The DJM-TOUR1 is made for the festival environment thanks to the inclusion of AES/EBU digital output technology for lossless quality over long distances, making it the first DJ mixer in the world to contain such technology.

Also a first for Pioneer is the addition of a high-resolution word clock input, ensuring the most accurate synchronisation and highest quality sound. The power supply even has a separate circuit to reduce unwanted noise; meanwhile, power factor correction (PFC) will keep distortion to a minimum.

The mixer now has lower distortion and more dynamic range, up to 129dB, thanks to the new ES90 18 32-bit D/A converter. Just like the CDJ-2000NXS2, the TOUR1 includes a 96kHz/24-bit sound card with direct digital connection for improved dithering technology, 64-bit floating-point mixing processing and a low-jitter clock; with all these features combined, you can guarantee that you are producing the highest quality sound.

See the information with 13-inch fold-out touch screen

Now with the addition of fold-out touch screen, you can now search and select tracks up to a maximum of four CDJs connected via DJ Link. Depending on your preference choose between horizontal or vertical wave views.  The vertical view includes a handy RMS meter for accurate monitoring and volume control.

Secure your connection with lockable LAN ports and a 5-port LAN hub

NEUTRIK etherCON® XLR connector technology will keep your cables secure thanks to the new latch lock function. In addition, connect up to five laptops or players to the TOUR1 mixer thanks to the five-port LAN hub.

Go back-to-back with ease with two independent headphone inputs

Control your own volume and cueing with the two independent headphone inputs so you can cue without hearing your DJ partners input; ideal for fast-paced back-to-back sets.

Combo AUX input that will accommodate a range of sources

Integrate your external drum machines, samplers, effects units and synthesisers with ease thanks to the AUX input supporting XLR and TRS connections.

Sun in your way? Just tilt your screen!

Be it a bright outdoor festival or dark club environment easily adjust the 13-inch screen for the perfect view.

Feel at home with a recognisable Pioneer mixer layout

Like our other pro DJ mixers, the DJM-TOUR1 will be easy to grasp to anyone who has used the industry-standard set-up. The TOUR1 features, just like the CDJ-2000NXS2, high-quality fader/EQ curves, quantised Beat effects, an independent Send/Return and Pioneers famous Sound Colour effects.

Show your fans your set-lists with KUVO Gateway technology

KUVO is Pioneer's social platform that lets your audience see information about what tracks you are playing. The DJM-TOUR1 is the first mixer to have a KUVO Gateway on board for quick ability to broadcast information.

DJM-TOUR1 SPECIFICATIONS

 Number of channels

 5 x audio channels, 2 x MIC channels


 Input ports

Digital In x 4 (Coaxial), Line In x 4 (RCA), Phono x 4 (RCA), AUX×1(XLR & ¼-inch TRS jack x 1), MIC x 2 (XLR & ¼-inch TRS jack x 1, ¼-inch TRS JACK x 1)


 Output ports

Master Out x 2 (XLR x 1, RCA x 1), Booth Out x 1 (XLR), Headphone Monitor Out x 4 ( Section 1: ¼-inch stereo jack, 3.5mm stereo min-jack) (Section 2: ¼-inch stereo jack, 3.5mm stereo min-jack), Rec Out x 1 (RCA), Digital Out x 1 (coaxial)


 Other ports

Send x 1 (¼-inch TRS jack), Return x 1 (¼-inch TRS jack), USB B x 2, USB A x 1, Link (LAN) x 4, COMPUTER LINK x 1(LAN), INTERNET x 1(LAN), WORD CLOCK x 1 (BNC)

 Sampling rate

 96 kHz

 D/A converter

 32bit

 A/D converter

 24bit

 Frequency response

 20 Hz ~ 40 kHz (Line)

 Total Harmonic Distortion

 0.005% or less (Line-Master1)

 S/N ratio

 105 dB (Line)

 Power requirements

 AC 110-240V 50/60 Hz





 Max external dimension (W x D x H)

 (When upper display part is closed)

 445.2 mm (W) × 451.6 mm (D) × 179.1 mm (H)

 (When upper display part is upright at 90 degrees)

 445.2 mm (W) x 457.7 mm (D) x 418 mm (H)

 (When upper display part is fully open)

 445.2 mm (W) x 694.5 mm (D) x 203.1 mm (H)

 Weight

 16.1 kg



REKORDBOX DJ SYSTEM REQUIREMENTS

 Compatible OS

(Windows)


 Windows 10, Windows 8.1, Windows 7 (the latest service pack)

 Compatible OS

(Mac)


 Mac OS X 10.11, 10.10, 10.9(updated to the latest version)


 CPU

 Intel Processor CoreTM i7, i5, i3

 Intel Processor CoreTM 2 Duo 2.0 GHz or higher

 Hard Drive

 250MB or more of free space (not including space for storing music files, etc.)

 Sound

 Audio output to speakers, headphones, etc. (internal or external audio device)

 USB port

 A USB 2.0 port is used to connect a controller or a mixer, and export track files to a USB storage device such as a  flash drive and a hard disk drive

 Playable music file

 FLAC, ALAC, WAV, AIFF, MP3, AAC

 Internet connection

 An internet connection is needed to create a rekordbox user account and to download and activate the software

 Display resolution

 1280 × 768 or greater
