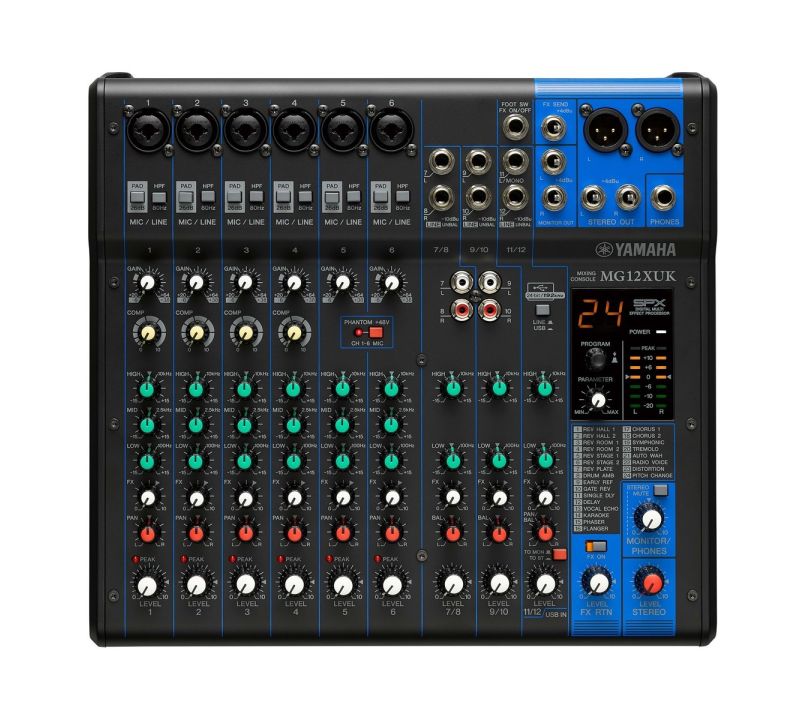

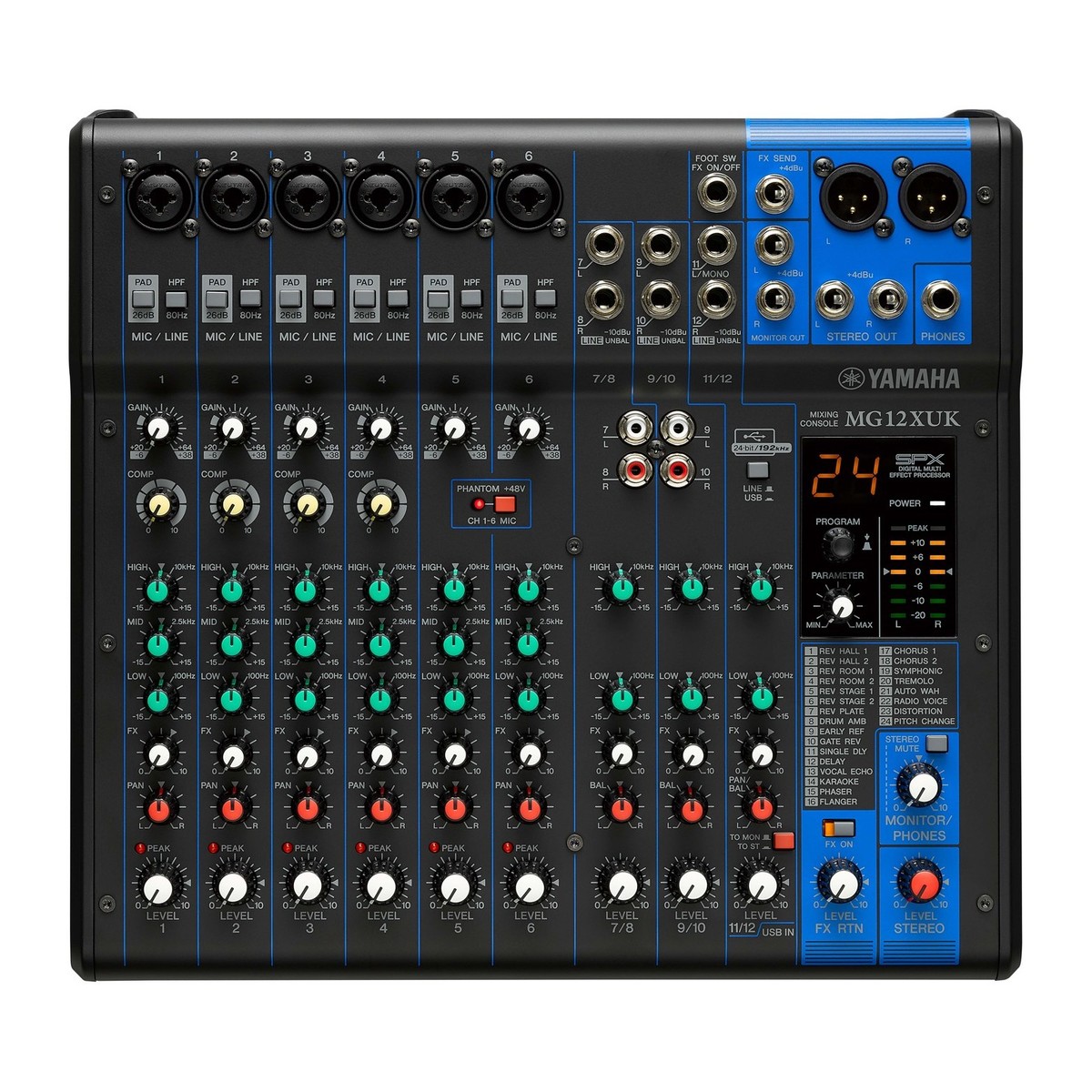

Yamaha MG12XUK Analog USB Mixer
Availability:In stock
SKU
MG12XUK
£469.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
The Yamaha MG12XUK is a compact analogue USB mixer with high-quality preamps and all the control you need. It demonstrates that small-scale mixers do not have to sacrifice sound quality. The class-A D-PRE preamps reproduce music with remarkable clarity and detail so you can achieve excellent outcomes every time.
- See full product description
The Yamaha MG12XUK is a compact analogue USB mixer with high-quality preamps and all the control you need. It demonstrates that small-scale mixers do not have to sacrifice sound quality. The class-A D-PRE preamps reproduce music with remarkable clarity and detail so you can achieve excellent outcomes every time.
Yamaha MG XU Mixers work seamlessly with your digital environment. With an integrated 2-in/2-out USB interface and included Cubase AI software, you can quickly connect to a PC or laptop and start making fantastic live recordings.
Yamaha's SPX digital effects engine may be used to make remedial adjustments or to add some artistic flare to your mix. You will have access to a suite of 24 customizable effects in an easy-to-use style. No matter what you're mixing, get the most out of your sound.
Included In The Box
- 1 x Yamaha MG12XUK Analog Mixer
- 1 x AC Adapter
- 1 x Cubase AI Download Information
- 1 x Owner's Manual
- 1 x Technical Specifications Sheet
Features
- Discrete Class-A mic preamps
- High quality sound op-amp
- Switchable phantom power & PAD switch
- 1-knob compressors
- AUX input
- EQ & high-pass filters
- Variety of input & output connectors
- LED level metering
- Built-in SPX digital effects
- Metal chassis
- Includes Cubase AI downloadable software
- Input Channels
- Microphone: 6
- Line: 6 x Mono + 3 x Stereo
- Output Channels
- Stereo Out: 2
- Monitor Out: 1
- Headphone Output: 1
- AUX Send: 1
- Bus:
- 1 x Stereo
- 1 x Aux (FX)
- On-Board Effects: 24 x SPX Algorithms Effects
- Phantom Power: +48V
- USB Interface: USB 2.0, 24-Bit/192kHz
- PAD: 26dB (Mono)
- HPF: 80Hz, 12dB/oct (Mono)
- Compressor
- Threshold: +22dBu to -8dBu
- Ratio: 1:1 to 4:1
- Output Level: 0dB to 7dB
- Attack Time: Approx. 25msec
- Release Time: Approx. 300msec
- EQ:
- High: 10kHz Shelving (+15dB/-15dB Gain)
- Mid: 2.5kHz Peaking (+15dB/-15dB Gain)
- Low: 100Hz Shelving (+15dB/-15dB Gain)
- Peak LED: LED Turns On When Post EQ Signal Reaches 3dB Below Clipping
- Level Metre: 2 x 7-Segment LED Metre (Peak, +10dB, +6dB, 0dB, -6dB, -10dB, -20dB)
- Crosstalk: -83dB
- Power Requirements: PA-10 (AC 38 VCT, 0.62A, Cable Length = 3.6m)
- Power Consumption: 22.9W
- Dimensions
- Height: 91mm
- Width: 315mm
- Depth: 297mm
- Weight: 3kg
