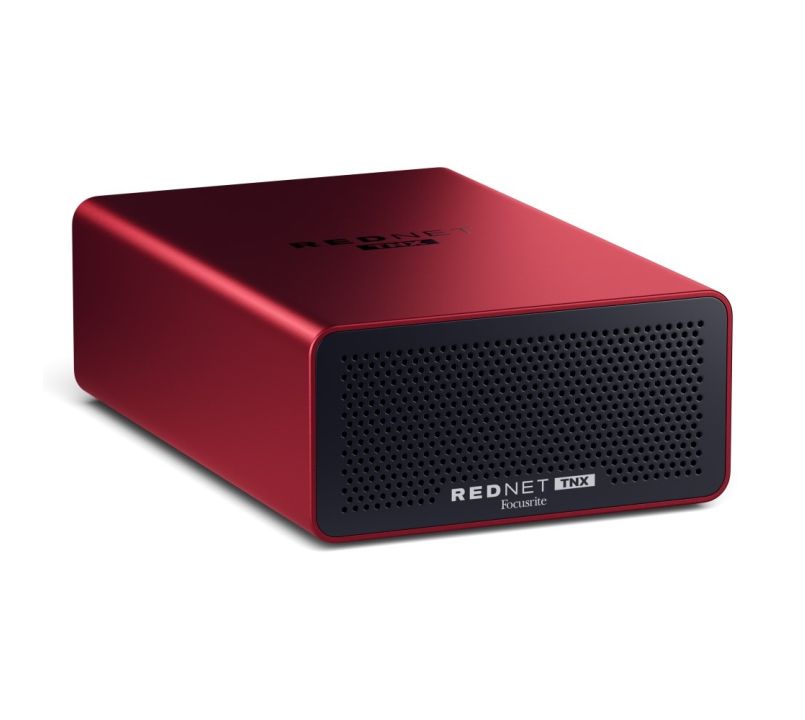

Focusrite RedNet TNX Portable Dante Interface

Focusrite - Audio Equipment range for Music Producers
Availability:In stock
SKU
MONFTNX
Special Price £1,649.00

Was: £1,899.00 Save £250.00

Seen it cheaper? We aim to match authorised UK dealers

Quick overview

The Focusrite RedNet TNX is a compact, Thunderbolt™-powered Dante interface designed to handle demanding audio workflows with ease. Offering up to 128x128 channels at 192 kHz with ultra-low latency, it delivers exceptional audio performance through a single cable making it ideal for professional recording, post-production, and broadcast environments.

  • See full product description
Add to Wish List
Description Features Tech spec

The Focusrite RedNet TNX is a compact, Thunderbolt™-powered Dante interface designed to handle demanding audio workflows with ease. Offering up to 128x128 channels at 192 kHz with ultra-low latency, it delivers exceptional audio performance through a single cable making it ideal for professional recording, post-production, and broadcast environments.

Scalable for Larger Workflows

Need more channels? RedNet TNX is built to grow with you. Unlock up to 256x256 channels at 24-bit/96kHz with a simple Dante Ready™ upgrade, ensuring your system can handle even the most complex projects.

Studio-Grade Recording Capability

Tailored for commercial studios and music production spaces, RedNet TNX provides unmatched flexibility and pristine audio quality, allowing seamless integration into modern recording workflows with low-latency, high-resolution audio.

Effortless Integration

Getting started is simple, just plug into any Mac or PC with Thunderbolt™, and you are connected. A built-in network interface means setup is quick and reliable with a single network cable.

Optimised for Post-Production

Post-production professionals working in immersive formats like Dolby Atmos will appreciate RedNet TNX’s smooth integration with the Dolby Renderer, delivering precise, high-channel-count audio through Dante.

Broadcast-Ready and Road-Tested

Engineered for the rigors of broadcast, RedNet TNX supports AES67, SMPTE ST 2110, and Dante Domain Manager. It is also lightweight and portable makin it ready for use in studio or on location.

Redundant, Reliable Networking

Dual RJ-45 Ethernet ports support both switched and redundant modes, offering the flexibility of fail-safe networking for mission-critical environments.

Centralised Control Made Easy

Manage and monitor your entire RedNet setup through RedNet Control which is a single, intuitive application that simplifies your workflow.

Designed to Fit Your Setup

With dual Thunderbolt™ ports (each supplying 15W), RedNet TNX supports daisy-chaining of additional devices. Mounting is easy too, thanks to integrated M5 x 12mm threads for rack-shelf compatibility.

Trusted by Focusrite

Engineered for durability and long-term use, RedNet TNX is backed by Focusrite’s three-year warranty and round-the-clock support, giving you complete confidence in your setup.

  • 128x128 channels at 24-bit/192kHz out of the box
  • Ultra-low round-trip latency
  • Available Thunderbolt™ port — ideal for large recording sessions and post-production work using Dolby Atmos and other immersive formats.
  • Seamless Thunderbolt™ connectivity
  • Expandable connectivity with an optional upgrade to 256x256 audio channels at 24-bit/96 kHz with Dante Ready™.
  • Dual Ethernet RJ-45 connections allow for both switched and redundant mode
  • Reliable, adaptable, and supports the latest standards, including AES67 and compliance for SMPTE ST 2110 (DDM required).
  • Works with Thunderbolt™-equipped laptop or desktop computers running Windows (Intel) or macOS (Intel and Apple Silicon).
  • Integrated network interface - allowing network control via a single-cable connection.
  • Three-year manufacturer warranty
  • Award-winning 24/7/365 technical support

In the Box

  • Focusrite RedNet TNX unit
  • 2m Thunderbolt™ 3 cable
  • 2m cat6A Ethernet cable
  • External power supply and cable
  • Focusrite Pro Important Information Guide
  • Safety Information Sheet

System Requirements

  • Computer: Apple Mac/Windows system running supported OS
  • Computer with Thunderbolt™ port
  • Other: Internet connection for downloading and installing software and driver

Simultaneous Inputs & Outputs

  • 128x128 (all sample rates)
  • 256x256 (up to 96kHz)

Digital Performance

  • Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24-bit

Dante Connectivity

  • 2 x Ethernet standard RJ45 connectors (compatible with Cat 5e and above)

Driver Compatibility

  • Multi-client ASIO and WDM (Windows)
  • CoreAudio (Mac)

Rear Panel

  • 2x Thunderbolt™ 3 ports (Provide 15W of power)
  • 2 x Sonnet ThunderLok™
  • 2x Network Active LED indicators (Primary/Secondary)
  • 2x Network Lock LED indicators (Primary/Secondary)
  • 1x DC power inlet
  • 1x Factory Reset button

Power

  • Powered by external DC power supply

Heat Performance

  • Max ambient temperature: 50 degrees Celsius/122 degrees Fahrenheit

Miscellaneous

  • Exposed threads for rack shelf/cradle mounting
  • Weight (without accessories): 1.49kg / 3.29lbs
  • Weight (with accessories): 2.166kg / 4.78lbs
  • Height: 71.6mm / 2.82"
  • Width: 144mm / 5.67"
  • Depth (length): 212.4mm / 8.36"
