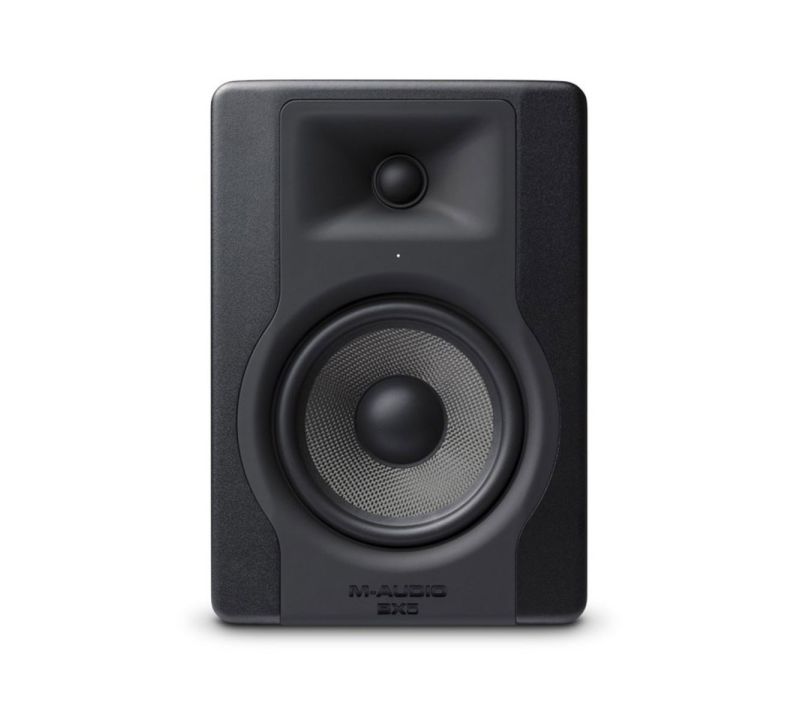

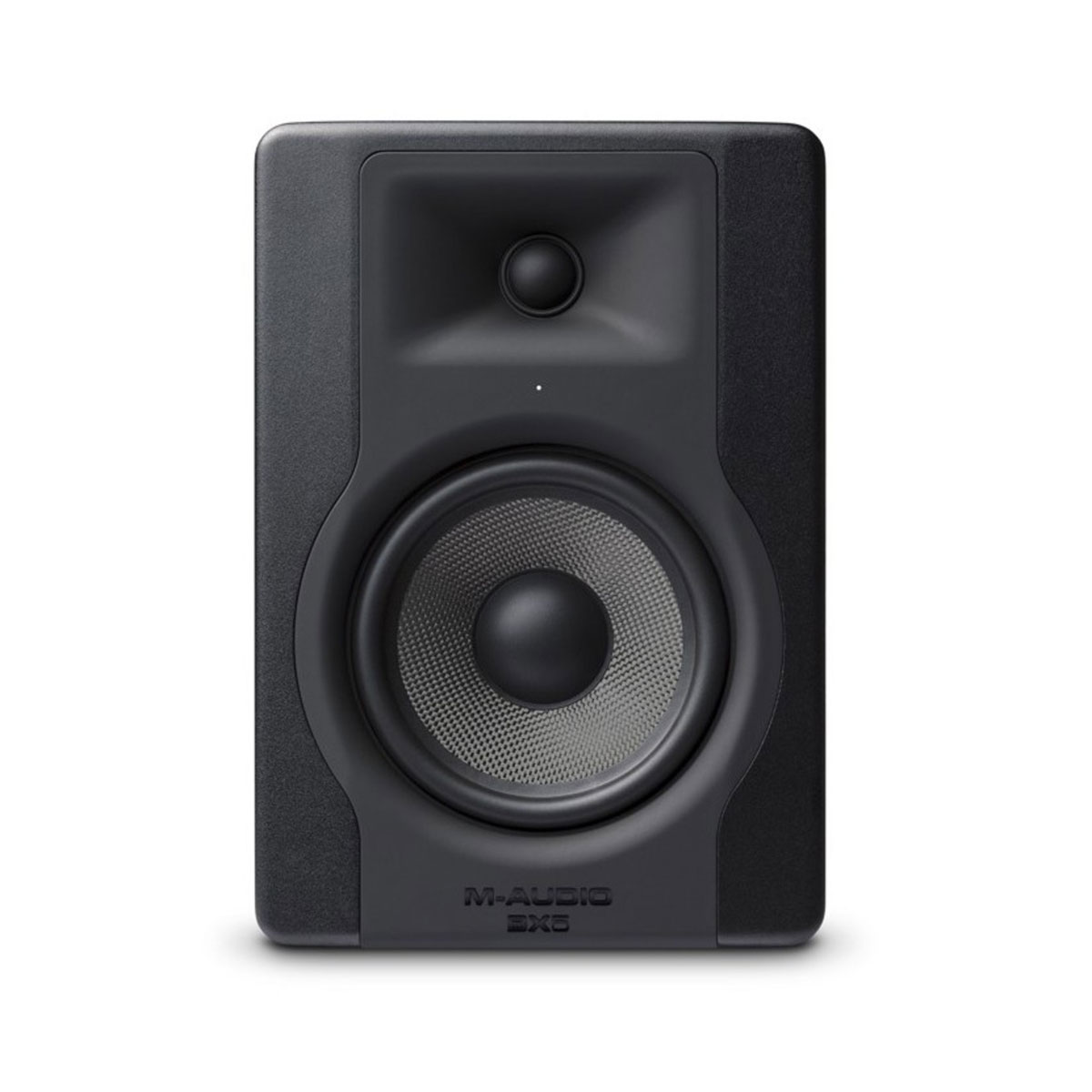

M-Audio BX5 D3 Powered Studio Reference Monitor

£89.00

Seen it cheaper? We aim to match authorised UK dealers

Quick overview

Introducing the M-Audio BX5 D3 Studio Reference Monitors - offering you untold clarity on high-end frequencies and a distortion-free low-end enabling you to mix and master with precision.

  • Bi-amplified design
  • 5” Kevlar low-frequency driver
  • 1” natural silk dome tweeter
  • See full product description
Deko Pay

0% Finance: Spend £189.00 more to qualify.

Introducing M-Audio's BX5-D3 Studio Monitor Speakers – the superior quality successor to the renowned D2 range. These monitors feature an incredible build-quality including robust and durable Kevlar woofers built to military-grade specification. The result is a monitor that aims to reduce against undesirable “cone breakup” and other unwanted low-end resonance. The cabinet is manufactured to create a lightweight speaker that still fights against unwanted cabinet resonance.

The BX5-D3 features a silk dome treated tweeter providing you with clarity on high-end frequencies. This combined with the BX drivers combine to give an accurate frequency coverage allowing you to mix your music with dynamic accuracy. The tweeter is attached to a custom made waveguide that helps to direct frequencies more accurately and to prevent against the unwanted scattering of frequencies. In addition to this, the BX5's also combats against audible air turbulence that comes from when the bass is played back at a high-SPL.

M-Audio's BX5 D3 is powered by two Class A/B internal amps that drive the tweeter and woofer separately. A precision-tuned crossover means that each driver only deals with frequencies that it produces with the most efficiency. This helps to create a more coherent image of the overall frequency spectrum. In addition to this, the BX5-D3 features the iconic M-Audio Keyhole design and flexible input functionality with both XLR and ¼ balanced inputs meaning this connect to virtually any mixer or interface setup.

Get your pair of M-Audio BX5-D3 Studio Monitor Speakers today for untold clarity and a nice flat bass response. This monitor offers incredible performance for one in this price bracket.

M-Audio BX5 D3 Key Features

  • Bi-amplified design with 100 watts (60 LF, 40 HF) for powerful, accurate sound
  • 5” Kevlar low-frequency driver with the high-temp voice coil and damped rubber surround
  • 1” natural silk dome tweeter delivers superb transient details
  • New computer-optimized tweeter waveguide for precise imaging
  • Acoustic Space Control to fine-tune low-end response to your room
  • Optimized rear port for extended low-frequency response
  • XLR balanced and 1/4” balanced/unbalanced inputs for connecting audio interfaces, mixers, synthesizers DJ gear, and more
  • Volume control enables you to dial in the perfect monitor playback level
  • Ultra-wide range 52-35kHz frequency response covers the full musical spectrum
  • Front panel LED shines brightly when the speaker is positioned at an ideal monitor angle

M-Audio BX5 D3 Tech Spec

  • Type - 2-way near-field studio reference monitors
  • Low Freq Driver - 5 inch (127mm) Kevlar curved cone with the high-temperature voice coil and damped rubber surround. Magnetically shielded.
  • High Freq. Driver 1 inch (25mm) magnetically shielded natural silk dome
  • Frequency Response 52 Hz –35 kHz
  • Crossover Frequency - 2.0kHz
  • Low Freq. Amplifier - Power65W
  • High Freq. Amplifier - Power55W
  • Maximum Peak - SPL105dB
  • Input Sensitivity - 85mV pink noise input produces 96dBA output SPL at 1

Input Connectors

  • 1x XLR balanced input connector
  • 1x TRS balanced/unbalanced input connector

Input Impedance

  • 10kΩ balanced, 20kΩ unbalanced

Polarity

  • Positive signal at + input produce outward LF cone displacement

Protection

  • RF interference, output current limiting, over-temperature, turn on/off transient, subsonic filter, external mains fuse

Power

  • Voltage - 100–120V, 50/60 Hz220–240V, 50/60 Hz
  • Consumption - 100WFuse220–240V~ T1AL 250V100–120V~ T1.6AL
  • 250VCabinet: Vinyl-laminated high-acoustic-efficiency MDF

Dimensions (width x depth x height)

  • 6.9” x 7.8” x 10”
  • 176 x 197 x 254 mm

Weight

  • 13.2 lbs
  • 6.0kg
