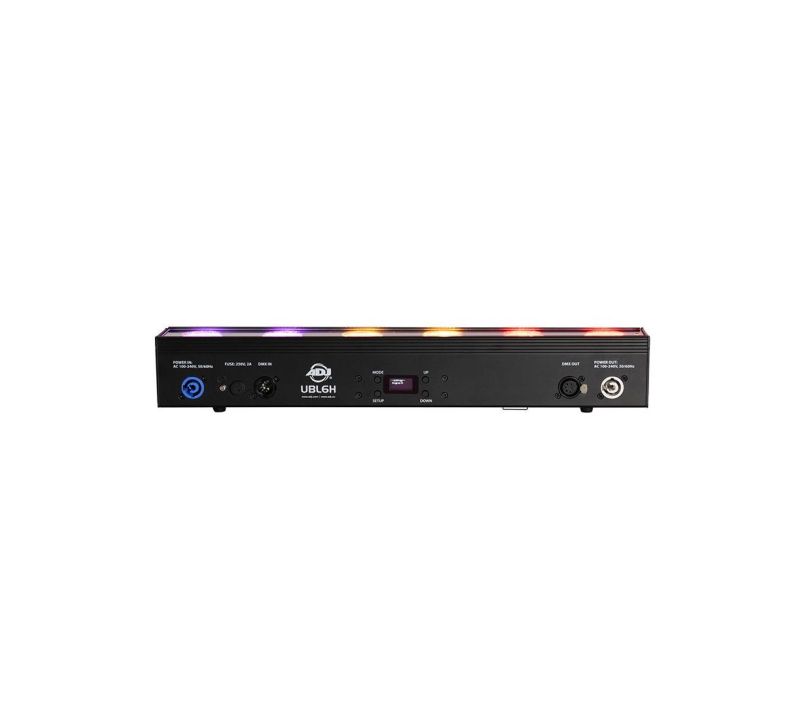

ADJ Lighting UBL6H Hex LED Bar
Availability:Out of stock
SKU
1226200070
Special Price £185.00 Was: £199.00 Save £14.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
Experience the professional-grade excellence of the ADJ Lighting UBL6H from the esteemed Ultra Series. This HEX LED linear fixture boasts six ultra-bright 20-watt HEX LEDs (Red, Green, Blue, Amber, Lime, and UV), delivering unparalleled colour blending and precision.
- See full product description
Experience the professional-grade excellence of the ADJ Lighting UBL6H from the esteemed Ultra Series. This HEX LED linear fixture boasts six ultra-bright 20-watt HEX LEDs (Red, Green, Blue, Amber, Lime, and UV), delivering unparalleled colour blending and precision.
Elevating linear wash lighting, the UBL6H offers high CRI output, linear colour temperature control (2,300K to 9,900K), and an added lime chip for superior colour indexing with a CRI exceeding 90. Empower your creative vision with captivating displays on walls, floors, and ceilings - the UBL6H sets a new benchmark in event lighting.
LIGHT SOURCE:
- 6 x 20W Ultra bright (Red, Green, Blue, Amber, Lime and UV) LEDs
- Long Life LEDs (Rated at approximately 50,000 hrs.) • 17° beam angle
CRI >90 - Pixel Pitch: 85.5mm
FEATURES:
- Linear Color Temperature Control (2,300K to 9,900K)
- Smooth RGBAL+UV color mixing
- Horizontal Magnetic Alignment feature (Built-In)
- Compatible with the ADJ UC-IR24 remote. Operates at a distance of up to 32.8 feet (10 meters)
- RDM Compatiblee
CONTROL:
- Linear Color Temperature Control (2,300K to 9,900K) • OLED Display with 4-buttons
- 7 DMX Channel Modes: 6, 11, 13, 16, 18, 25, & 28
Channels
- 3 Groups x2 RGBAL+UV LED pixels controllable via
- DMX in 18, 25 & 28 channel modes
- 5 operational modes: Auto Run, Program Mode, Sound
- Trigger, RGBAL+UV Manual, and DMX-512 Mode
- LED Refresh Rate: 1.9KHz
- 64 built-in Color Macros
- 6 selectable Dim Modes (Standard, Stage, TV,
- Architectural, Theatre & Stage 2)
- 4 selectable Dim Curves (Square, Linear, Inv. Square & S. Curve)
- Built-In Microphone for sound trigger
- LED pulse and strobe effect
- Electronic Dimming: 0-100%

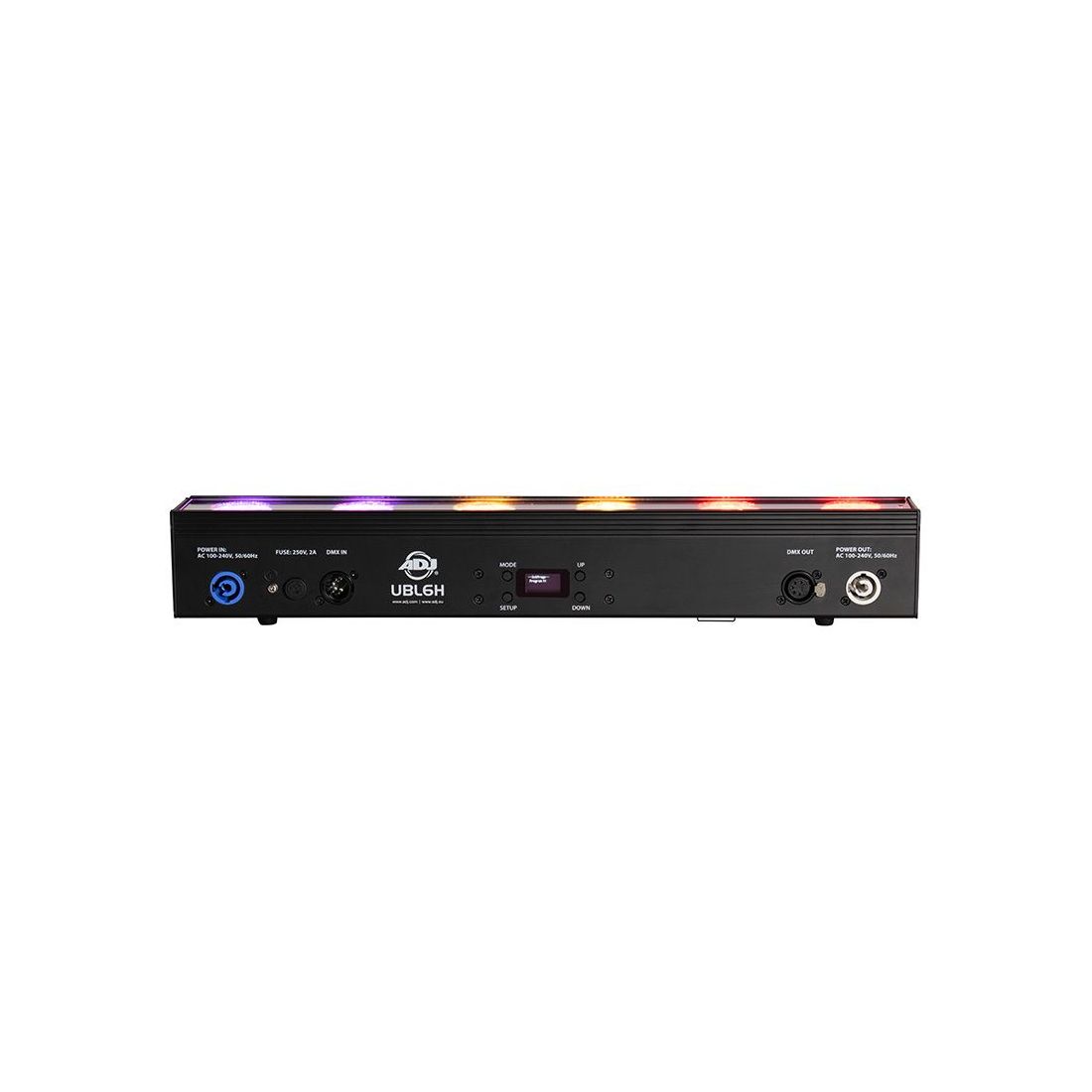

CONNECTIONS:
- Linkable: DMX via 5-pin XLR cable
- Indoor Locking power In/Out to daisy chain power
ELECTRICAL:
- Multi-voltage operation: AC 100V-240V 50/60Hz
- Power Draw: 26W
- Daisy-chain power link (Up to 26 UBL6H’s can be linked
- @120V and up to 50 UBL6H’s can be linked @230V)
DIMENSIONS / WEIGHT:
- Dimensions (LxWxH): 2.96” x 22.40” x 4.2” (75x568.9x106.7mm)
- Weight: 4.41 lbs./ 2kg.
