This product is no longer available, please click here to view our latest range of active pa speakers.

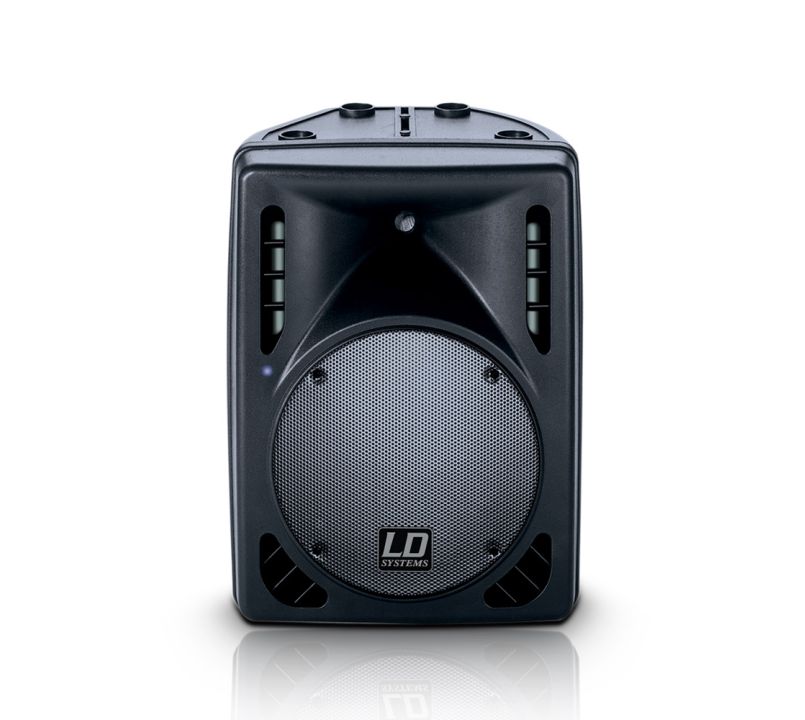

This powerful loudspeaker was designed for live applications, both as a full-range solution as well as in combination with a subwoofer. The bi-amp amplifier section delivers an output of 220 W + 60 W RMS and a sound pressure level of 124 dB (max.). This light loudspeaker impresses with rich bass response as well as an assertive midrange. The rear panel offers numerous connections and controls: 2 microphone inputs (XLR/jack), a line-in connector (RCA/XLR), a line-out connector (XLR/jack), 2-band EQ, a bass boost switch and a ground lift switch.
Additional highlights are the integral protective circuitry, built-in handles and rigging points, the 36 mm stand mount and the rugged overall design. Optional wall-mount brackets and monitor supports are available. The perfect PA solution for bands, mobile discos or permanent installation in medium-sized clubs and other function rooms.
Product number: | LDPN152A2 |
---|---|
Product type: | PA loudspeaker |
Type: | active |
Low/mid driver dimensions: | 15" |
Low/mid driver dimensions (mm): | 381mm |
Low/mid driver magnet: | Ferrite |
Low/mid driver brand: | Custom-made |
Tweeter dimensions: | 1" |
Tweeter dimensions (mm): | 25mm |
Tweeter magnet: | Ferrite |
Tweeter brand: | Custom-made |
Amplifier: | Class A/B (Bi-amp) |
Dispersion (H x V): | 90 x 40 |
RMS: | 280W |
Woofer RMS power: | 220W |
Tweeter RMS power: | 60W |
Frequency response: | 55 - 18,000Hz |
Max. SPL: | 119,5dB |
Integrated media player: | no |
Protection circuits: | overload |
Controls: | Mic Gain 1, mains switch (on/off), volume, Bass boost, ground lift, Bass, Mic Gain 2, Treble |
Display: | clip, Power, signal |
Line inputs: | 2 |
Line input connectors: | XLR, 2 x RCA |
Mic inputs: | 2, 6.3 mm Jack, XLR |
Line outputs: | 2 |
Line output connectors: | 6.3 mm Jack, XLR |
Operating voltage: | transformer, 230 V AC / 50-60 Hz |
Cabinet material: | polypropylene |
Cabinet construction: | vented |
Width: | 450mm |
Height: | 685mm |
Depth: | 380mm |
Weight: | 22,75kg |
Features: | Speaker Pole Mount (36 mm) |
