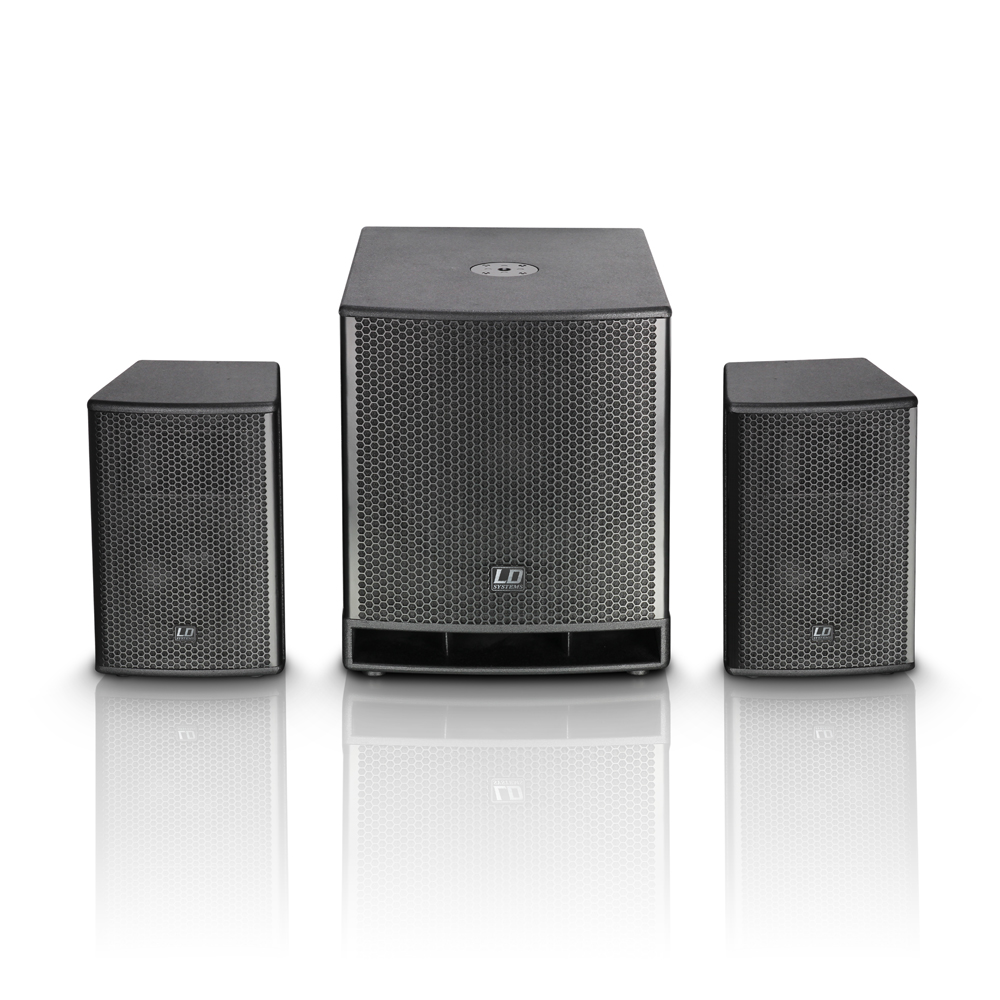

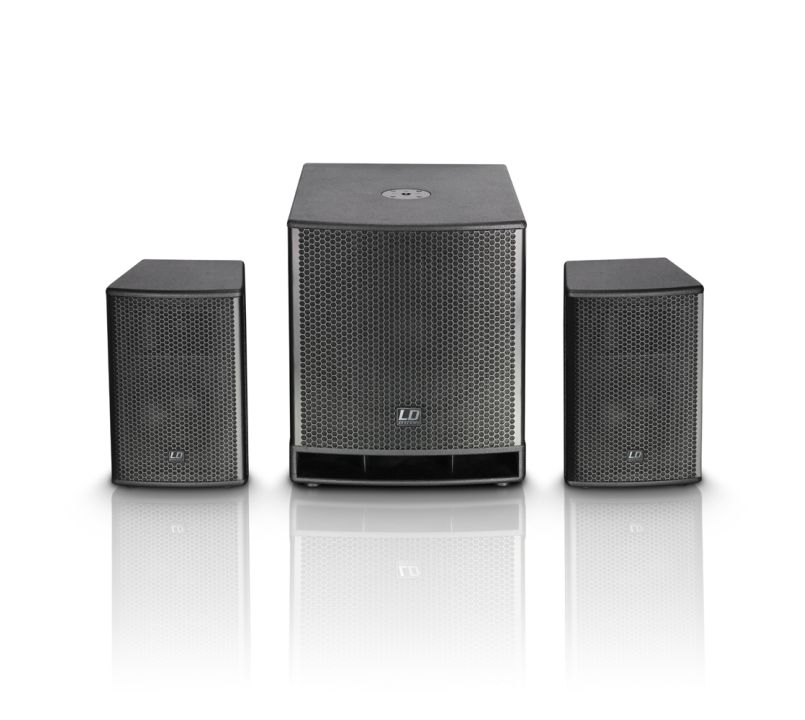

LD Systems DAVE 15" G3 Active PA Speaker System

Availability:Out of stock
SKU
LDDAVE15G3
£939.00

Seen it cheaper? We aim to match authorised UK dealers

Quick overview

LD Systems DAVE 15 G3 - Active PA-System with DSP

  • See full product description

The DAVE 15 G3 is LD Systems' most powerful active compact system. A bass reflex subwoofer with a 15" driver constitutes the massive, powerful foundation. The satellites with 8" drivers and HF horns are responsible for a natural sounding, assertive midrange and transparent treble. The subwoofer incorporates a 2.1 power amp module that drives the components of the DAVE 15 G3 with 1x 400W + 2x 150W of continuous power.

The LD LECC DSP digital processor ensures perfectly tuned functioning of the system. It includes specially amplitude and low-latency optimised crossovers, separate equalisers and limiters for the bass, mid, and treble frequency ranges, and a dynamic compressor that controls the subwoofer according to volume and provides for increased punch at low volumes.

The thoroughly professional features of the DAVE 15 G3 active PA system include sturdy multiplex cabinets, all important protection circuits, RCA, XLR/jack combo and Speakon-compatible connectors, and ergonomically shaped, recessed handles. The LD "Evolutive" handles of the subwoofer are especially worthy of mention: the innovative design with a metal ring handle permits secure, convenient handling from all sides. For accurate vertical orientation, the speaker supports of the satellites are vertically adjustable by ± 13,5° max. in seven increments.

Speaker protection covers and a castor board with a lashing strap for simple transport are available as accessories. Matching speaker stands, spacer tubes, and mounting forks are also available separately.

Like all systems in the DAVE series, the DAVE 15 G3 is suitable for portable use and for permanent installation.

Subwoofer

  • Low/mid driver dimensions: 15"
  • Low/mid driver dimensions (mm): 381mm
  • Woofer magnet: Ferrite
  • Woofer brand: Custom-made
  • Woofer voice coil: 3"
  • Woofer voice coil (mm): 76,2mm
  • Cabinet construction: vented
  • Cabinet material: 18 mm Plywood
  • Cabinet / Housing surface: texture paint
  • Subwoofer width: 480mm
  • Subwoofer height: 570mm
  • Depth Subwoofer: 635mm
  • Subwoofer features: threaded flange M20, LD Systems "Evolutive" handles

Mid/Hi System

  • Midrange size: 8"
  • Midrange size: 203,2mm
  • Midrange magnet: Ferrite
  • Midrange brand: Custom-made
  • Midrange voice coil: 1,5"
  • Midrange voice coil: 38,1mm
  • Horn: CD horn
  • Tweeter dimensions: 1"
  • Tweeter dimensions (mm): 25,4mm
  • Tweeter magnet: Ferrite
  • Tweeter brand: Custom-made
  • Tweeter voice coil: 1"
  • Tweeter voice coil (mm): 25,4mm
  • Mid/Hi system impedance: 4Ohm(s)
  • Loudspeaker inputs: 1
  • Speaker input connections: Speakon compatible: Closed
  • Mid/Hi system cabinet material: 15 mm Plywood
  • Mid/Hi system cabinet surface: texture paint
  • Mid/Hi system width: 275mm
  • Mid/Hi system height: 430mm
  • Mid/Hi system depth: 260mm
  • Mid/Hi system features: SM707 stand mount 36 mm, ergonomically shaped insert handles

Amplifier Module (integrated in Subwoofer)

  • Amplifier: Class A/B
  • Amplifier Output System (RMS): 700W
  • Amplifier Output System (Peak): 1400W
  • Amplifier Output Subwoofer (RMS): 400W
  • Amplifier Output Subwoofer (Peak): 800W
  • Amplifier Output Mid/Hi (RMS): 2 x 150W
  • Amplifier Output Mid/Hi (Peak): 2 x 300W
  • Protection circuits: overload, limiter, short circuit
  • Cooling: volume-controlled fan
  • Controls: volume, sub level, Power, Subwoofer Phase Reverse
  • Display: signal, on/off, limit, protect (protection circuit engaged)
  • Operating voltage: transformer, 220 V AC - 240 V AC
  • Line inputs: 2
  • Line input connectors: RCA, XLR, 6.3 mm Jack
  • Line output connectors: XLR
  • Loudspeaker outputs: 2
  • Speaker output connections: Speakon compatible

Additional Information

  • Product type: PA system
  • Type: active
  • Colour: black
  • Max. SPL (continuous): 212dB
  • Max. SPL (peak): 132dB
  • Frequency response: 35 - 19000Hz
  • Dispersion (H x V): 90 x 40
  • Weight: 60,9kg
