IMG Stageline MMX-44UFX 8-Channel Audio Mixer with DSP Effects and USB Interface (ARCHIVED)
Availability:Out of stock
SKU

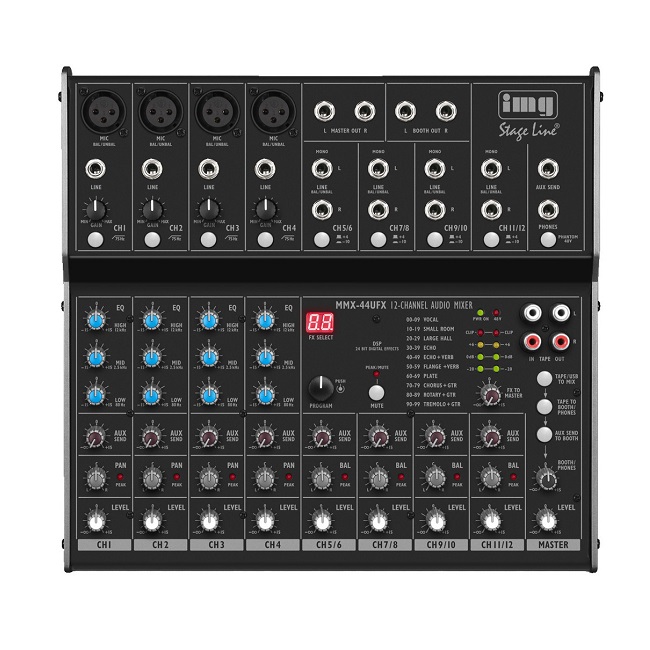

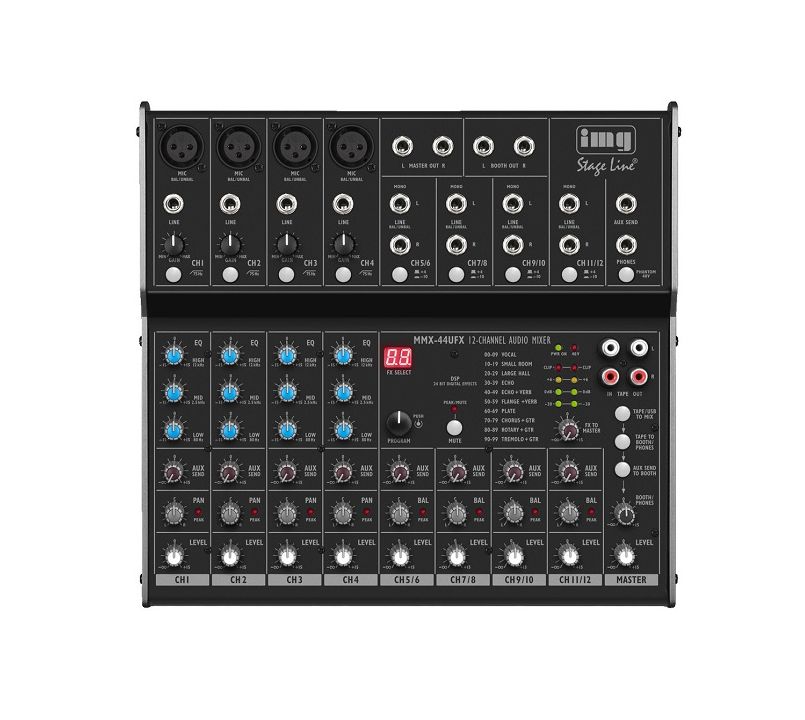

IMG Stageline MMX-44UFX 8-Channel Mixer
£125.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
The IMG Stageline MMX-44UFX is an 8-channel audio mixer that comes equipped with 12 inputs alongside a powerful Digital Signal Processor that allows you to apply dynamic and time-based effects to your mixes so you can get an excellent sounding mix for your performers.
This product is now discontinued, to see other audio mixer options please click here.
- See full product description
The IMG Stageline MMX-44UFX is an 8-channel audio mixer that is equipped with 12 inputs as well as a powerful digital signal processor effects unit that allows you to add creative effects, and an integrated USB interface, so all you need to do is plug in and get mixing. This compact audio mixer is perfect for live sound situations and is especially suitable for mobile entertainers, schools and colleges, music venues, club and bar venues, and live events.
The MMX-44UFX comes complete with a full duplex USB port that lets you simultaneously record and reproduces digital audio data from a PC as well as for recording mixings onto a computer. Four mono input channels each come with gain control, 3-band equaliser, low-cut, and panning controls, so you can mix with confidence and creativity. Four stereo inputs each come with a balance control as well as an auxiliary send/return output for external effects units and outboard gear.
The powerful integrated Digital Signal Processor offers 100 different effects for you to get creative with and allows you to mix a band or performance with absolute confidence so you can apply dynamic and time-based effects as needed for a great sounding overall mix. There is a 48v phantom power switch that works to power your microphone if needs be as well as an adjustable headphone output and stereo LED level display that lets you see when a signal is overly loud.
This product is now discontinued, to see other audio mixer options please click here.
IMG Stageline MMX-44UFX 8-Channel Audio Mixer Key Features:
- Integrated USB audio interface (will be identified and addressed as an external sound card)
- Full duplex USB port (allows for simultaneous recording and reproduction) for reproduction of digital audio data from a PC and for recording mixings onto a PC
- 4 mono input channels, each with gain control, 3-way equalizer, low cut and pan pot
- 4 stereo input channels, each with balance control
- DSP with 100 different effects
- Aux send output
- Control room function
- Tape record/play connections
- +48 V phantom power, can be switched centrally
- Adjustable headphone output
- Stereo LED level display
- Power supply via supplied PSU
IMG Stageline MMX-44UFX 8-Channel Audio Mixer Technical Specifications:
- No. of channels: 8
- No. of inputs: 12
- Mic input: 0.5 mV, bal., 4 x 3-pole XLR
- Line input: 10 mV, bal. (stereo), 4 x 6.3 mm jack L/R, 1 mV (mono), 4 x 6.3 mm jack
- Tape (play): 100 mV, 1 x RCA L/R
- Master output: 650 mV, 1 x 6.3 mm jack L/R
- Aux output: 9.5 V, 1 x 6.3 mm jack
- Control room: 2 V, 1 x 6.3 mm jack L/R
- Tape (rec): 650 mV, 1 x RCA L/R
- Headphones: ≥ 8 Ω, 1 x 6.3 mm jack
- USB: Yes
- Frequency range: 20-20,000 Hz
- THD: < 0.05%
- S/N ratio: > 74 dB
- Crosstalk: -63 dB
- Equalizer bass: ±15 dB/80 Hz
- Equalizer midrange: ±15 dB/2.5 kHz
- Equalizer treble: ±15 dB/12 kHz
- Phantom power: +48 V
- Power supply: via encl.power supply
- Admiss. ambient temp.: 0-40 °C
- Width: 280 mm
- Height: 65 mm
- Depth: 260 mm
- Weight: 2.5 kg
