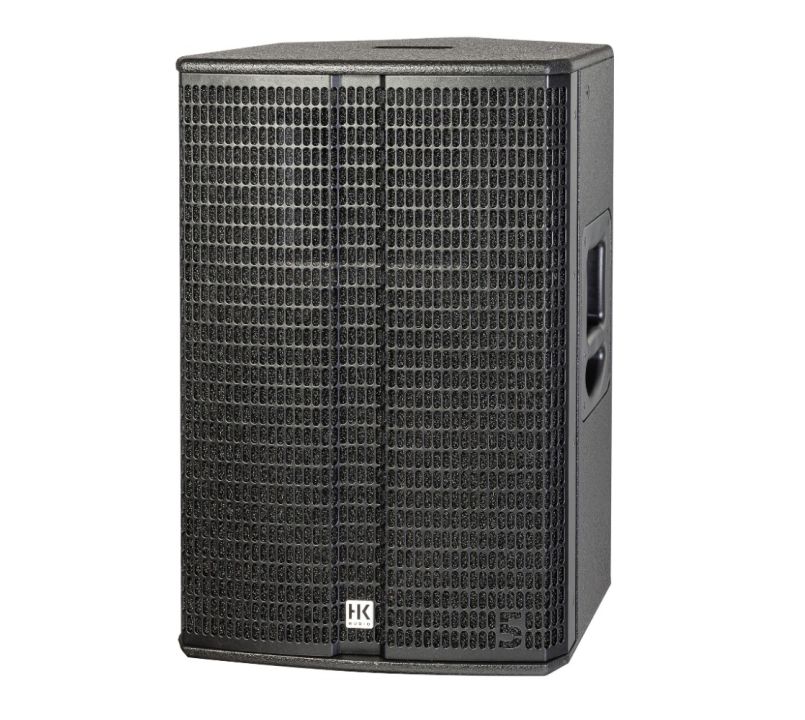

HK Audio LINEAR 5 MKII 115 XA 15-Inch Active Loudspeaker
In-stock with brand - Estimated delivery 7-10 days
SKU
1007962
£1,278.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
The HK Audio LINEAR 5 MK II 115 XA is the most portable and lightweight versatile mid/high unit in its category. It features a 15" woofer and tweeter with 1.7" voice coil and 1200 W peak power bi-amped Class-D power amplifier.
- See full product description
The HK Audio LINEAR 5 MK II 115 XA is the most portable and lightweight versatile mid/high unit in its category. It features a 15" woofer and tweeter with 1.7" voice coil and 1200 W peak power bi-amped Class-D power amplifier. Assertive sound and the highest possible practical sound pressure without distortion are guaranteed by a remote-controllable DSP with 4 directly selectable presets. The individually processed input signal may be routed to a further, non-network-compatible speaker via the DSP Out. It is a strong partner for bands and sound technicians due to the durable enclosure constructed of birch multiplex hybrid and the variety of mounting and rigging accessories available.
- Multifunctional mid/high unit and powerful monitor in one
- Enclosure shape with 31° monitor slope
- Remote-controllable high-performance DSP with integrated directly selectable presets for the most common applications: Flat, Monitor, Low Cut, Remote
- DSP Out: balanced XLR output, routes the input signal to a non-networked speaker.
- The audio signal applied here can be extensively modified using the DSP CONTROL software
- Lockable EtherCon connector for connection to a Mac or PC to control the system
- Balanced XLR/TRS Combo input, balanced XLR output for analogue looping to an additional speaker
- 15" woofer and tweeter with 1.7" voice coil
- 1200 W peak power bi-amped Class-D power amplifier
- Rotatable horn, 70° x 50° dispersion pattern
- HK Audio DuoTilt with 3° or 7° inclination
- Hybrid enclosure (birch multiplex/MDF)
- Two HK Audio MultiGrips for optimal handling, allowing for installation of optional TB-45N or TB-45NQ tilt brackets
- Three reinforced M8 (AP-8) fixing points
- Lockable V-Lock mains cable
- 5-year manufacturer warranty after registration
- Max. SPL @ 10% THD: 130 dB half space (70 Hz – 12 kHz averaged)
- Max. SPL peak @ 10 % THD: 138 dB half space
- Frequency response +/-3 dB: 64 Hz – 12 kHz
- Frequency response -10 dB: 59 Hz – 19 kHz
- Power amp output (rms/peak): 600 / 1,200 W
- Amp type: Class D – bi-amped
- Low-/mid speaker: 1 x 15", 3" voice coil
- HF driver: 1", 1.7" voice coil
- Horn directivity: 70° x 50° CD horn, rotatable
- Active crossover frequency: 1.6 kHz FIR X-over with 72 dB/oct.
- Maximum input level: 20 dBu
- Analog inputs: 1 x XLR combo balanced
- Analog thru: 1 x XLR balanced
- DSP Out: 1 x XLR balanced
- Network port: EtherCON RJ45, 1 x In
- Filter presets: Flat, Monitor, Low Cut, Remote
- Remote software: DSP CONTROL (Windows, MacOS)
- DSP functions: Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
- Sample rate: 48 kHz
- System latency: Less than 2 ms
- Mains connector: 1x IEC connector with V-Lock securing system, 100-240 V
- Power consumption: 1 A / 100–240 V nominal according to EN 62368-1
- Angles up (Monitor angle): 31°
- Pole mount: DuoTilt 3°/7°
- Rigging points: 3x M8 (AP-8)
- Carrying handles: 2 x MultiGrip, 1 x SingleGrip
- Housing: Hybrid (birch multiplex/MDF)
- Finish: Black acrylic ename
- Front grille: 2 mm metal grille backed with black acoustic foam
- Dimensions (WxHxD): 45 x 68.5 x 42 cm / 17-23/32 x 26-31/32 x 16-17/32"
- Weight: 27.6 kg / 60.85 lbs
