IMG Stageline MX-1IO 1-channel USB audio interface
Availability:In stock
SKU
MX-1IO
£69.00
Representative Example:
A loan of £2,000.00 over
48 months
will cost you £54.32 per month
at a representative 14.90% APR.
The total cost after 48 months
is £2,595.40,
which includes £595.40 interest
at 14.90% fixed and a £0 fee.
The total amount of credit is £2,553.42.
Check your eligibility Fast check - won't affect your credit rating.
Seen it cheaper? We aim to match authorised UK dealers
Quick overview

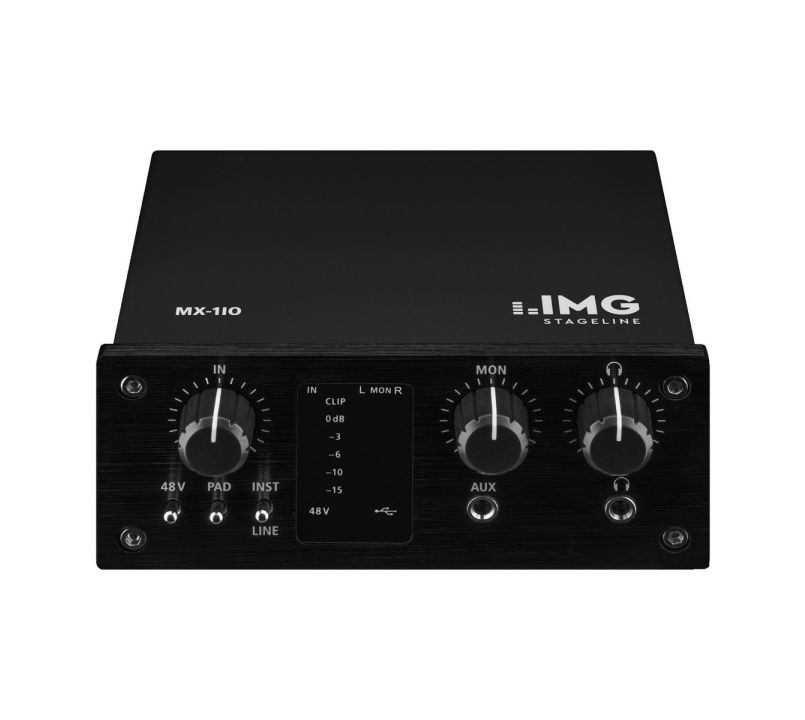

If you need a simple 1-channel interface, go no further than the IMG Stageline MX-1IO. This ultra-compact USB audio interface is more than capable of producing high-quality recordings. The MX-1IO has a microphone input, a line/instrument input, and two monitor outputs. This compact but powerful gadget even has a speaker output for your PC, and its bright LED display clearly shows the input signal at all times.
- See full product description
If you need a simple 1-channel interface, go no further than the IMG Stageline MX-1IO. This ultra-compact USB audio interface is more than capable of producing high-quality recordings. The MX-1IO has a microphone input, a line/instrument input, and two monitor outputs. This compact but powerful gadget even has a speaker output for your PC, and its bright LED display clearly shows the input signal at all times.
The build quality of the MX-1IO is commendable, with a metal casing that appears and feels strong. Phantom power is supplied for your favourite condenser mic, and the front panel has a stereo AUX connection for use as a sound source with your media device or smartphone. Despite having just two inputs, this competitively priced, super-compact audio interface is a genuine all-rounder!
- Selectable 20 dB attenuation and LED level display
- 1 additional stereo input
- 1 x 6.3 mm jack output L/R
- 1 x 3.5 mm stereo jack output
- Adjustable headphone output
- +48 V phantom power, can be activated as required
- Stereo LED level display
- Robust metal housing of compact size
- No. of channels 1
- No. of inputs 3
- Mic input 2.5 mV, 1 x 3-pole XLR
- Line input 45 mV, 1 x 6.3 mm jack 11 kΩ (line)/460 kΩ (inst.)
- Aux input 1.25 V, 1 x 3.5 mm jack
- Master output 500 mV, 1 x 6.3 mm jack L/R
- Aux output 500 mV, 1 x 3.5 mm jack
- Headphones ≥ 16 Ω, 1 x 3.5 mm jack
- USB yes
- Frequency range 20-20,000 Hz
- THD ≤ 0.03%
- Crosstalk 92 dB
- Phantom power +48 V
- Power supply via USB interface
- DC 5 V/500 mA
- Operating voltage (possible alternative) DC 5 V
- Power supply (possible alternative) 500 mA
- Admiss. ambient temp. 0-40 °C
- Width 120 mm
- Height 50 mm
- Depth 110 mm
- Weight 498 g
- Packing dimensions (W x H x L) 0.155 x 0.075 x 0.225 m
- Gross weight 0.701 kg
- Net weight 0.564 kg
