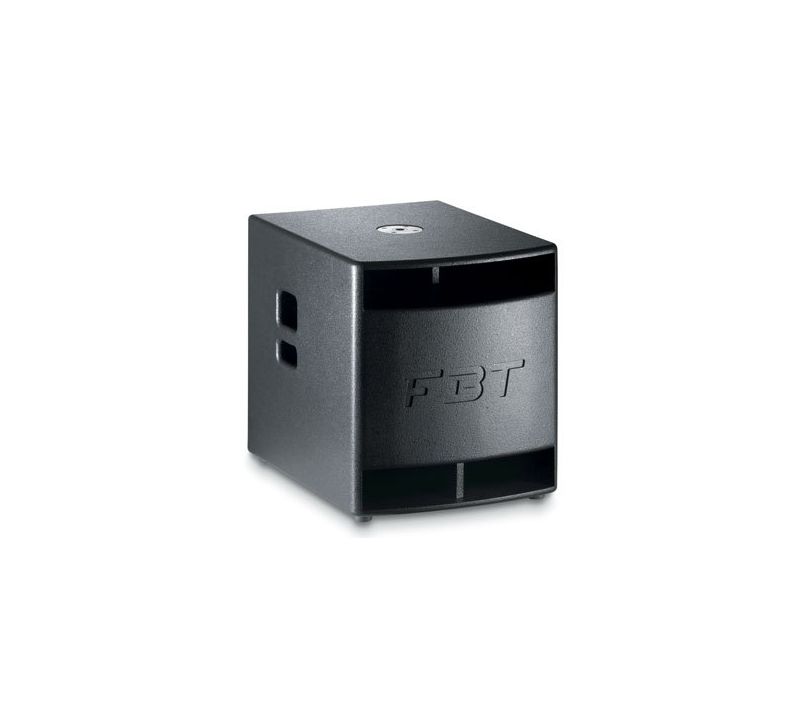

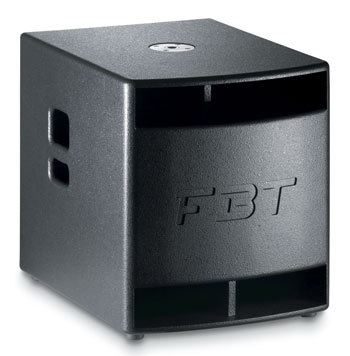

FBT HiMaxX 100Sa Processed Active Subwoofer
Availability:Out of stock
SKU
FBT HiMaxX 100Sa
£1,439.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
This product is no longer available, please click here to view our latest range of Subwoofers.
With the HiMaxX series, FBT establishes a reference point on the scenario of 12” and 15” sound reinforcement polypropylene enclosures, introducing performance and technical content of an impressive standard.
- See full product description
With the HiMaxX series, FBT establishes a reference point on the scenario of 12” and 15” sound reinforcement polypropylene enclosures, introducing performance and technical content of an impressive standard.
The engineering of the enclosures, the use of switch mode power supplies and high efficiency power amplifiers, the custom design of the transducers made FBT’s R&D team achieve the maximum in power/weight ratio.
Three models; two 2-way full-range enclosures in polypropylene, HiMaxX 40 (12”+1”) and HiMaxX 60 (15’’+1.4”), plus a compact 18’’ bandpass SUB in birch plywood (HiMaxX 100Sa). Compact and light weight, HiMaxX brilliantly solve all the most demanding needs for bands, musicians and professionals looking for powerful, versatile and very high quality loudspeaker enclosures. Ideal for live and sound reinforcement applications requiring ease of transport, they are also suited to fixed installations, thanks to the cabinets’ design and optional accessories.
- Self-powered bandpass subwoofer.
- 18” (460 mm) custom neodymium B&C woofer with a 3” (75 mm) voice coil.
- Built-in 900Wrms PWM amplifier.
- Switch mode power supply.
- Analogue signal processor with limiter.
- Control panel with:
- XLR/input and XLR stereo outputs with Hi-Pass, filter for connecting the satellites.
- Volume.
- Ground-Lift.
- 0°-180° phase inverter switch.
- Limiter LED.
- Box in 18 mm (0.7”) birch plywood.
- The special “bandpass” acoustic loading increases efficiency and maximum SPL.
- Eight M10 mounting points, stand socket and two integrated wooden handles.
- Optional 4 swivel-mount casters 80 mm ø (3.15”) on request.
- Configuration: Band pass 1 way
- Frequency response: 38 - 120Hz
- Low frequency woofer: 18" with 3" VC
- Maximum SPL cont/peak: 135 / 139 dB
- Dispersion: Omnidirectional
- Input impedance: 22kohm
- Crossover frequency: 120hz
- Input connector: Stereo XLR with Link out and HP filter out
- Net Dimension (WxHxD): 530 x 605 x 655mm / 21 x 23.8 x 25.8in
- Net Weight: 43kg / 94.8lb
- Transport Dimension (WxHxD): 660 x 735 x 785mm / 26 x 29 x 31in
- Transport Weight: 47kg / 103.6lb
- Built-in amplifier LF/HF: 900W RMS
- Built-in amplifier peak LF/HF: 2400w
- Power cord: 5m IEC
