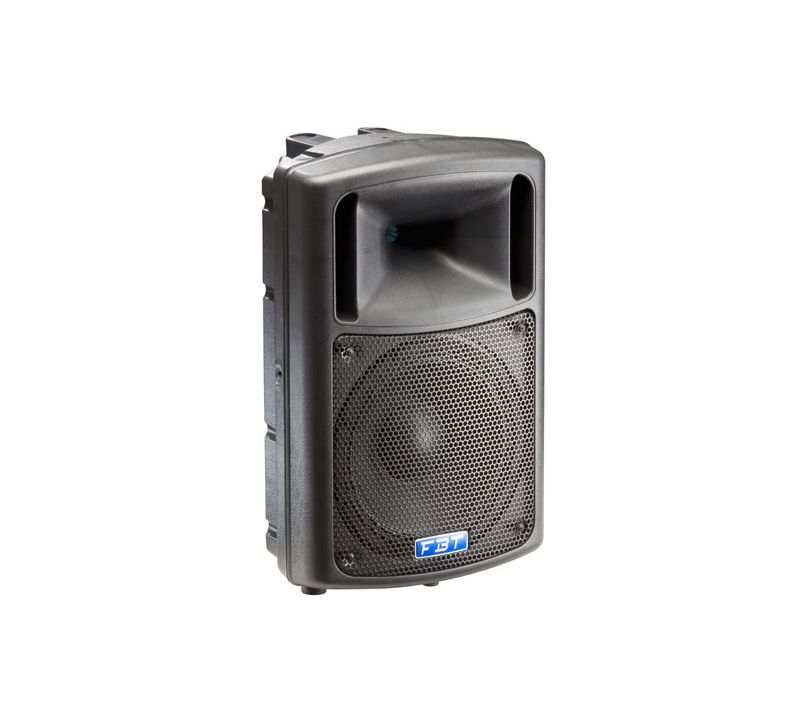

FBT Evo2MaxX 4a Processed Active Speaker


Condition : New

Be the first to review this product


You'll earn 5990 Reward Points for this item

Quick Overview


Evo2MaxX 4a
Processed 12" Active Speaker
500W RMS 130dB SPL

Finance this item from as little as per Month

Click For Options

Powered By Pay4later


Evo2MaxX 4a

Evolving from the FBT EvoMaxX Series of loudspeakers, FBTEvo2MaxXspeakers feature totally new Digital Sound Processing resulting in improved sound quality and SPL, especially in bass reproduction at high volume. The sound is more relaxing and natural and the four new DSP presets provide quick dynamic equalization and protection contours for any acoustically challenging venue.  Other exciting features are high efficiency and excursion woofers, powerful Class D amplifiers with an extremely low noise floor.

Evo2MaxX Group

Additional options are also available for extending low frequency response in the shape of the 15” subwoofer Evo2MaxX 9Sa or the SUBLine 12Sa, 15Sa and 18Sa, all of which boast birch plywood enclosures with 12”, 15” band-pass and 18” reflex designs respectively.

  • -  Sturdy, gas-injected polypropylene molded enclosures, engineered to contain undesired resonance.
  • -  High efficiency loudspeakers custom made for FBT with a weather resistant coating, allowing use in covered outdoor applications.
  • -  B&C HF compression drivers.
  • -  Latest Class D, 400W LF and 100W HF power amplifiers with high efficiency switch mode power supplies. These amplifiers boast an extremely lightweight design with passively cooled circuitry, meaning no noisy fans!
  • -  New digital signal processor with dynamic equalizations and sophisticated dynamic limiters four improve sound quality and SPL granting reliable and distortion-free audio reproduction.
  • -  New 4 DSP presets for improved versatility and ease of use.
  • -  Premium sound quality as results of extensive listening test .
  • -  High SPL thanks to FBT’s new digital limiter algorithms and high power class D amplifier.
  • -  Ergonomic carrying handles, M10 fly points, a top-hat speaker stand socket and a stage monitor taper – all included to ensure superb versatility for live sound events and permanent installations.

Perhaps best of all the fact that Evo2MaxX owners can enjoy four loudspeakers in one thanks to FBT’s New four factory DSP presets. The result of hundreds of hours of development time in FBT’s dedicated R&D facility, the presets optimize the EvoMaxX range to accommodate a vast range of applications.

The presets include:

  • - ORIGINAL: Corresponding FBT benchmark sound for use in general applications.
  • - FLOOR/VOCAL: The Evo2MaxX immediately becomes an ideal stage monitor. Also suited for high clarity and intelligibility vocal reproduction.
  • - BOOST/LOUNGE: Providing loudness contour with increased bass response for a relaxing and very enjoyable listening, especially at low and medium volume.
  • - CLUB/DJ: Providing all the punch and full-bodied response required by DJ users, suitable for high volume DISCO and PARTY applications.

 Evo2MaxX 4a

  • -  2-way, bi-amplified, bass reflex design cabinet.
  • -  320mm (12”) LF woofer with 64mm (2.5”) voice coil, custom made for FBT.
  • -  25mm (1”) exit throat B&C HF compression driver.
  • -  Frequency response from 50Hz to 20 kHz.
  • -  Biamped: 400w RMS LF, 100w RMS HF, Class D power amplifiers with switch mode power supplies.
  • -  Digital Signal Processor with 4 Equalization Presets.
  • -  Control Panel: features balanced XLR/Jack input and XLR link out, Volume, EQ Presets, HP Filter, 3 status LED indicators.
  • -  90°H x 60°V Constant Directivity Horn.
  • -  Sturdy gas-injected polypropylene molded enclosure with two integrated handles and Stage Floor Monitor taper.
  • -  4 x M10 suspension points, 35mm (1⅜”) top-hat speaker stand socket, wall bracket mount flange plate.
  • -  Enclosure suitable for stacking.
  • -  Extremely light, Net Wt. only 15.6kg (34.4 lb).
