The FBT Audio X-3500 Complete PA Speaker System is no longer available, please click here to view our latest PA Speaker System range.
- 2 x X-Lite 12A Loudspeakers
- 1 x X-Sub 18SA Subwoofer
- See full product description

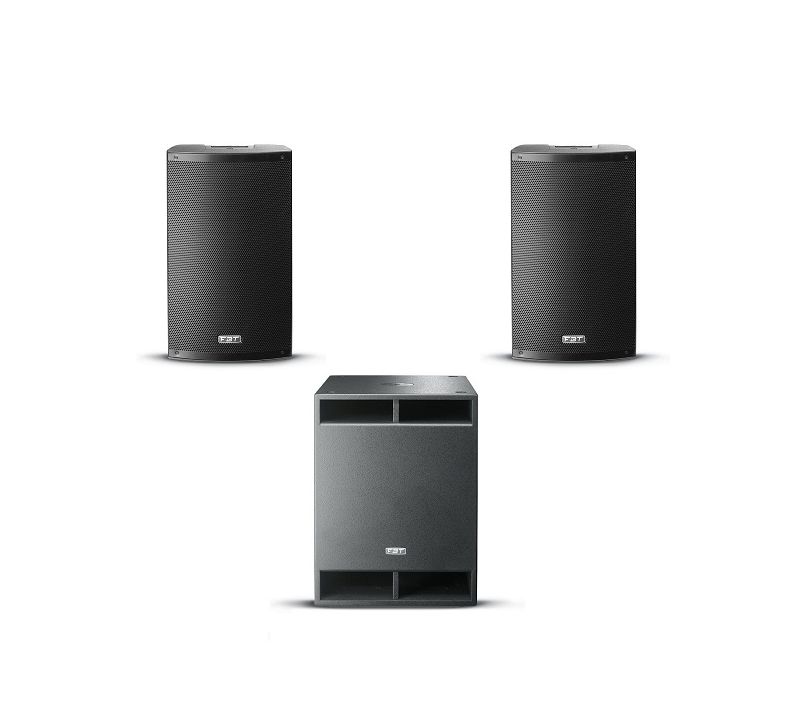

The FBT Audio X-3500 is a complete PA speaker system that is comprised of two X-Lite 12A active loudspeaker as well as an X-Sub 18SA subwoofer. All three speakers work together to provide you with excellent sounding audio that has rich bass tones, a smooth mid-range, and crystal clear high-frequencies and is ideal for both fixed and mobile applications. This system is perfect for mobile entertainers, music venues, club and bar venues, schools, live events, and theatres.
The FBT X-Lite 12A is a 1000w processed active speaker that is equipped with a 12-inch driver alongside a 1-inch tweeter as well as two amplifiers, one Class D amplifier that handles low-frequency information and a Class AB amplifier that processes the high-frequencies. Both amps work to offer a substantial dynamic range that can reach sound pressure levels of 127dB with no distortion and sounds pleasant even at the loudest volumes. The speaker is housed in a 15mm thick birch plywood enclosure that is designed in such a way that it completely eliminates unwanted resonances. The rear of the speaker features a powerful digital signal processor that gives you six equalisation presets; each preset has been tailored for various applications and installation environments so you can sound good no matter where you are or what the use.
The FBT X-Sub 18SA is a 1200w processed active subwoofer that is fitted with a single heavy-duty 18-inch woofer and 3-inch voice coil which are controlled via a Class D amplifier that produces a frequency range that goes from 38Hz – 120Hz and is housed in an 18mm thick plywood cabinet that is finished with super-sleek scratch and scuff resistant paint so it’ll always look fresh. The rear of the subwoofer features a digital signal processor as well with six EQ presets to choose from so you’ll always sound great no matter the application or environment as well as stereo XLR/Jack in/outputs, stereo XLR high-pass filter outputs, a volume control, EQ presets, phase reversal switch and status LED indicators.
FBT Audio X-Lite 12A Loudspeaker Key Features
- 2-way bi-amplified bass reflex
- FBT Custom 320mm (12”) LF woofer with 50mm (2”) voice coil
- FBT 25mm (1”) throat /35mm (1.4”)voice coil HF compression driver
- 50Hz to 20KHz Frequency Response
- 90° H x 60° V constant directivity horn
- 30° or 45° monitor taper
FBT Audio X-Sub 18SA Subwoofer Key Features
- Compact band-pass design subwoofer with high SPL and punch
- 460mm (18”) high excursion woofer with 75 mm (3”) voice coil
- Frequency response from 38Hz to 120Hz
- 1200W Class D power amplifier with switch mode supply
- Digital Signal processor with 6 presets, 2 equalization with 2 LPF crossover settings
- Control panel with stereo combo XLR/Jack in/outs, Stereo XLR HP-Filter outs, Volume, EQ presets, phase reversal switch 0°-180°, status LED indicators
- 18mm plywood cabinet with scratch & scuff resistant paint finish
- M20 (20mm) top mount speaker stand socket, two FBT design aluminum handles, 100mm optional wheels
- Provides additional low frequency reinforcement when used along with X-PRO or X-LITE speaker series
FBT Audio X-Lite 12A Loudspeaker Technical Specifications
- Configuration: 2 Way
- Built-in amplifier peak LF/HF: 800/200w
- Frequency response: 50Hz - 20kHz
- Low Frequency woofer: 12" with 2" VC
- High Frequency driver: 1" with 1.4" VC
- Maximum SPL cont/peak: 127dB
- Dispersion: 90 x 60 (HxV)
- Input impedance: 22kohm
- Input connector: XLR with link out, stereo in (RCA + Jack), Stereo split out
- Power cord: 5m IEC
- Net Dimension (WxHxD): 370 x 640 x 370mm
- Net Weight: 15kg
- Transport Dimension (WxHxD): 450 x 450 x 720mm
- Transport Weight: 18.5kg
- Code: 38283
FBT Audio X-Sub 18SA Subwoofer Technical Specifications
- Configuration: 1 Way
- Built-in amplifier peak LF/HF: 1200W
- Frequency response: 38Hz to 120Hz
- Low Frequency woofer: 18
- Maximum SPL cont/peak: 136dB Half-space
- Dispersion: Omnidirectional
- Input impedance: 22 Kohm
- Input connector: XLR/Jack Combo (Stereo)
- Power cord: 5m IEC
- Net Dimension (WxHxD): 510 x 692 x 650 mm
- Net Weight: 42kg
- Transport Dimension (WxHxD): 700 x 840 x 800 mm
- Transport Weight: 46kg
- Code: 38772
