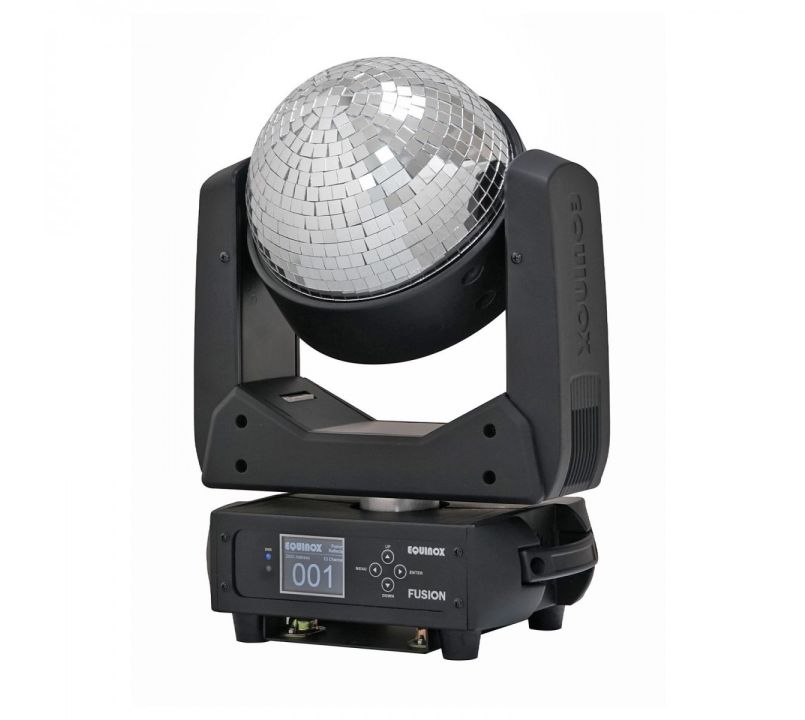

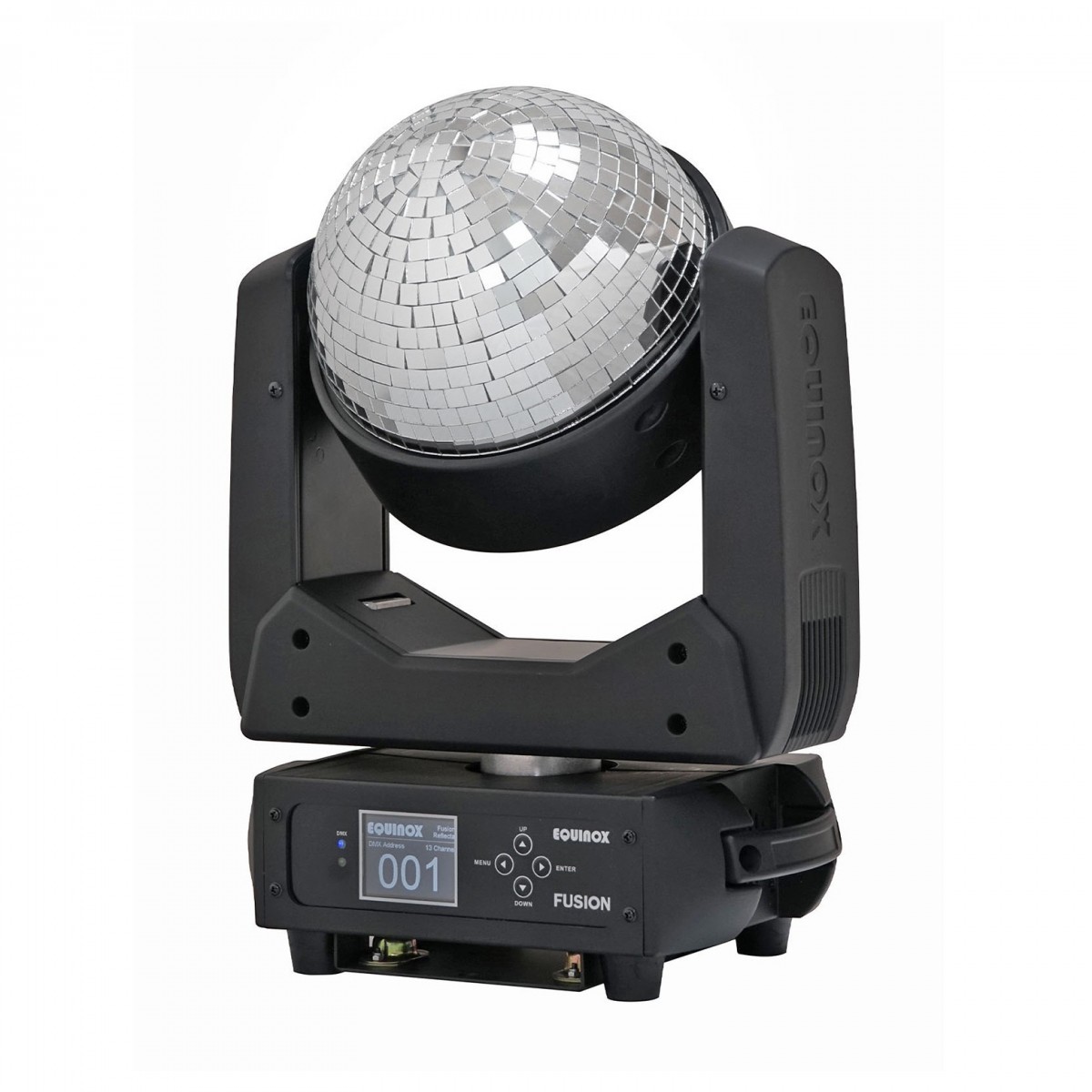

Equinox Fusion Reflecta Moving Head
In-stock with brand - delivery 10-14 days
SKU
EQLED079
£346.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
Introducing the Fusion Reflecta, a cutting-edge moving head that redefines versatility in lighting design. This exceptional fixture combines a flat reflective mirror, a half mirror ball, and an LED ring, making it an essential addition to any light show.
- See full product description
Introducing the Fusion Reflecta, a cutting-edge moving head that redefines versatility in lighting design. This exceptional fixture combines a flat reflective mirror, a half mirror ball, and an LED ring, making it an essential addition to any light show.
The Fusion Reflecta features a highly reflective flat mirror with a diameter of 178mm, capable of projecting powerful beam effects across large venues. With a quick DMX value adjustment, the mirror flips 180 degrees to unveil the captivating mirror ball, distributing hundreds of shimmering light shards throughout the room when illuminated by compatible fixtures.
Equipped with a 200mm diameter half mirror ball, the Fusion Reflecta offers variable rotation speed and continuous 360° tilt, enhancing its dynamic capabilities. Surrounding the flat mirror are 50 tri-colour 5050 SMD LEDs arranged in a ring format, providing additional versatility and colourful accents to your lighting setup.
The Fusion Reflecta operates on selectable DMX channels (3, 5, 8, 13, 16, 85, or 88) and includes a manual mode for easy control. Its pan and tilt features boast auto-correction, with 16-bit positioning that allows for an impressive 540° pan and an uninterrupted 360° tilt. Plus, the mirror ball rotates continuously in both directions, ensuring a captivating display from any angle.
Installation is a breeze with the included quick-release omega clamps, which accommodate various orientations thanks to their square hole spacing. Control your lighting effortlessly using the user-friendly 4-button menu paired with a 2.6” LCD display. Connectivity options include PowerTwist TR1 input/output, along with 3-pin and 5-pin XLR input/output ports. The Fusion Reflecta is also convection cooled, ensuring reliable performance without overheating.
- Moving head light with additional reflectors for unique effects
- Half reflective mirror, half mirror ball, and LED ring to add versatility to lighting design
- Quality mirrors reflect up to 99% of original light source
- 50 tri-colour SMD LEDs deliver sharp RGB lighting
- Up to 88 channels of DMX control
- Manual mode for direct hands-on control
- Pan and tilt auto-correction for precise movement
- 16-bit pan and tilt resolution improves smoothness of movements
- Continuous 360° mirror ball rotation in both directions for wide beam coverage
- Includes quick release Omega clamps make setup fast and easy
- Four-button menu with LCD display allows settings configuration and DMX address
- PowerTwist TR1 power inputs and outputs for power daisy chaining
- 3-pin and 5-pin XLR DMX inputs and outputs for DMX chaining fixtures
- Convection cooling system is silent and regulates temperature for stability
- Product Code: EQLED079
- Power Consumption: 30 W
- Power Supply: 100 ∼ 240 V, 50/60 Hz
- Fuse: F2A 250 V
- Dimensions (H x W x D): 403 x 304 x 217 mm
- Weight: 8 kg
