ECLER WARM2 Professional Two-channel Analogue Rotary DJ Mixer

BACK-ORDER - Estimated Stock Arrival: 07-07-2024
SKU
ECLER-WARM2
£589.00

dividebuy-logoCheck your eligibility

Fast check - won't affect your credit rating.

Seen it cheaper? We aim to match authorised UK dealers

Quick overview

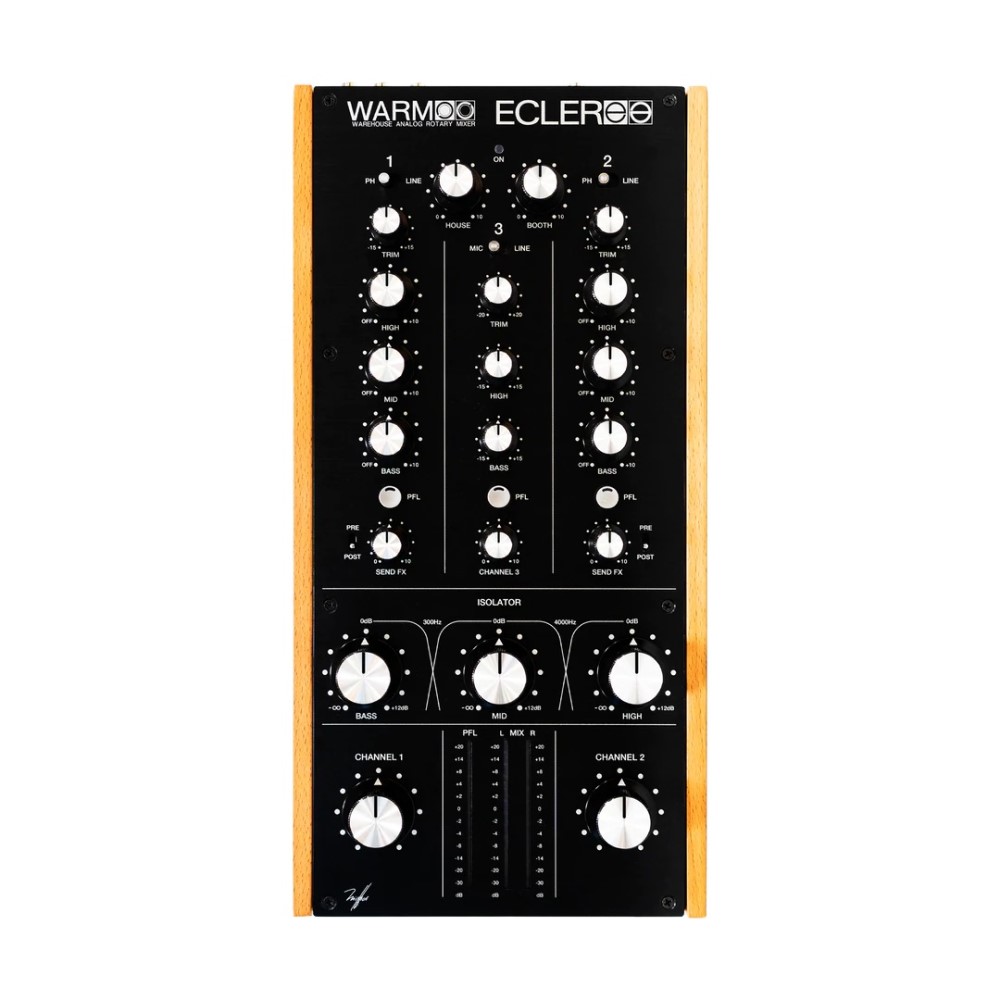

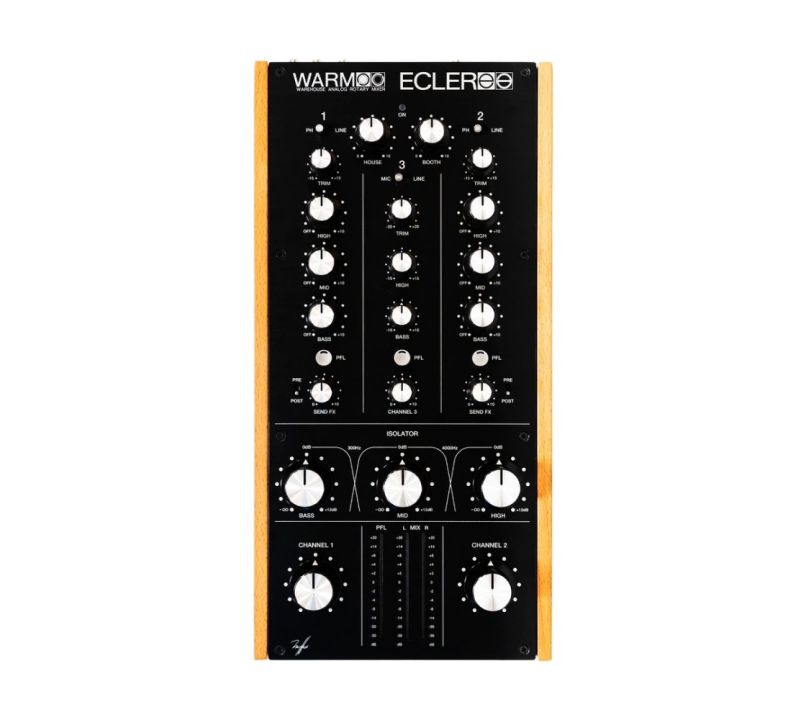

The WARM2 is a professional two-channel analogue rotary DJ mixer designed and built-in Barcelona by ECLER. It delivers a warm and crystal-clear analogue sound thanks to a micro/line channel, two phono/line channels, classic sharp filters, and a 4th order Isolator which is all encased within a narrow portable format.

  • See full product description

The WARM2 is a professional two-channel analogue rotary DJ mixer designed and built-in Barcelona by ECLER. It delivers a warm and crystal-clear analogue sound thanks to a micro/line channel, two phono/line channels, classic sharp filters, and a 4th order Isolator which is all encased within a narrow portable format.

Additionally, the mixer features Alps Blue Velvet Potentiometers that provide ultimate precision, and the function of the 4th order isolator removes frequencies which in turn creates a more dramatic acapella track by enhancing musical riffs or creating a tremolo effect.

Rotary mixers have a unique feel by creating smoother and subtle transitions. To provide the best professional grade in quality and reliability, all circuits are strictly designed, mounted, and tested at ECLER facilities in Barcelona.

The WARM 2 mixer is easily transportable and has a width of 18.5 cm, making it the narrowest DJ mixer on the market. Do not be fooled by its compact size, though. It has excellent features, including a 3-band EQ + Trim, Pre/Post fader selector, and FX Send control.

ECLER has over 50 years of experience in analogue and audio design, and the WARM 2 DJ mixer is proof of their knowledge and expertise.

  • 2+1 Mixing channels
  • 1 MICRO input
  • 2 PHONO inputs
  • 3 LINE inputs
  • MasterOutput (HOUSE) on XLR and RCA connectors
  • Booth Output on RCA connectors
  • 6.3mm Jack and 3.5mm mini-jack Headphone Monitor Outputs
  • 3 band full cut EQ for main channels and 2 band full cut EQ for MICRO/ LINE channel
  • 3 bands isolator (300Hz and 4KHz, -∞/+12dB, 4th order 24dB/ oct)
  • Maximum Output without distortion: 21dBV (23dBu)
  • Mechanised from a solid block of aluminum knob, without visible screw. Ecler Unique design
  • Alps Blue Velvet Potentiometers
  • FX Send control and Pre/Post fader selector
  • Screen-printed faceplate by selective anodizing
  • Wooden side panels included

Audio Performances

Inputs Sensitivity nom/Impedance

  • LINE: 0dBV/50kΩ
  • PHONO: -40dBV/50kΩ
  • MICRO: -50dBV/>1kΩ
  • FX RETURN: 0dBV/>6kΩ

Outputs Level/ Minimum Load

  • HOUSE (BAL): 0dBV/600Ω1V *(+12dB 4V)
  • HOUSE (UNBAL): 0dBV/2.2kΩ1V *(+12dB 4V)
  • BOOTH (UNBAL): 0dBV/2.2kΩ1V *(+12dB 4V)
  • REC: 0dBV/10kΩ
  • HEADPHONES: 200mΩ/200ΩTHD 1%
  • FX SEND: 0dBV/2.2kΩ

Frequency Response

  • LINE: 10Hz÷30kHz -1dB
  • MICRO: 10Hz÷25kHz -1dB
  • PHONO: RIAA ±0.5dB
  • FX RETURN: 10Hz÷50kHz -1dB

THD+N

  • LINE: <0.006%
  • MICRO: <0.9%
  • PHONO: <0.08%
  • FX RETURN: <0.005%

CMMR

  • MICRO: <70dB @ 1kHz

Signal Noise Ratio

  • LINE: >99dB
  • MICRO: >85dB
  • PHONO: >98dB
  • FX RETURN: 100dB

Max Undistorted Output Level

  • HOUSE (Electr.BAL): 21dBV (23dBu)
  • HOUSE (UNBAL): 21dBV (23dBu)
  • BOOTH (UNBAL): 21dBV (23dBu)

Trim Control

  • INPUTS 1-2: ± 15dB
  • INPUT: 3: ± 20dB

Tone control Inputs 1-2

  • BASS: +10/-30dB
  • MID: +10/-25dB
  • TREBLE: +10/-30dB

Tone control Input 3

  • BASS: ± 15dB
  • TREBLE: ± 15dB

Tone control Isolator

  • BASS: +12/-70dB
  • MID: +12/-40dB
  • TREBLE: +12/-70dB

Tone Filter cut frequency at -6dB (slope 12dB/oct)

  • BASS: 200Hz
  • MID: 200Hz÷6.8kHz
  • TREBLE: 6.8kHz

Isolator cut frequency at -6dB (slope 24dB/oct)

  • BASS: 300Hz
  • MID: 300Hz÷4kHz
  • TREBLE: 4kHz

Inputs - Connectors

  • LINE 1-2-3: RCA STEREO
  • PHONO 1-2: RCA STEREO
  • MICRO 3: 6.3mm TRS BAL. JACK
  • FX RETURN: RCA STEREO

Outputs - Connectors

  • HOUSE (BAL): XLR STEREO
  • HOUSE (UNBAL): RCA STEREO
  • BOOTH: RCA STEREO
  • FX SEND: RCA STEREO
  • REC: RCA STEREO
  • HEADPHONES: 6.3mm/3.5mm STEREO JACK

Miscellaneous

  • Control Mode: Rotary with Alps Blue Velvet Potentiometers
  • Phantom Voltage: 18VDC/5mA Max (Default ON)
  • MIX and PFL VU-Meter: LED 12 segments (-30dBV ÷ +20dBV)

Operation

  • Operation Temperature: -5 ̊C -45 ̊C / 23 ̊F -113 ̊F
  • Humidity: 20-90% RH (no condensation)

Supply

  • Mains voltage: 90-264VAC 47-63Hz
  • Rated power consumption: 30VA

Mechanical

  • Dimensions (without wooden sides): 400x185x100mm / 15.7"x7.2"x3.9"
  • Weight: 3.6kg / 7.94lbs
