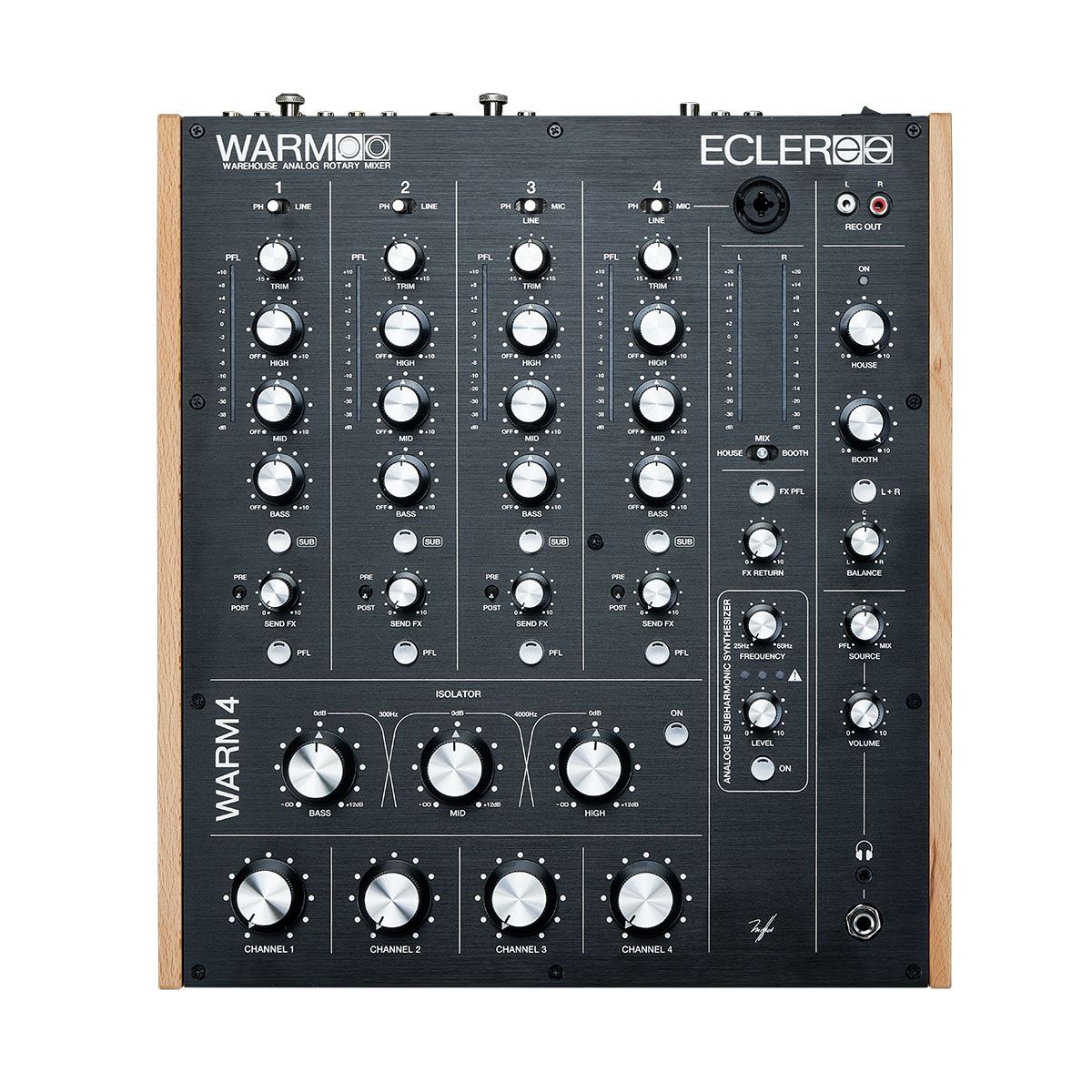

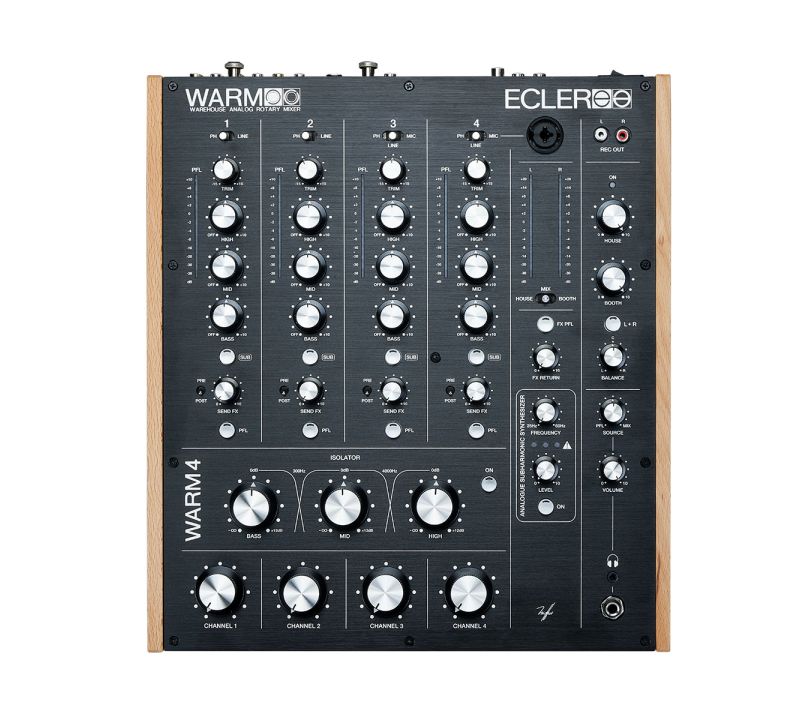

Ecler WARM4 Four Channel Analogue Rotary Mixer
Availability:In stock
SKU
WARM4
£1,399.00
Representative Example:
A loan of £2,000.00 over
48 months
will cost you £54.32 per month
at a representative 14.90% APR.
The total cost after 48 months
is £2,595.40,
which includes £595.40 interest
at 14.90% fixed and a £0 fee.
The total amount of credit is £2,553.42.
Check your eligibility Fast check - won't affect your credit rating.
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
Ecler WARM4, is a top-of-the-line four-channel analogue rotary DJ mixer. Produced in Barcelona by ECLER, this mixer boasts 4 phono/line channels, 2 MIC inputs, classic sharp filters, and a 4th order Isolator. But what really sets WARM4 apart is its Analogue Subharmonic Synthesiser, a unique feature that allows you to create and enhance ultra-low frequencies per channel. If you're looking for a great sounding rotary mixer that can handle any DJ set with ease, Ecler WARM4 has you coverd.
- See full product description
Ecler WARM4, is a top-of-the-line four-channel analogue rotary DJ mixer. Produced in Barcelona by ECLER, this mixer boasts 4 phono/line channels, 2 MIC inputs, classic sharp filters, and a 4th order Isolator. But what really sets WARM4 apart is its Analogue Subharmonic Synthesiser, a unique feature that allows you to create and enhance ultra-low frequencies per channel. If you're looking for a great sounding rotary mixer that can handle any DJ set with ease, Ecler WARM4 has you coverd.
This innovative dj tool is the first of its kind, with a circuit that allows the subharmonic generator to be tuned to different frequencies. Inspired by the original device installed in the Paradise Garage booth, warm4s' synthesizer allows djs to adapt the subharmonic generator according to the recorded song and the features of the sound system. Ecler are excited to introduce this groundbreaking tool to the music industry and can't wait to see the incredible mixes that will result from using it.
With the 4th order Isolator filter which is already included in WARM2, 4 mixing channels, 3-band full EQ cut per channel, and Alps metal shaft high-quality potentiometers, WARM4 offers unparalleled quality and ease of use. And with the ability to send the PRE/POST fader signal, as well as regulate and pre-listen to the amount of effects return, using your favourite external effects module has never been easier. Upgrade your audio setup today with WARM4.
WARM4 boasts revolutionary technology that is specially designed for sound systems capable of reproducing subsonic frequencies, making Warm 4 DJ Mixer perfect for clubs, festivals, and events where subwoofers are of vital importance. With WARM4, you can bring an unprecedented experience to your audience on the dancefloor, offering a different way of feeling the music.
- 4 Mixing channels.
- 4 PHONO inputs.
- 4 LINE inputs.
- 2 MICRO inputs.
- Master Output on XLR and RCA connectors.
- Booth Output on XLR and RCA connectors.
- Headphone Monitor Output on 6.3mm Jack and 3.5mm mini-jack.
- 3 band isolator full cut EQ.
- 3 band isolator (300Hz and 4KHz, -∞/+12dB, 4th order 24dB/oct ).
- Analogue Subharmonic Synthesizer for sub-bass frequency reinforcement selectable per channel.
- Maximum Output without distortion: 21dBV (23dBu).
- FX Send control and Pre/Post fader selector per channel.
- FX Return control and PFL.
- Alps metal shaft high quality potentiometers.
- Mechanized from a solid block of aluminum knob, without visible screw. Ecler Unique design.
- Wooden side panels included.
Applications
- Night Clubs
- DJs studios
- Itinerant DJ performances
AUDIO PERFORMANCES
Number of Inputs
- LINE 4 Stereo Unbalanced Inputs
- PHONO 4 Stereo Unbalanced Inputs
- MICRO 2 Mono Balanced Inputs
- FX RETURN 1 Stereo Unbalanced Input
Connectors type
- LINE 1-2-3-4 RCA STEREO
- PHONO 1-2-3-4 RCA STEREO
- MICRO 3 XLR3-F
- MICRO 4 Combo XLR3F-6.3mm TRS BAL
- FX RETURN RCA STEREO
Inputs Sensitivity nom/Impedance
- LINE 0dBV/50kΩ
- PHONO -40dBV/50kΩ
- MICRO -50dBV/>1kΩ
- FX RETURN 0dBV/>6kΩ
Performances
Frequency Response
- LINE 10Hz÷30kHz -1dB
- MICRO 10Hz÷25kHz -1dB
- PHONO RIAA ±0.5dB
- FX RETURN 10Hz÷50kHz -1dB
THD+N
- LINE <0.004%
- MICRO <0.7%
- PHONO <0.06%
- FX RETURN <0.001%
CMMR
- MICRO >75dB @ 1kHz
Signal Noise Ratio
- LINE >105dB
- MICRO >90dB
- PHONO >100dB
- FX RETURN >110dB
Trim control
- INPUTS 1-2-3-4 ± 15dB
Tone control Inputs 1-2-3-4
- BASS +10/-30dB
- MID +10/-25dB
- TREBLE +10/-30dB
Tone control Isolator
- BASS +12/-70dB
- MID +12/-40dB
- TREBLE +12/-70dB
Tone Filter cut frequency at -6dB (slope 12dB/oct)
- BASS 200Hz
- MID 200Hz÷6.8kHz
- TREBLE 6.8kHz
Isolator cut frequency at -6dB (slope 24dB/oct)
- BASS 300Hz÷4kHz
- MID
- TREBLE 4kHz
Analogue Subharmonic Synthesizer
- Input selective filter 50÷120Hz
- Harmonics 25÷60Hz
- synthesis
- Max Output level +12dBV
Outputs
Number of Outputs
- HOUSE 1 Stereo Balanced Outputs
1 Stereo Unbalanced Outputs - BOOTH 1 Stereo Balanced Outputs
1 Stereo Unbalanced Outputs - HEADPHONE 2 Stereo Unbalanced Outputs
- FX SEND 1 Stereo Unbalanced
- REC 1 Stereo Unbalanced
Connectors Type
- HOUSE XLR3-M STEREO - RCA STEREO
- BOOTH XLR3-M STEREO - RCA STEREO
- HEADPHONE Jack Stereo 6.3mm - Jack Stereo 3.5mm
- FX SEND RCA STEREO
- REC RCA STEREO
Outputs Level/Minimum Load
- HOUSE (BAL) 0dBV/600Ω 1V *(+12dB 4V)
- HOUSE (UNBAL) 0dBV/2.2kΩ 1V *(+12dB 4V)
- BOOTH (BAL) 0dBV/2.2kΩ 1V *(+12dB 4V)
- BOOTH (UNBAL) 0dBV/2.2kΩ 1V *(+12dB 4V)
- REC 0dBV/10kΩ
- HEADPHONES 200mΩ/200Ω THD 1%
- FX SEND 0dBV/2.2kΩ
Max Undistorted Output Level
- HOUSE (Electr.BAL) 21dBV (23dBu)
- BOOTH (Electr.BAL) 21dBV (23dBu)
- HOUSE (UNBAL) 21dBV (23dBu)
- BOOTH (UNBAL) 21dBV (23dBu)
MISCELLANEOUS
- Control Mode Rotary with Alps Blue Velvet Potentiometers and Alps RK09L
potentiometers - Phantom Voltage 18VDC/5mA Max (Default ON)
- Input VU-Meter LED 12 segments (-38dBV ÷ +10dBV)
- House-Mix-Booth VU-Meter LED 12 segments (-30dBV ÷ +20dBV)
- Subharmonic Output VU-Meter LED 3 Segments (-20dBV / 0dBV / +4dBV)
ELECTRICAL
- Power Supply Internal
- AC Mains Voltage 90-264VAC 47-63Hz
- AC Main Connector 15A IEC inlet connector
- Rated power consumption 39 VA
PHYSICAL
- Operating Temperature -5 ̊C ÷ 45 ̊C / 23 ̊F ÷ 113 ̊F
- Operating Humidity 20 - 90% RH (no condensation)
- Storage Temperature -10°C ÷ 50 ̊C / 14°F ÷ 122 ̊F
- Storage Humidity <90% RH (no condensation)
- Installation Options Desktop or Rack mount with optional accessories
- Included Accessories IEC Cable EU
- Dimensions (WxHxD) 34.0 x 8.1 x 37.2 cm / 13.39 x 3.19 x 14.65 in
- Weight 5.32 Kg / 11.73 lb
- Shipping Dimensions (WxHxD) 49.5 x 17.5 x 43.5 cm / 19.49 x 6.89 x 17.13 in
- Shipping Weight 6.74 Kg / 14.86 lb
