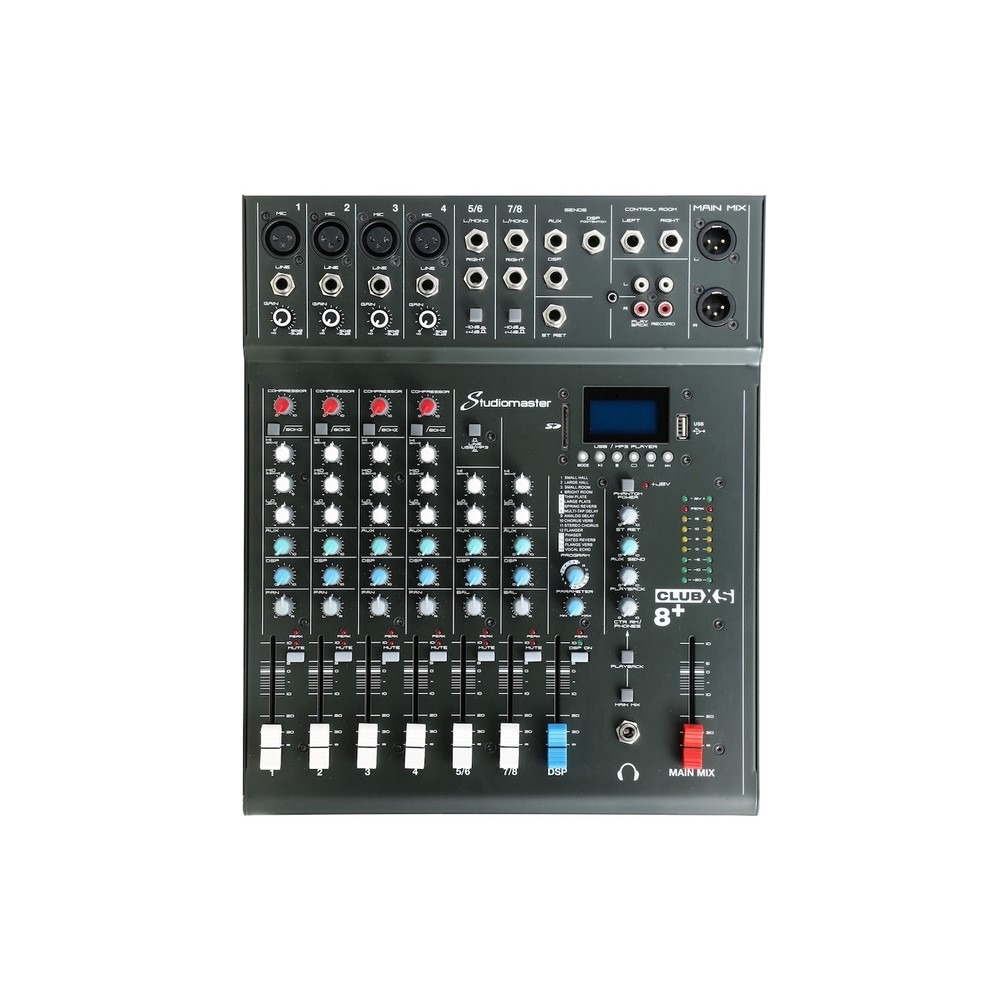

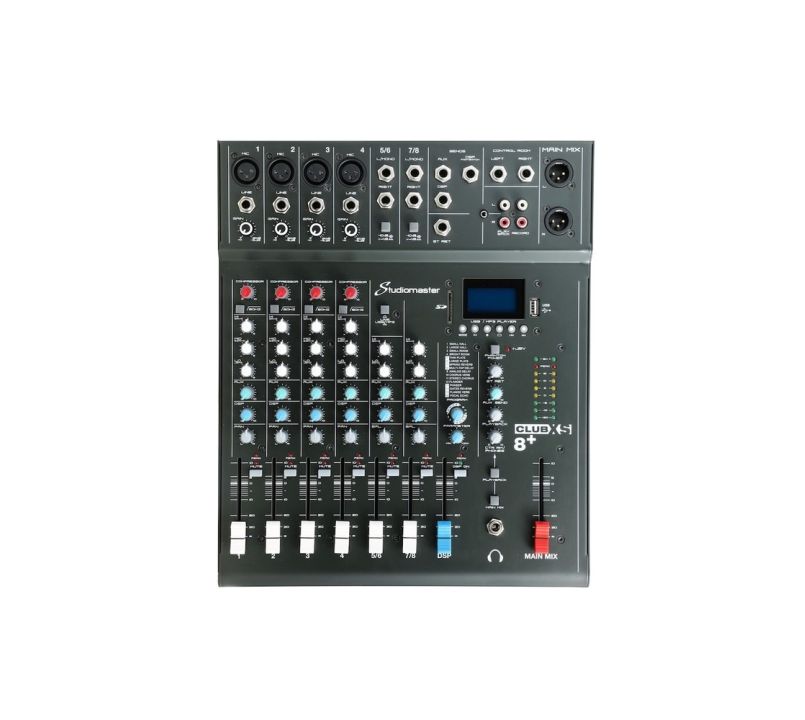

Studiomaster CLUB XS 8+ PA Mixer with Effects & Bluetooth
Availability:In stock
SKU
130051
£195.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
The Studiomaster Club XS 8+ mixer is ultra-compact, lightweight, high-quality, and incredibly adaptable, making it ideal for any live performance or home recording circumstance.
- See full product description
The Studiomaster Club XS 8+ mixer includes standard club features, along with a DSP On/Off foot switch socket, an aesthetic modification, revised control knobs, and a Studiomaster digital black finish.
The compact, portable mixer features 8 inputs, Bluetooth connectivity, built-in DSP effects, and USB/SD card playback and recording capabilities. It also features a 3 band EQ on mic channels, 2-band EQ on stereo channels, 2 auxiliaries, balanced mic/line connectors, compressor control and a handy mute switch for all mic and line input channels. There are additionally balanced XLR connectors for the main outputs, jacks for auxiliaries and the control room, and phono connectors for analogue recording and playback.
The Club XS mixer is ultra-compact, lightweight, high-quality, and incredibly adaptable, making it ideal for any live performance or home recording circumstance.
- 8 inputs (4 mic channels, 2 stereo channels)
- 16 DSP effects (reverb, delay, and stereo effects)
- Bluetooth playback capability
- USB/SD card media module for playback and recording
- Compressor and 100Hz high-pass filter on all mic channels
- Mute button on each channel
- 3-band EQ on mic channels for detailed tone adjustments
- 2-band EQ on stereo channels for adding warmth to instruments
- AUX & DSP outputs for monitor mixes and external effects
- Stereo return with intuitive level control
- RCA/Phono playback and recording support
- Headphones and control room outputs for full monitoring
- +48V phantom power on mic channels for condenser microphones
- Inputs: 8
- Mic Inputs: 4
- Stereo Inputs: 2
- Mic Gain Range: 6dB to 50dB
- Line Gain Range: 10dB to 34dB
- EIN: -100dB
- Frequency Response: 10Hz – 20kHz (+1/-3dB)
- THD Mic Channel: <0.1%
- Signal to Noise Ratio: 80dB
- Output Levels: Max +26dB (Bal), +20dB (unBal)
- EQ: Hi 12kHz, Mid 2.5kHz, Lo 45Hz, Lo cut 80Hz
- USB/SD: MP3 Audio playback
- Record: To USB drive or SD card (128kbps mono)
- DSP Effects: 16 DSP effects
- Power Requirements: 100V – 240V ~
- Dimension (W x H x D): 305 x 80 x 365 (mm)
- Weight: 4.5kg
