Studiomaster CLUB XS 10+ PA Mixer with Effects & Bluetooth
Availability:In stock
SKU
130052
£230.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview

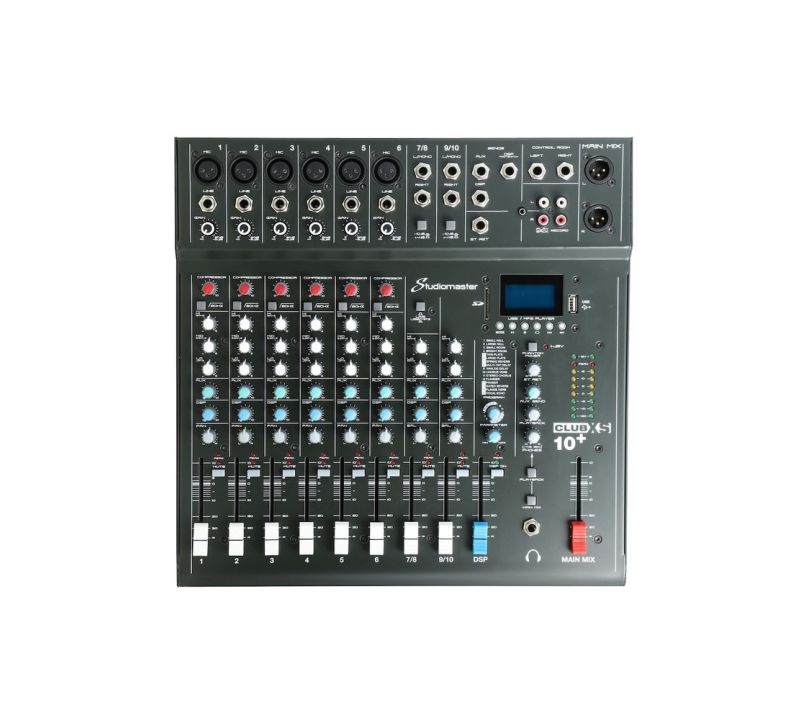

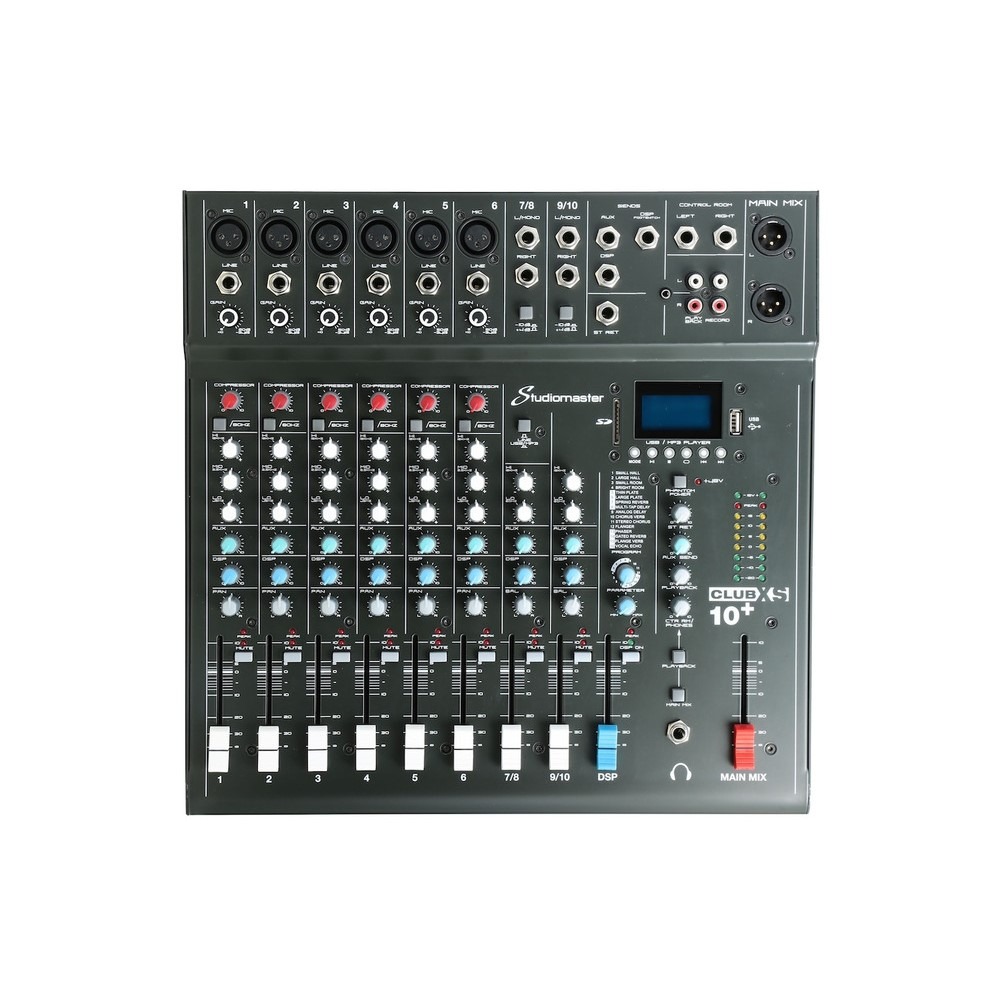

The Studiomaster Club XS 10+ mixer is compact, lightweight, high-quality, and incredibly adaptable, making it ideal for any live performance or home recording circumstance.
- See full product description
The Studiomaster Club XS 10+ mixer includes standard club features, along with a DSP On/Off foot switch socket, an aesthetic modification, revised control knobs, and a Studiomaster digital black finish.
The compact, portable mixer features 10 inputs, Bluetooth connectivity, built-in DSP effects, and USB/SD card playback and recording capabilities. It also features a 3 band EQ on mic channels, 2-band EQ on stereo channels, 2 auxiliaries, balanced mic/line connectors, compressor control and a handy mute switch for all mic and line input channels. There are additionally balanced XLR connectors for the main outputs, jacks for auxiliaries and the control room, and phono connectors for analogue recording and playback.
The Club XS mixer is compact, lightweight, high-quality, and incredibly adaptable, making it ideal for any live performance or home recording circumstance.
- 10 inputs (6 mic channels, 2 stereo channels)
- 16 DSP effects (reverb, delay, and stereo effects)
- Bluetooth playback capability
- USB/SD card media module for playback and recording
- DSP effects on/off footswitch socket for easy effect control
- Compressor and 100Hz high-pass filter on all mic channels
- Mute button on all channels
- 3-band EQ on mic channels for advanced tone adjustments
- 2-band EQ on stereo channels for added warmth to instruments
- AUX & DSP outputs for monitor mixes and external effects
- Stereo return with simple level control
- RCA/Phono playback and recording capability
- Headphones and control room output for comprehensive monitoring
- +48V phantom power on mic channels for condenser microphones
- Inputs: 10
- Mic Inputs: 6
- Stereo Inputs: 2
- Mic Gain Range: 6dB to 50dB
- Line Gain Range: 10dB to 34dB
- EIN: -100dB
- Frequency Response: 10Hz – 20kHz (+1/-3dB)
- THD Mic Channel: <0.1%
- Signal to Noise Ratio: 80dB
- Output Levels: Max +26dB (Bal), +20dB (unBal)
- EQ: Hi 12kHz, Mid 2.5kHz, Lo 45Hz, Lo cut 80Hz
- USB/SD: MP3 Audio playback
- Record: To USB drive or SD card (128kbps mono)
- DSP Effects: 16 DSP effects
- Power Requirements: 100V – 240V ~
- Dimension (W x H x D): 360 x 80 x 365 (mm)
- Weight: 5kg
