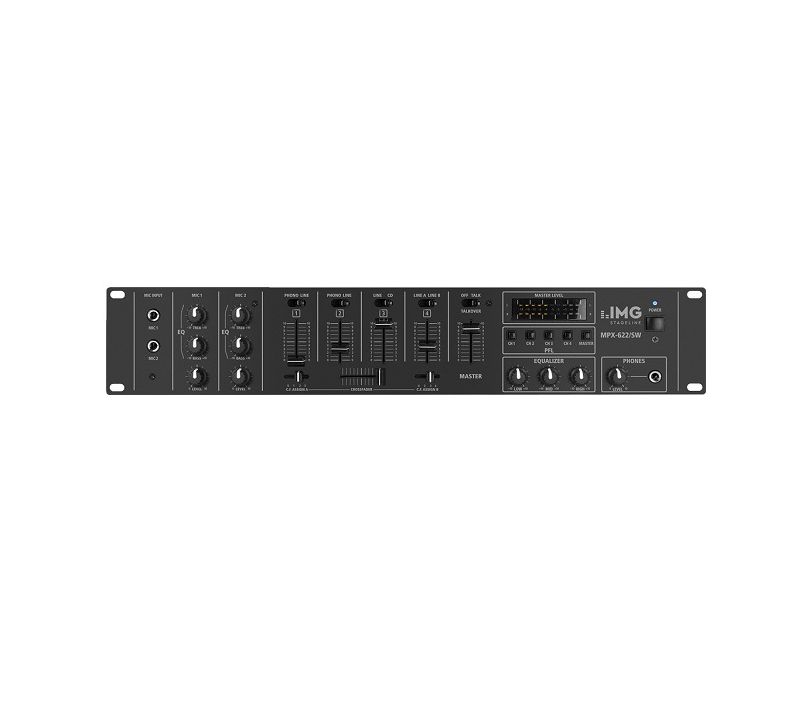

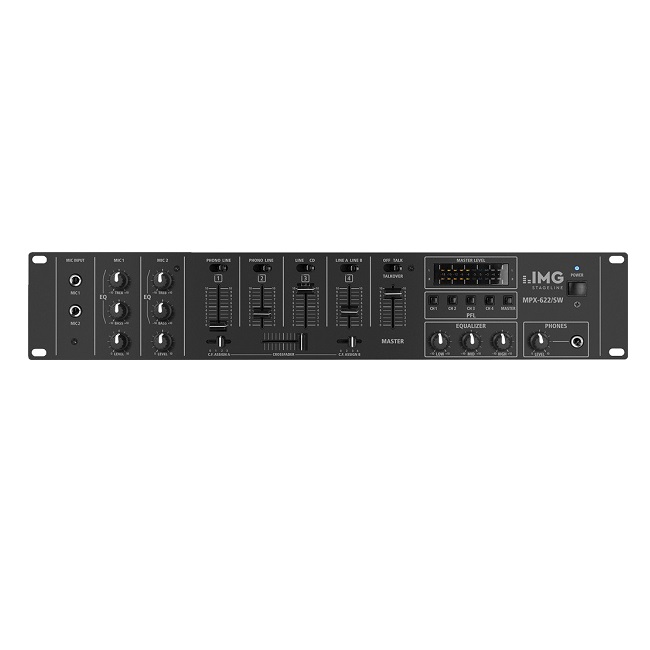

IMG Stageline MPX-622 6-Channel Stereo DJ Mixer

£169.00

Seen it cheaper? We aim to match authorised UK dealers

Quick overview

The IMG Stageline MPX-622 is a six-channel stereo DJ mixer that comes complete with four stereo inputs alongside two dedicated microphone channels and features a plethora of essential, professional DJ functions and controls.

  • See full product description
Deko Pay

0% Finance: Spend £109.00 more to qualify.

The IMG Stageline MPX-622 is a six-channel stereo DJ mixer that comes with four stereo inputs alongside two dedicated monophonic microphone channels with talkover switch and 2-band EQ controls. This mixer system is most ideal for PA systems and DJ application as well as fixed and mobile applications including mobile entertainers, music venues, schools and colleges, club and bar venues, and theatres.

The MPX-622 comes with four stereo inputs for CD and multimedia players as well as turntables, channels one and two feature switchable phono/line inputs while channels three and four make use of two individual line inputs each. The two dedicated microphone channels come with ¼-inch TRS Jack inputs, and each comes with a dedicated gain control and 2-band equaliser as well as a talkover switch that ducks the music volume when you’re using the microphones. There is one stereo RCA master output as well as a stereo RCA dedicated record output that are independent of the master output.

There is a pre-fader listen function for each input channel as well as the master channel via the adjustable stereo headphone output that enables you to monitor your cue’d tracks. The master output features a three-band equaliser as well as an LED level indicator so you can visually see when you’re overloading the system. The crossfader allows you to assign any of the input channels to master A or master B outputs and allows you to fade between tracks smoothly.

IMG Stageline MPX-622 6-Channel Stereo DJ Mixer Key Features:

  • Particularly suitable for PA and DJ applications.
  • 2 mono microphone channels with talkover switch and 2-way tone control
  • 4 stereo input channels, switchable phono/line (channels 1 and 2) or line/line (channels 3 and 4)
  • 1 stereo master output
  • 1 stereo record output, independent of the master
  • 3-way equalizer with centre click for master output and record output
  • Pre-fader listening to each stereo input channel and the master output via adjustable stereo headphone output
  • Switchable crossfader for crossfading between channels 1-4, any assignment possible
  • Stereo LED level display

IMG Stageline MPX-622 6-Channel Stereo DJ Mixer Technical Specifications:

  • No. of channels: 6
  • No. of inputs: 8
  • Mic input: 1 mV, 2 x 6.3 mm jack
  • Line input: 150 mV, 5 x RCA L/R
  • CD input: 150 mV, 1 x RCA L/R
  • Phono input: 3 mV, 2 x RCA L/R
  • Master output: 0.775 V/600 Ω, 1 x RCA L/R
  • Record output: 0.775 V/600 Ω, 1 x RCA L/R
  • Headphones: ≥ 8 Ω, 1 x 6.3 mm jack
  • Frequency range: 20-20,000 Hz
  • THD: 0.1%
  • S/N ratio: 65 dB
  • Equalizer bass: ±10 dB/100 Hz
  • Equalizer midrange: ±10 dB/1 kHz
  • Equalizer treble: ±10 dB/10 kHz
  • Talkover: -15 dB
  • Crossfader: Yes
  • Power supply: ~ 230 V/50 Hz/10 VA
  • Mains voltage: ~ 230 V
  • Mains frequency: 50 Hz
  • Power consumption, operation: 10 VA
  • Admiss. ambient temp.: 0-40 °C
  • Width: 482mm
  • Height: 89mm
  • Depth: 95mm
  • Rack spaces, RS:2
  • Weight: 2.4kg
