Denon DNX1700 Mixer / Controller (ARCHIVED)
Availability:Out of stock
SKU
Denon DNX1700 Mixer / Controller
£1,439.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
The new DNX1700 from Denon, this really could be the ultimate DJ mixer. With 2 fully assignable digital effects, matrix input system, built in sound card, midi control, full colour display and customizable in every which way.
This product is no longer available, to see more mixer options please click here.
- See full product description

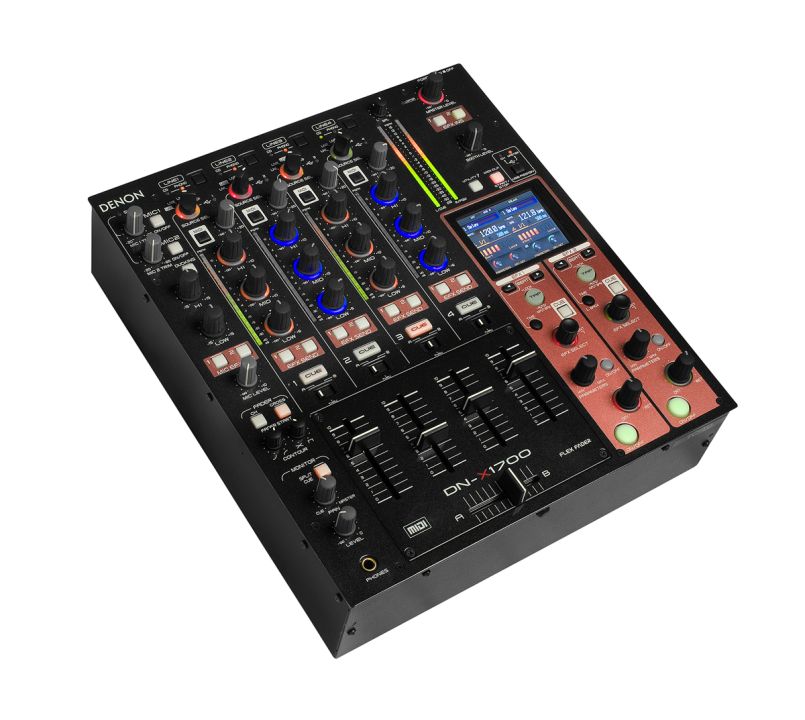

The Denon DNX1700 is a four-channel tabletop mixer with rubberised knobs, 60mm Alps K Series channel faders, 45mm FLEX cross fader, a color LCD display, extended 24-point LED channel and output metering, and LED ring metering around the control knobs.
In operation, the principal features related to the power and flexibility of the Denon DNX1700 mixer are its Matrix Input Assignment with digital input and MIDI/USB audio, independent and parametric three-band EQ with Kill on each channel, and dual independent EFX processors.
The two EFX processors are located together, with the 3.5-inch TFT colour LCD positioned directly above, for ease of operation. One or other, or both EFX are selectable per channel, and combined EFX operation is available.
Each mixer channel has a discrete MIDI layer, enabling external control of various PC and Mac Audio/Video DJ software applications, with the LED ring indicators switching colour to indicate MIDI operation. USB audio I/O extends to eight mono/four stereo in/out, making the mixer an extremely high-quality USB audio interface. Individual user settings - including for audio, system and MIDI settings - can be exported and imported in file format, saved to a USB memory device, HDD, laptop and so on.
The 32-bit floating point DSP engine at the heart of the Denon DNX1700 mixer delivers a level of processing power that provides performance in terms of signal processing quality and control. To match this processing power Denon has equipped the DNX1700 mixer with 32-bit digital analog conversion at the audio output stage.
Vinyl quality is given special attention with a high grade phono FET equalizer circuit derived from the Pure Amp circuitry of the Denon PMA SA1 audiophile stereo amplifier; this features an 88 dB signal-to-noise ratio and performance specification to complement the output of the best cartridges.
Digital audio inputs and USB ports enable direct digital connection of CD decks, laptops, MP3 players and the like - avoiding degradation of input signals by analogue connections and soundcards of varying quality, and multiple digital analogue and analogue digital conversions. Meanwhile the ASIO driver ensures low latency from PC soundcards. The attention to sound quality extends to a high-quality, low noise discrete microphone pre-amp and high power discrete headphone amplifier.
This product is no longer available, to see more mixer options please click here.
- 4-Channel Digital DJ Mixer with Studio Quality Components & Specifications
- Worlds First Professional DJ Mixer w/32-Bit DAC Output
- 24 bit 96kHz USB2.0 Audio Interface (Soundcard) 4in/4out (stereo)
- PC/MAC Compatible
- Low latency ASIO driver for PC included
- USB MIDI In/Out and 5-pin MIDI Out
- MIDI mapping for various software is available
- Dual Layer Control Available – MIDI / Normal Audio
- 2 Independent Effectors w/12 Effects available for each: Delay, Echo, Trans, Flanger, Filter, Phaser, Reverb, Loop, Rev. Loop, Pitch Shift, BeatBreaker
- Send/Return
- 2-way EFX Parameter Filter (LPF/HPF)
- Independent EFX 1 & 2 Insert for, Channel, Mic, & Master
- Matrix Input Assignment for Line/Phono and selectable USB Audio, Digital Input
- Discrete FET Phono Preamp Stage (4 phono inputs)
- Discrete Mic Circuit w/studio mixer quality specs
- Discrete high powered Headphone Amp w/studio mixer quality specs
- 45mm Cross Fader (Flex Fader) w/tension adjust & A/B cut position preset
- 60mm CP Studio quality Alps K-Type Channel Fader
- Fader Contour control for Channel and Cross Fader
- Fader Start function (channel/cross fader)
- Cross Fader assignment function: (A, B, Thru)
- Independent 3-Band Isolator EQ w/Kills (High-Mid-Low)
- 3.5 inch TFT Color Display w/animated easy navigation
- 4 Digital Inputs (coaxial)
- Selectable Digital Output (44.1/48/96kHz)
- Balanced/Unbalanced Master Output
- Balanced Booth Output
- 2 Mic Input w/Ducking level control
- Send/Return for external effectors
- Extensive Utility Menu to customize user settings
- Preset Import/Export Function by USB memory device (take your settings to another X1700 mixer)
- High Resolution 24 Segment Output Peak Meters
- Dual Power Transformer construction for best possible specs (Digital/Analog sections)
- Output Limiter function w/adjustable threshold (great for Club installers)
- Balanced XLR and phono analogue outs
- 2 x USB 2.0 ports
- 5-pin MIDI output
- 4 x digital ins/1 x digital out (44.1/48/96 kHz)
- EFX send and return
- Balanced 1/4 inch jack booth outs
- Balanced XLR and 1/4 inch jack mic inputs
- Stereo phono recording outs
- 4 x (3.5 mm) Fader Starts
- Digital output : yes
- Built in Effects : EFX send and return, Filter Delay, Loop, Pitch Shift, Beat Breaker, Echo etc
- Number of inputs : 4 x digital ins/1 x digital out (44.1/48/96 kHz), Balanced ¼ inch jack booth outs, Balanced XLR and ¼ inch jack mic inputs, Stereo phono recording outs
- Computer connectivity : 2 x USB 2.0 ports
- Digital In/Outs : 4 x digital ins/1 x digital out (44.1/48/96 kHz)
