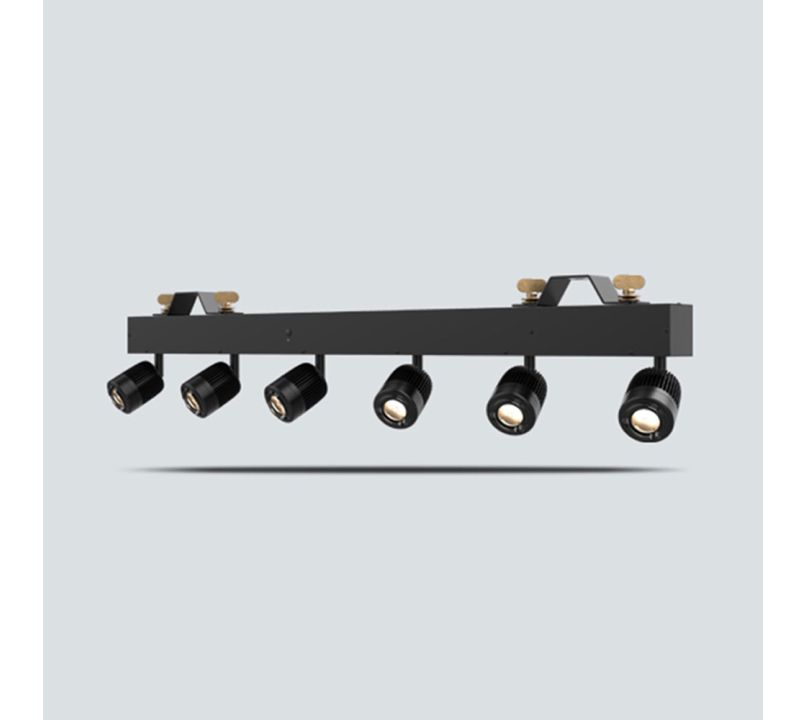

Chauvet DJ Pinspot Bar LED
BACK-ORDER - Estimated Stock Arrival: 14-01-2026
SKU
PINSPOTBAR
£400.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
The Pinspot Bar from Chauvet is a highly rated pin-spot LED, perfect for highlighting exhibitions and performances. Packed with 6 powerful pin spots, this unit can produce classic lighting effects similar to incandescent lamps. Control each head independently to create dynamic effects, adding to the unit's flexibility and potential uses.
WHAT'S INCLUDED
- Pinspot Bar
- Power cord
- 2 Omega Brackets
- 6 10° diffusers
- 6 20° diffusers
- 6 2700 K CTO filters
- Quick Reference Guide
- See full product description
The Pinspot Bar from Chauvet is a highly rated pin-spot LED, perfect for highlighting exhibitions and performances. Packed with 6 powerful pin spots, this unit can produce classic lighting effects similar to incandescent lamps. Control each head independently to create dynamic effects, adding to the unit's flexibility and potential uses.
Create impressive lighting systems using a powerCON-enabled unit, allowing you to power link/daisy-chain multiple units together, saving precious time during the setup and installation without the need for unorganised cabling.
Experiment with different beam diffusers and CTO filters to achieve the desired effect and atmosphere. Mount the Pinspot Bar LED to any setup, small or large, the Omega brackets included with the unit can be attached to bars, pipes and drapes. Choose between different operation modes suited to different needs; control the unit using the built-in digital display, using DMX control, or via an optional IRC-6 remote or D-Fi USB dongle.
WHAT'S INCLUDED
- Pinspot Bar
- Power cord
- 2 Omega Brackets
- 6 10° diffusers
- 6 20° diffusers
- 6 2700 K CTO filters
- Quick Reference Guide
- High-output bar with 6 independent pinspots designed to replicate traditional incandescent lamps
- No messy cables ensure a clean and elegant look for any upscale event
- Independent control of each head offers true flexibility and programming capabilities
- Includes various beam diffusers and 2700 K filters to help achieve the desired look
- Control via the on-board digital display, DMX, a wireless IRC-6 remote or D-Fi USB dongle
- A pair of included Omega brackets allow for multiple mounting options including pipe and drape
- PowerCon compatible power input and power linking saves time running cables
- High-output bar with 6 independent pinspots designed to replicate traditional incandescent lamps
- No messy cables ensure a clean and elegant look for any upscale event
- Independent control of each head offers true flexibility and programming capabilities
- Includes various beam diffusers and 2700 K filters to help achieve the desired look
- Control via the on-board digital display, DMX, a wireless IRC-6 remote or D-Fi USB dongle
- A pair of included Omega brackets allow for multiple mounting options including pipe and drape
- PowerCon compatible power DMX Channels: 1, 6 and 11
- DMX Connectors: 3- and 5-pin XLR
- Light Source: 6 LEDs (warm white) 15 W, (3.6 A), 50,000 hours life expectancy
- PWM Frequency: 1000 Hz
- Beam Angle: 5°
- Field Angle: 11°
- Illuminance: 7,707 lux @ 2 m (per pod)
- Power Linking: 8 units @ 120 V; 13 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 171 W, 1.4 A @ 120 V, 60 Hz, 191 W, 0.8 A @ 230 V, 50 Hz
- Weight: 9.4 lb (4.3 kg)
- Size: 39 x 4.6 x 5 in (1000 x 119 x 131 mm)
- Approvals: CE, RoHS
- Colour Temperature: 4000 K
- CRI: 81
- Bracket Mounting Hole: 13 mm
- Optional Controllers: IRC-6, D-Fi USB
