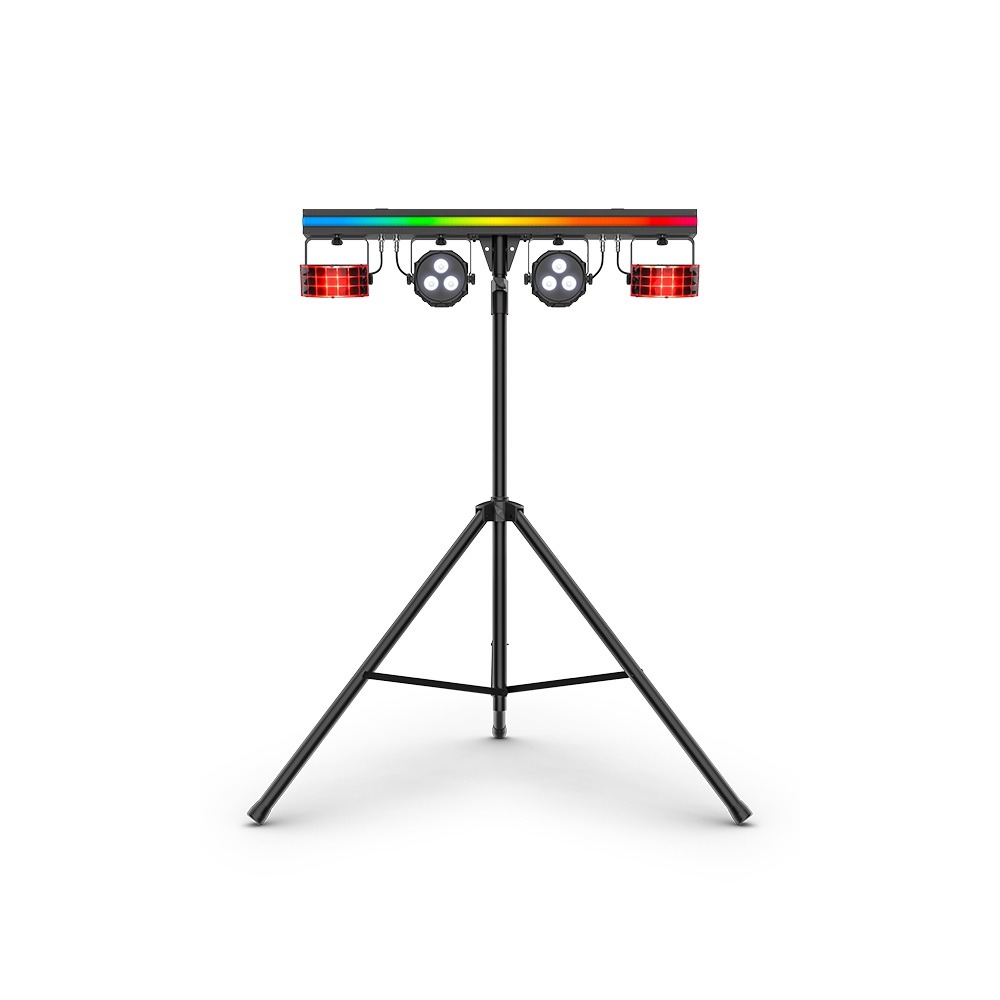

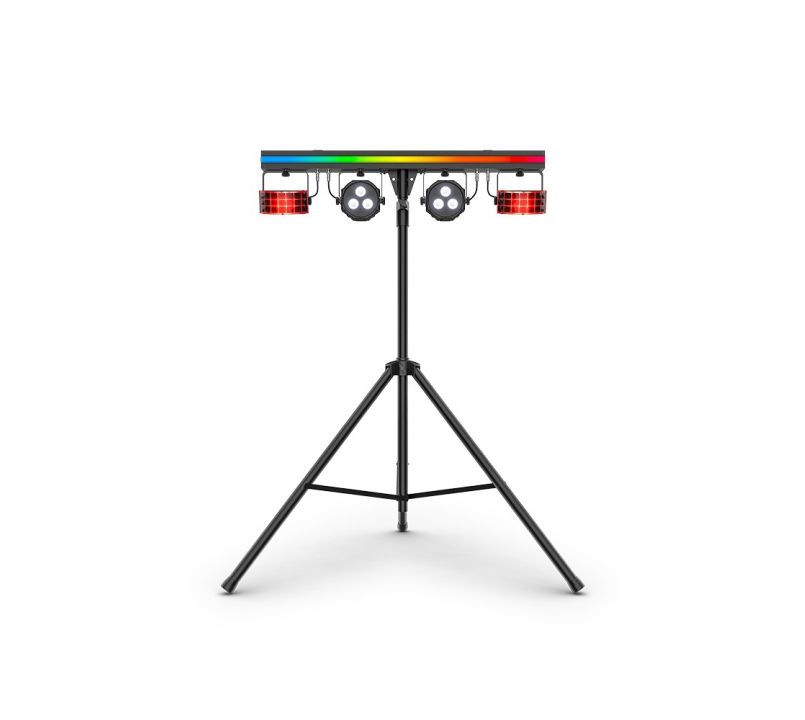

Chauvet DJ GigBAR 3.0 ILS LED Lighting System
Available to Order - Stock Incoming (Date TBC)
SKU
Chauvet DJ GigBAR 3 ILS
£389.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
The Chauvet GigBAR 3.0 ILS is a powerful all-in-one lighting solution designed to deliver maximum impact with minimum setup time.
Combining a pair of LED Derby effects, LED Pars and a built-in LED strip on a single bar, the GigBar 3 ILS creates vibrant washes, colourful beams and eye-catching effects straight out of the box. Whether you're performing at weddings, parties, corporate events or club nights, this versatile system gives you everything you need to fill the room with light.
- See full product description
The Chauvet GigBAR 3.0 ILS is a powerful all-in-one lighting solution designed to deliver maximum impact with minimum setup time.
Combining a pair of LED Derby effects, LED Pars and a built-in LED strip on a single bar, the GigBar 3 ILS creates vibrant washes, colourful beams and eye-catching effects straight out of the box. Whether you're performing at weddings, parties, corporate events or club nights, this versatile system gives you everything you need to fill the room with light.
Thanks to Chauvet's Instant Light Show (ILS) technology, the GigBar 3 ILS can wirelessly synchronise with other ILS-compatible fixtures, making it easier than ever to create a coordinated lighting setup without running additional cables. The built-in D-Fi transceiver also allows wireless DMX and ILS communication for even greater flexibility.
Designed with mobile entertainers in mind, the GigBar 3 ILS includes a tripod stand, wireless footswitch and carry bags, helping you get set up and packed away quickly. Built-in automated and sound-active programmes use all lighting effects together to create a complete show with little effort, while the full-colour LCD display makes operation simple and intuitive.
Looking to expand your rig? The GigBar 3 ILS allows you to mount up to four additional fixtures, giving you the flexibility to create a customised lighting system that grows with your needs.
- Complete 3-in-1 lighting system featuring LED Derbies, LED Pars and an LED Strip
- Built-in LED strip adds dynamic eye-candy effects to your light show
- ILS-compatible for wireless synchronisation with other ILS fixtures
- Built-in D-Fi transceiver for wireless DMX and ILS control
- Mount up to four additional fixtures for an expanded setup
- Full-colour LCD display for easy navigation and control
- Built-in automated and sound-active programmes
- Control via onboard menu, RF remote, wireless footswitch or DMX
- Power link multiple units to reduce cable runs
- Reversible tripod bracket for flexible mounting options
- Includes tripod stand, wireless footswitch and carry bags
In the Box
- Gig Bar 3 ILS
- Power cord
- Stealth filter
- Wireless footswitch
- RF remote
- Tripod
- Carrying bag
- Tripod bag
- User Manual
- DMX Channels: 2, 21, or 132
- DMX Connectors: 3-pin XLR
- Strobe Rate: 0 to 20 Hz
- Operating Frequency: 2.412 to 2.484 GHz
- Power Linking: 11 units 120 V; 18 units 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current:
- 47 W, .7A 120 V, 60 Hz
- 45 W, .4 A 230 V, 50 Hz
- Weight: 13.2 lbs. (6 kg)
- Size: 41.2 x 3.7 x 10.7 in (1047 x 94.5 x 272 mm)
- Approvals: CE, ROHS, FCC
- Light Source (pars): 6 LEDs (quad-colour RGB + UV) 3.7 W 1A), 50,000 hours life expectancy
- Light Source (LED Strip): 74 LEDs (red, green, blue) 5 W (.03 A), 50,000 hours life expectancy
- Light Source (derby): 6 LEDs (2 red, 2 green, 2 blue) 3 W (.6 A), 50,000 hours life expectancy
- Stand Height: 4.8 ft to 7.8 ft (1.5 to 2.4 m)
- Tripod leg width: 3.9 ft (1.2 m)
- Fits Tripod Size: 1.5 in (37.4 mm)
- Beam Angle (pars): 13°
- Field Angle (pars): 24°
- Coverage Angle (Derby): 114°
- Coverage angle (LED Strip): 174°
- Cable Length: 9 ft (2.844 m)
- Foot Switch Operating Frequency: 433 MHz
- Foot Switch Max Unobstructed Distance: 100 ft (30.5 m)
- Footswitch battery: 9 V 300mA
- Optional Controllers: ILS Command, RF Remote
