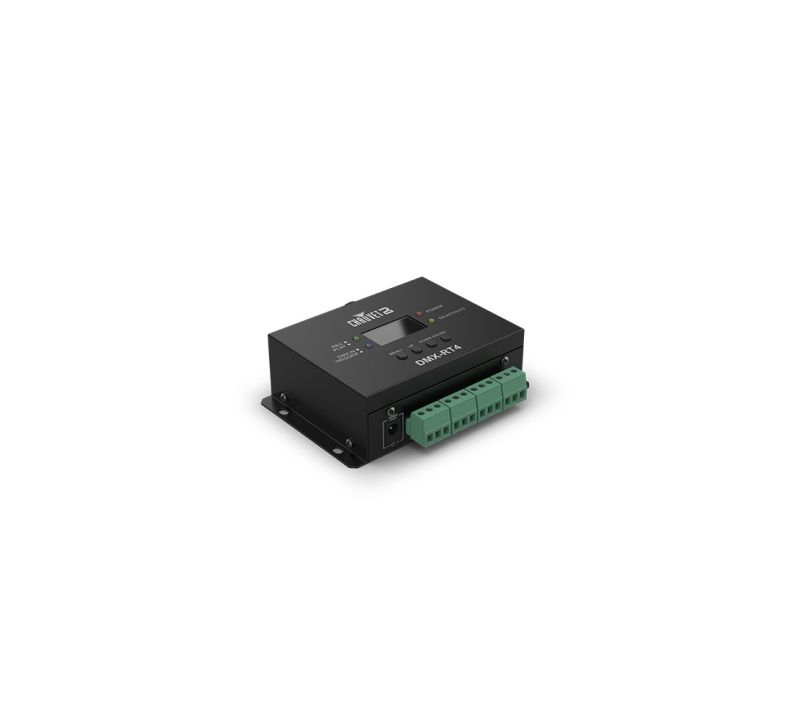

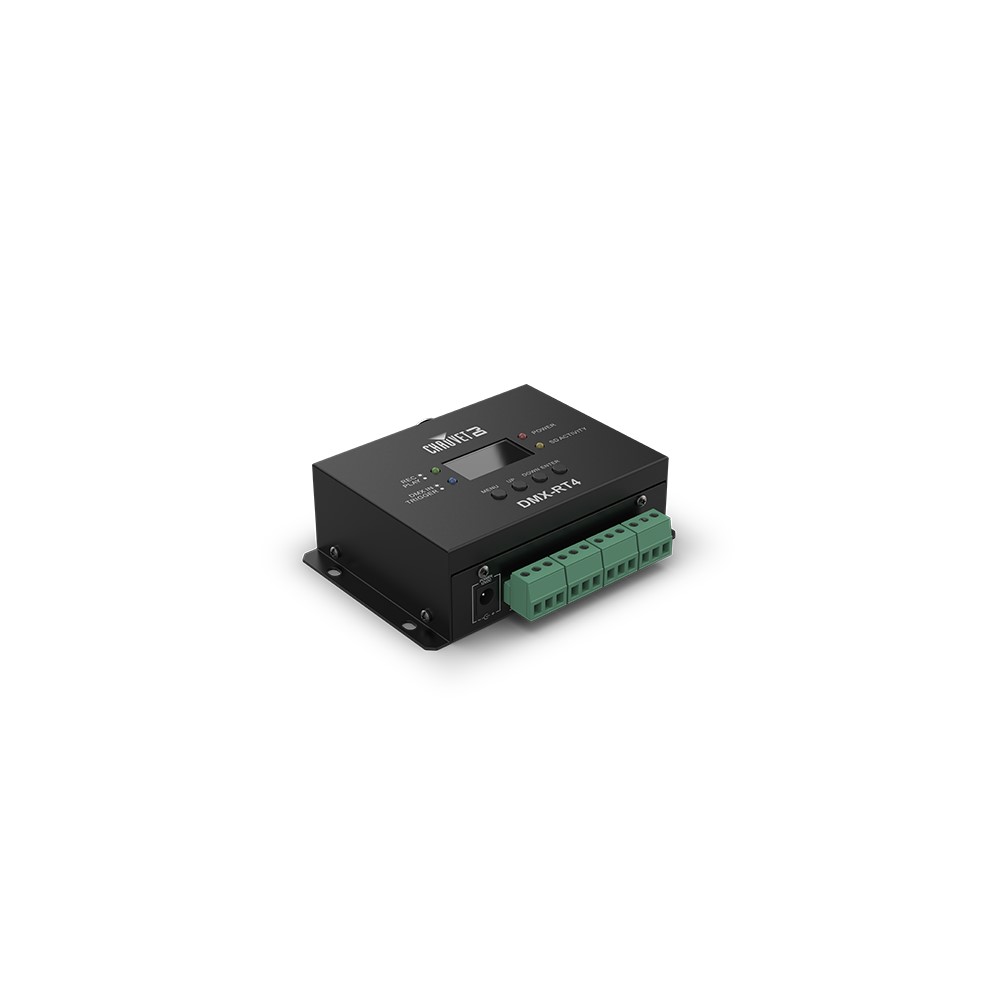

Chauvet DJ DMX-RT4 Recording and Playback Device
BACK-ORDER - Estimated Stock Arrival: 15-05-2024
SKU
DMXRT4
£180.00
Representative Example:
A loan of £2,000.00 over
48 months
will cost you £54.32 per month
at a representative 14.90% APR.
The total cost after 48 months
is £2,595.40,
which includes £595.40 interest
at 14.90% fixed and a £0 fee.
The total amount of credit is £2,553.42.
Check your eligibility Fast check - won't affect your credit rating.
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
Capturing audio and replaying DMX programming is simpler than ever thanks to the DMX-RT4. This powerful DMX recorder/player allows for four individually programmable and controlled playback triggers.
- DMX recording and playback device
- 4 independent triggers
- Each trigger can be programmed and triggered separately
- Copy, backup and transfer show files using the USB-C connector
- Password protection ensures shows will not be altered
- See full product description
Capturing audio and replaying DMX programming is simpler than ever thanks to the DMX-RT4. This powerful DMX recorder/player allows for four individually programmable and controlled playback triggers. With a Normally Open (N/O) or Normally Closed (N/C) trigger, you may connect to a wide variety of standard sensors. You can copy, backup, and transfer your shows with the USB-C connector, and you can plug in additional speakers or headphones to crank up the volume with the traditional 3.5mm headphone jack. Use a password to prevent unauthorised access to your work. To power individual triggers, the DMX-RT4 additionally provides DC electricity via a terminal block.
- DMX recording and playback device with 4 independent triggers
- Each trigger can be programmed and triggered separately
- Copy, backup and transfer show files using the USB-C connector
- Standard headphone connector (3.5mm) connects to external audio systems for amplified playback
- Password protection ensures shows will not be altered
- Normally Open (N/O) or Normally Closed (N/C) triggers allow the use of most common sensors
- Supplies DC voltage through terminal block to power specific triggers
What's Included
- DMX-RT4
- External power supply
- Quick Reference Guide
- DMX Channels: 3-pin XLR
- Input Voltage: 12 VDC, 1 A (external power supply: 100 to 240 VAC, 50/60 Hz)
- Power and Current:
- 1 W, 0.03 A @ 120 V, 60 Hz
- 1 W, 0.03 A @ 230 V, 50 Hz
- Weight: 0.4 lb (0.2 kg)
- Size: 4.8 x 3.2 x 1.5 in (122 x 81 x 38 mm)
- Approvals: CE, UKCA, RoHS
- Compatible audio formats: MP3 (32-320kbps), WAV (8 or 16bit only)
- Onboard memory: 32 GB
- Filename max length (MP3/WAV): 12 characters
- Filename max length (show file): 11 characters
- Trigger Type: auto, toggle, N/O or N/C
- Terminal Block output: 12 VDC, 100 mA
