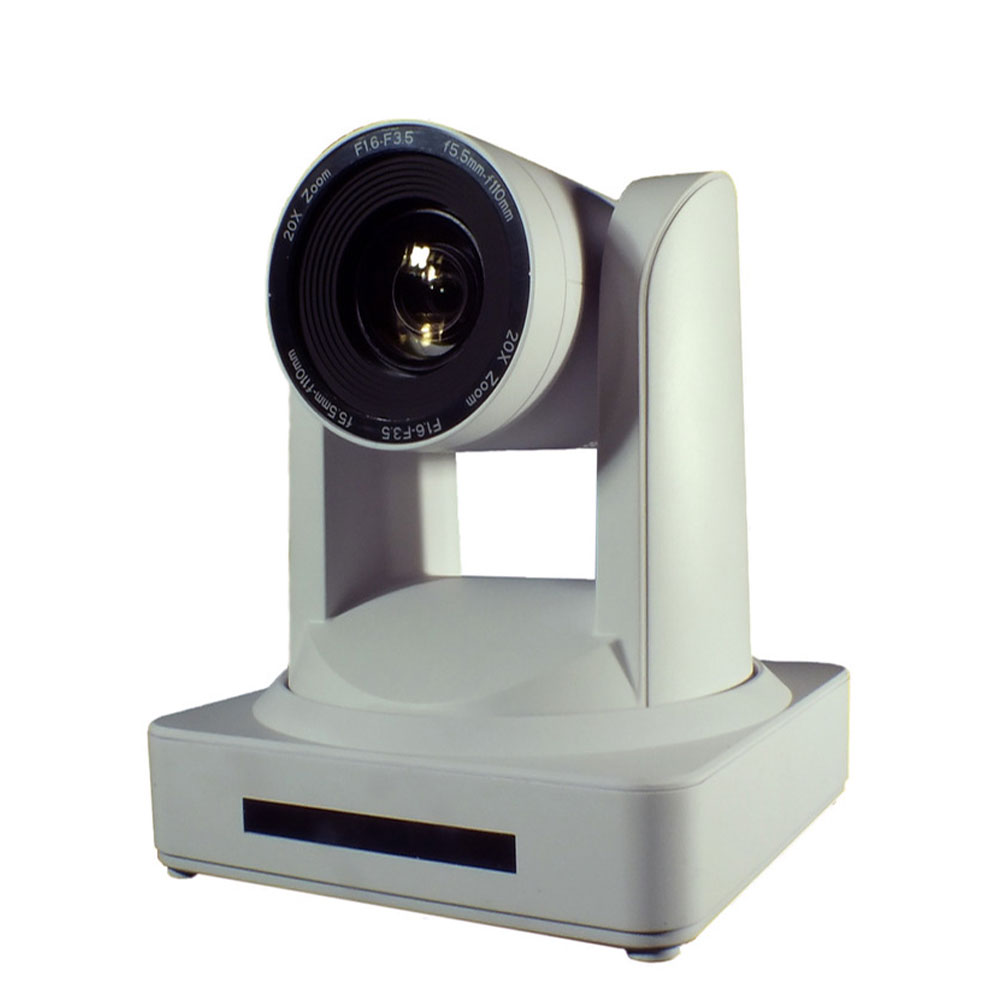

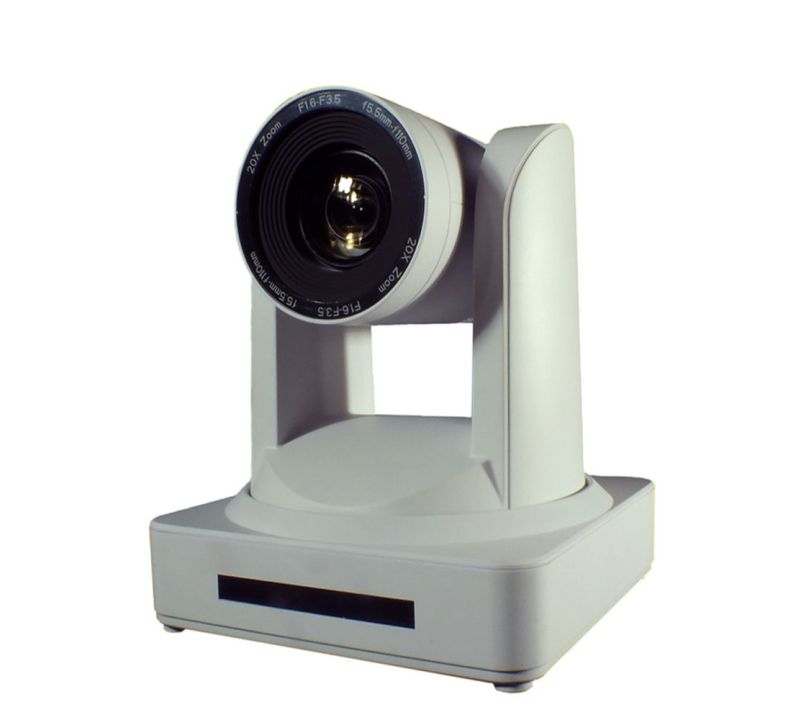

The OPTEC20 from AVessentials is a High Definition camera that consistently delivers clear images and video thanks to its advanced optics and image processing capability. The 20X optical zoom means this camera is perfect for any environment.
- See full product description
AVessentials has produced the OPTEC20 PTZ (Pan, Tilt, Zoom) camera, perfect for delivering high-quality image and video directly to your computer or mobile device. Featuring full HD 1080p video streaming @ 60Hz, SDI and HDMI output, as well as Power Over Ethernet (POE) that allows ethernet (internet) signals to pass through your standard cabling and wiring. In addition, the VISCA control protocol enables compatibility with most controllers that gives full control over your camera setup. The sleek design adds to the camera’s aesthetic, making it the perfect addition to any professional studio or setup, available in Black or White to blend into any environment.
AVessentials have included a 2-year warranty for your peace of mind.
Performance
- Sensor: High performance 1/2.8“ HD CMOS sensor
- Optical Zoom: 20x
- Digital Zoom: 10x
- Focal Length: F=5.2~98mm
- Viewing Angle: 3.3°(tele), 54.7°(wide)
- Aperture: F1.6 ~ F3.5
- Minimum Illumination: 0.5Lux (F1.8, AGC ON)
- Signal to Noise ratio: >55dB
- Pan Range: ±170° (Movement Speed 0.1 -180°/sec)
- Tilt Range: -30° ~ +90° (Movement Speed 0.1-80°/sec)
- Preset Recall Speed: Pan: 60°/sec, Tilt: 30°/sec
Camera Features
- White Balance: Auto/ Manual/ One Push/ 3000K/ 4000K/ 5000K/ 6500K
- WDR: OFF/ Dynamic level adjustment
- Image Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma
- Optics Control: Auto Focus, Auto Aperture, Auto Electronic Shutter, BLC
- Programmable Presets: 255 (only 10 via remote control)
- Configuration: On Screen Menu / Advanced http control interface
Control & Connectivity
- Video Out: 3G-SDI / HDMI
- Control Connections: (1x) RJ45 LAN Port (PoE), (1x) RS232 (In & Out), (1x) RS485 on Phoenix Connector
- Audio input: 3.5mm Jack
- Supported Control Protocols: VISCA, VISCA over IP, PELCO-D, PELCO-P
- Supported Network Protocols: RTMP, RTSO, ONVIF
- SDI/HDMI Supported Video Formats: 1080P60/50/30/25/59.94/29.97;1080I60/50/59.94;720P60/50/30/25/59.94/29.97
Electrical & Physical
- Power Supply: Either external PSU, or POE
- Input Voltage: DC12V±10%
- Current Draw: 1a (max)
- Power Consumption: 12w (max)
- Temperature Tolerance:
- Working Temperature: -10~+50°C, Store Temperature: -10~+60°C
- Humidity Tolerance
- Working Humidity: 20~80% RH, Store Humidity: 20~95% RH
- Colour: White / Black
- Dimensions: 150×150×167.5mm
- Weight: 1.4kg
- Included Accessories: Power Supply, Remote Control,
- Optional: Wall Mount Bracket / NDI
