ADJ LED Matrix Beam Lighting Effect (Archived)

£459.00

Seen it cheaper? We match authorised UK dealers

Quick overview

The ADJ LED Matrix Beam is the high-performance blinder and matrix chase lighting effect, ideal for creating emotive and dramatic lighting.

  • See full product description
Deko Pay

0% Finance: From only £36.13 per month!

The ADJ Matrix Beam LED is designed as a Blinder/Cyc effect or as a matrix chase effect for stages and mobile productions. This fixture has built-in light chases with the option to create the alphabetic and numeric characters in light via DMX. The Matrix Beam is powered by twenty-five 3-Watt warm white LEDs in a 5x5 panel.

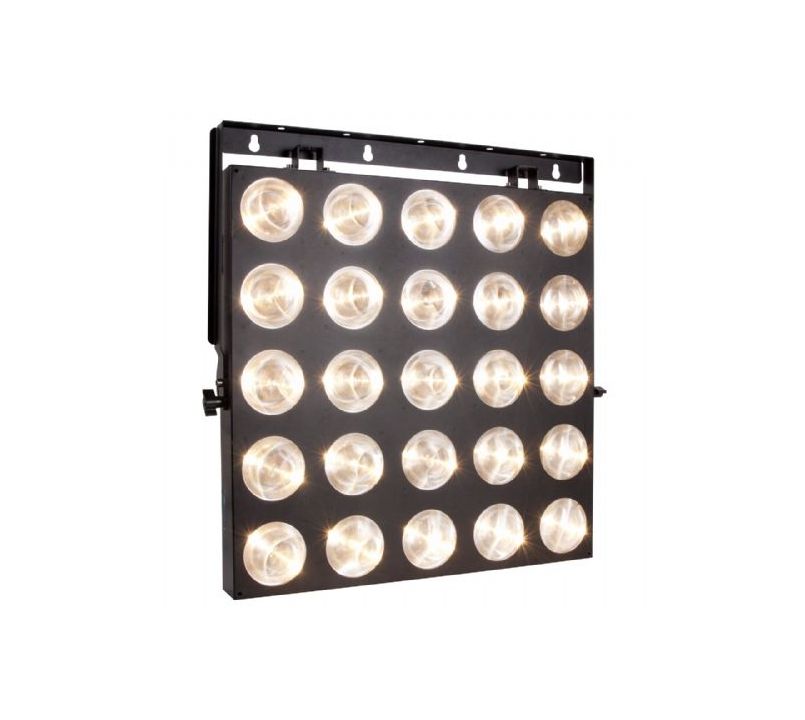

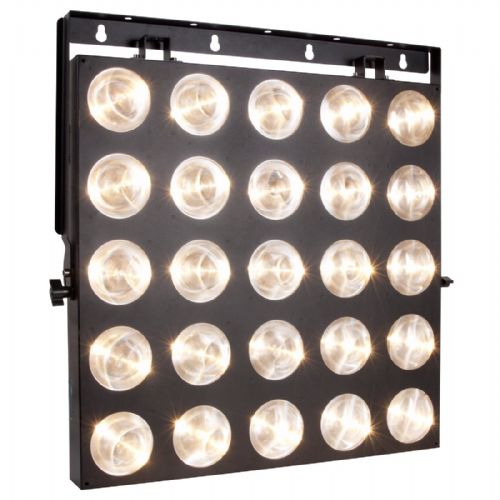

ADJ LED Matrix Beam


The Matrix Beam LED is full of user programmable features such as: 3 different DMX Channel Mode settings, 3 Operational Modes and a latch system to link multiple fixtures together for custom light show designs.

  • 25x 3W Warm White Cree LED's in a 5x5 panel
  • Designed for use as a blinder or matrix chase effect for dramatic lighting -- create your own matrix chase, alphabetic and numeric characters in light via DMX
  • Exciting built-in lighting programs -- best when used in multiples
  • 3 DMX Channel Modes: 1, 4 or 25 Channels
  • 3 Operational modes: Auto (Program Run) Mode, Sound Active Mode and DMX-512 Mode
  • Flicker Free
  • Variable speed strobe effect
  • DMX-512 Protocol
  • Electronic Dimming: 0 - 100%
  • Beam angle: 2-degree
  • Linkable via 3-pin XLR cable
  • 4-button LED display on rear panel
  • IEC AC Power In/Out on rear to daisy chain power (Power connect up to 3 Matrix Beam LED)
  • Compatible with American DJ UC3 Series easy-to-use controllers (sold Separately)
  • Yoke + safety hook included
  • Latching system to connect multiple panels together
  • Long life LEDs (Rated at 50,000 hrs.)
  • No cooling fan required -- No moving parts - Very little maintenance needed
  • Low Power Draw: 66W max
  • Multi-voltage Operation: AC 100 - 240V, 50/60Hz
  • Dimensions (LxWxH): 23.75" x 23.75" x 4.5" / 600 x 600 x 114mm 26.25" x 26.5" x 4.5" / 664 x 668 x 114mm (with handles)
  • Weight: 23 lbs. / 10.2 kg.
