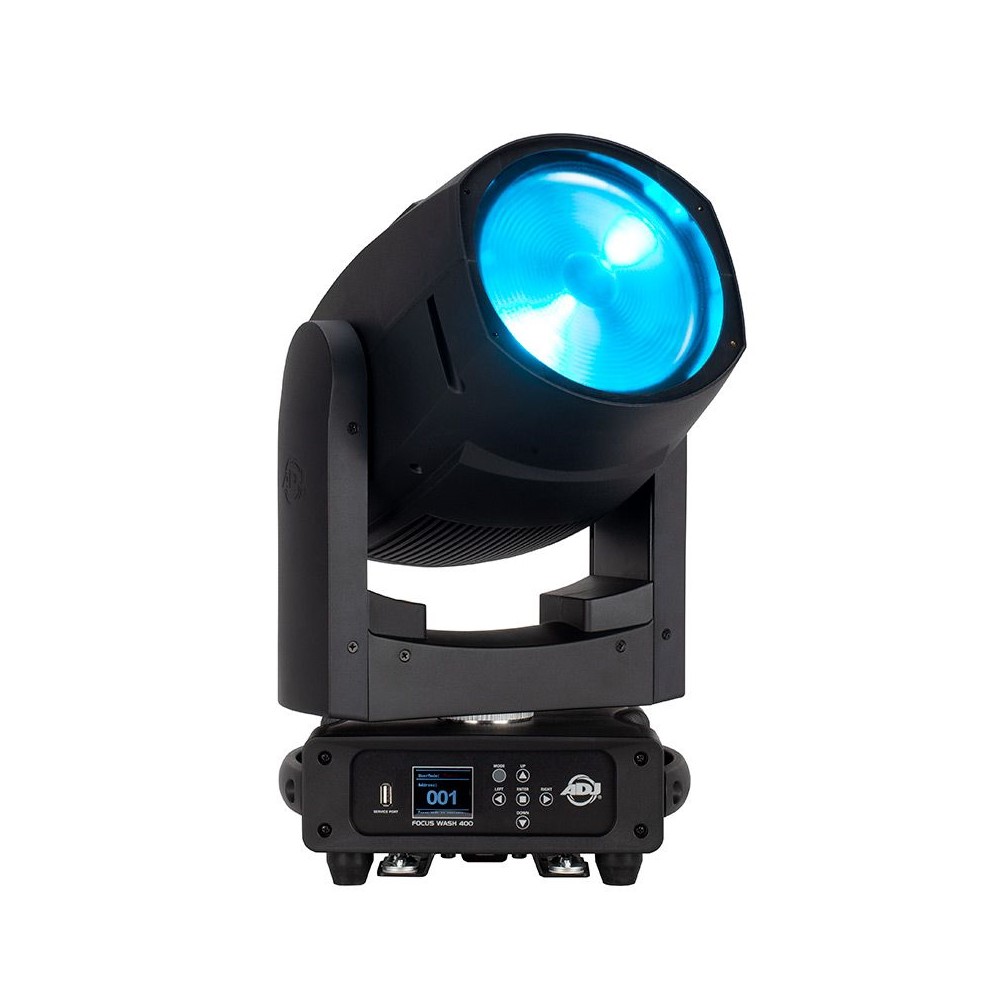

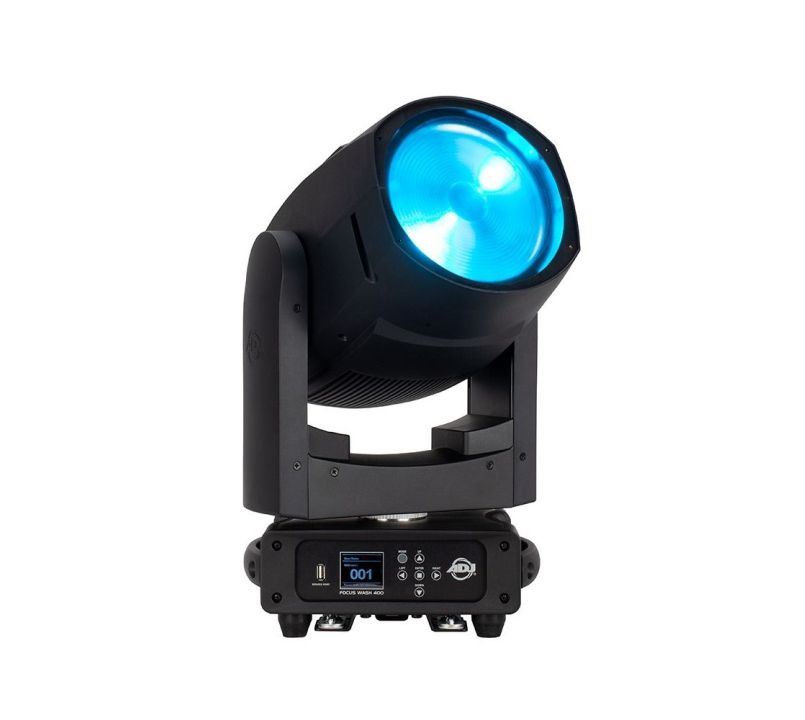

American DJ Focus Wash 400 Moving Head
BACK-ORDER - Estimated Stock Arrival: 10-12-2025
SKU
1237000240
Special Price £1,319.00 Was: £1,409.00 Save £90.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
The American DJ FOCUS WASH 400 is a 400W moving head wash fixture driven by a 400W RGBACL (Red, Green, Blue, Amber, Cyan, and Lime) LED engine. A 6-inch Fresnel lens with a motorised zoom range of 9 to 43° generates an even light field.
- See full product description
The American DJ FOCUS WASH 400 is a 400W moving head wash fixture driven by a 400W RGBACL (Red, Green, Blue, Amber, Cyan, and Lime) LED engine. A 6-inch Fresnel lens with a motorised zoom range of 9 to 43° generates an even light field.
This fixture includes flicker-free operation, configurable refresh rates from 900Hz to 25kHz, a silent fan mode, linear white colour temperature control from 2700K - 10000K, and preset white colour macros (2700K, 3200K, 4000K, 5600K, and 6500K). In addition to tunable white, the Focus Wash 400 offers a virtual CMY colour mixing channel that allows users to select any hue using a colour picker.
The Focus Wash 400's custom colour engine achieves a CRI of 92+ for brilliant whites and a CRI R9 of 87.3 for red tones. The fixture also has 16-bit pan/tilt movement, an RGBACL colour-mixing LED engine, variable dimming modes/curves, strobe effects, and DMX and RDM protocol connectivity.
The fixture includes IP65 locking power In/Out connections, locking 3-pin and 5-pin DMX In/Out sockets, a colour LCD menu display with a 6-button control panel, multiple unit power linking, a multi-voltage universal auto-switching power supply (AC100-240V), a USB port for firmware updates, and omega brackets with two hanging points.
Source
- Source: 400W RGBACL LED Engine
- 7783 Lumen
- 730 Lux@5m/43°
- 4451 Lux@5m/9°
- Average lifetime: approximately 50,000 hrs
Optics
- Zoom range: 9 - 41°
- Field Angle: 19 - 54°
- Fresnel Lens
- Motorised Zoom
Control
- DMX-512 Protocol
- 5 DMX Channel Modes (Basic (17), Standard (22), Extended (24), CMY Standard (18) or CMY Extended (24))
- RDM compatible (Remote Device management)
- 16bit dimming 0-100%
- 6 Dimming Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
- 4 Dimming Curves : Linear / Square / Inverse Square / S-Curve
- Various strobe effects
- LCD Menu Display with 6-button Control
- 3 Fan settings : Auto, High and Low Noise
Colours
- RGBACL Colour Mixing (Red, Green, Blue, Amber, Cyan, Lime)
- CRI: 94
- Preset Colour Temperatures (2700k, 3200k, 4000k, 5600k and 6500k)
Construction
- Metal casting with ABS housing
- Omega bracket with quick locks
Electrical
- Multivoltage : 100-240V 50/60Hz
- Power Draw : 438W
Connections
- Locking 3- & 5-pin DMX In/Out
- IP65 Locking Power In/Out
Dimensions & Weight
- Dimensions: 213 x 278 x 568mm
- Weight: 10,7 kg.
Included accessories
- Snoot
- 1x40° Linear Lens
- 2 Omega Brackets
- Safety Cable
- IP65 Locking Power Cable
