American DJ Focus Spot 2X 100w LED Moving Head
Availability:Out of stock
SKU
1227000010
£868.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
This product is no longer available - please click here to view similar items.

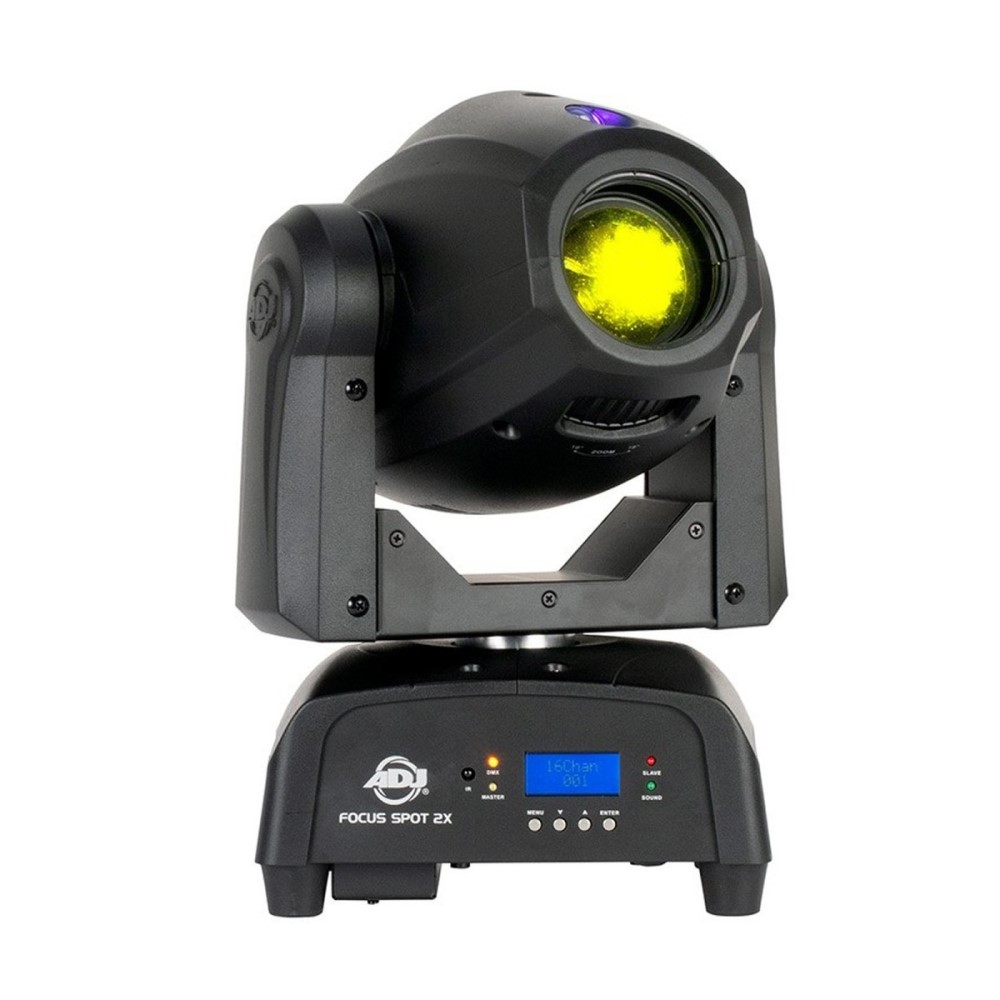

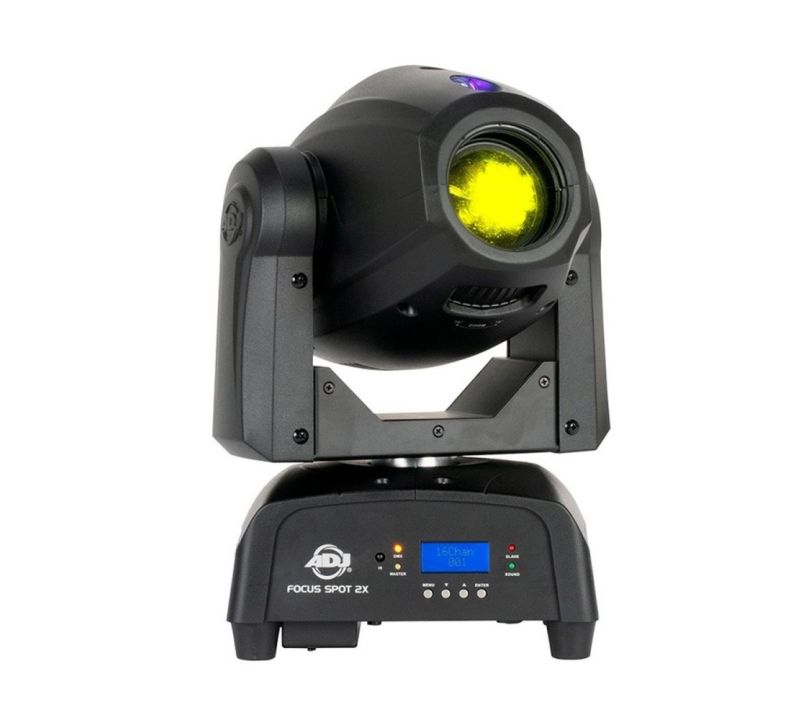

The ADJ Focus Spot 2X is a powerful 100W LED Moving Head with a 3W UV LED included for additional colour hues and black-lighting.
- See full product description
The ADJ Focus Spot 2X is a powerful 100W LED Moving Head with a 3W UV LED included for additional colour hues and black-lighting.
The Focus Spot 2X features two prism effects, 6-facet circular prism and a 6-facet linear prism. ADJ have fitted the FS2X with a GOBO wheel and rotating, indexable GOBOs which are all replaceable. The GOBOs are simple to replace by removing the top housing with one screen that is on a hinge. The GOBOs easily lock in and out of the GOBO wheel. This mover has been equipped with motorized focus, Gobo Indexing, EZ Gobo replacement and also a manual zoom knob close to the lens to change the angle of the beam from 16 - 19 degrees.
The ADJ Focus Spot 2X is exceptionally versatile and has everything clubs, churches, theatres, concert productions and lighting professionals are looking for when buying a professional LED spot moving head. The Focus Spot 2X includes 16 & 18 DMX channel modes, Pan/Tilt Inversion, 16-Bit Fine Pan/Tilt, locking In/Out power connectors, 3-pin DMX In/Out and a 4-Button DMX LCD menu.
The American DJ Focus Spot has been fitted with eight colours plus spot and split colours. It consists of 6 rotating, replaceable GOBO patterns plus spot. The colour wheel and GOBO wheels work independently. All GOBOs are indexable.
Light Source
- 1 x 100W Cold White LED (7600˚K, 50,000 hr.)
- 1 x 3W UV LED
Features
- Motorized Focus
- Manual Zoom knob on head: 16 ~ 19 degree beam angle
- Fan cooled
- Strobe/Pulse effect; random strobe slow to fast
- UC IR & Airstream IR Compatible (Sold Separately)
Color Wheel
- 8 Colors + White & Split Colors
GOBO Wheel
- 6 Rotating, replaceable Gobos + Spot
- Gobo Size: Outer: 23mm/Inner:19mm/Thickness: 0.5mm
- Gobo Indexing
- EZ Gobo replacement with hinged head cover
- Gobo Shake effect
Prism Wheel
- 6-facet circular prism
- 6-facet linear prism
Control
- 3 Operational Modes: Sound Active, Show Mode, & DMX Controlled
- Master / Slave-able
- 4 Built-in lighting shows
- 16 & 18 DMX channel modes
- Electronic Dimming: 0% - 100%
- 5 Dimmer Curves
- 4-Button DMX LED menu
- Stepper motors with micro stepping
- With Wired Digital Communication Network
Connections
- 3-pin DMX In/Out
- Twist locking power In/Out connections on rear to daisy chain power (up to 9 Focus Spot 2X’s @ 120V and 16 Focus Spot 2X’s @ 230V)
Pan/Tilt
- Fast and precise Pan/Tilt Movements
- 16-Bit Fine Pan/Tilt control
- Pan: 540-degree
- Tilt: 270-degree
- Pan/Tilt Invert Mode
- 4, Built-In, Pan/Tilt Target Modes
Electrical
- Multi-voltage Operation: 100-240V, 50Hz/60Hz
- Power Consumption: 180W
Dimensions / Weight
- Dimensions (LxWxH): 9.33” x 9.10” x 15.15”/ 237 x 231 x 385mm
- Weight: 14.5 lbs. / 6.5 kgs.
What’s Included
- Includes Omega bracket for truss mounting
- Includes power cable
