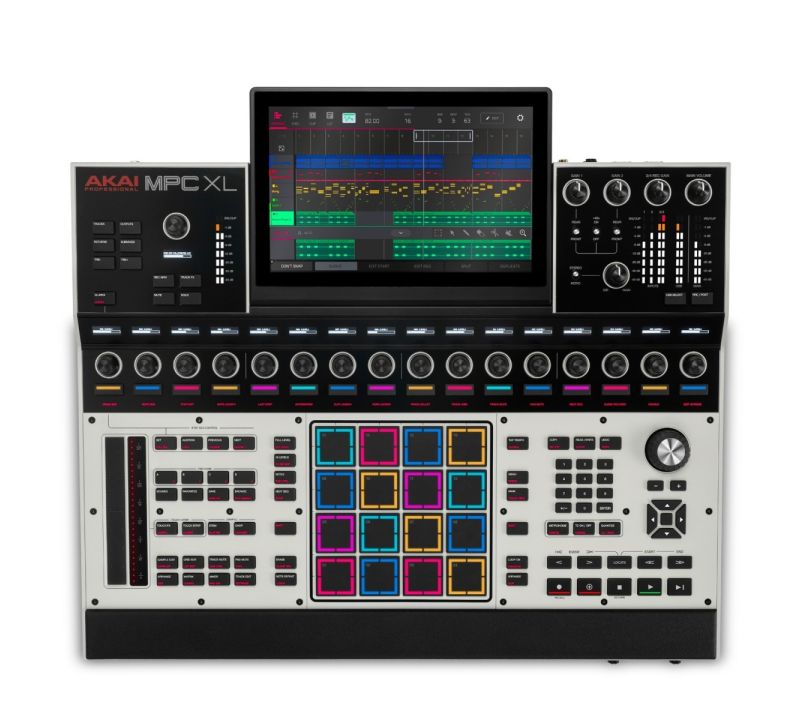

Akai Pro MPC XL Standalone Music Production Workstation
BACK-ORDER - Estimated Stock Arrival: 25-02-2026
SKU
MPCXLXUK
£2,499.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
The Akai Pro MPC XL takes the legendary MPC heritage to its most powerful standalone form yet. Built for producers who want a fast, hands-on workflow without relying on a computer, MPC XL delivers professional studio performance in a single, self-contained music production workstation.
- See full product description
The Akai Pro MPC XL takes the legendary MPC heritage to its most powerful standalone form yet. Built for producers who want a fast, hands-on workflow without relying on a computer, MPC XL delivers professional studio performance in a single, self-contained music production workstation.
At the heart of MPC XL is a next generation Gen 2 8-core processor paired with 16 GB of RAM, offering up to four times the processing power of previous MPC models. This allows you to run multiple plugin instruments, audio tracks, and effects simultaneously while keeping your creative flow uninterrupted. With support for up to 32 plugin instruments, 16 audio tracks, and 256 simultaneous voices, MPC XL is designed to handle demanding modern production sessions with ease.
The Akai MPC XL features ultra-responsive MPCe pads with advanced 3D sensing technology, giving you a new level of expressive control. Each pad is divided into four quadrants, allowing you to morph, loop, layer, and manipulate sounds in real time. A dedicated step sequencer with 16 RGB function buttons, a performance touch-strip, and 16 touch-sensitive Q-Link knobs with OLED displays provide immediate, tactile control over every aspect of your music.
Running on the MPC3 operating system, MPC XL offers advanced sequencing, clip launching, professional stem separation, high quality time stretching, and deep performance tools that MPC users know and trust. A large 10.1 inch tilting HD touchscreen ties everything together, making editing, arranging, and sound design fast and intuitive.
Connectivity is equally powerful. Dual XLR and TRS combo inputs with phantom power make it easy to record vocals and instruments, while dedicated instrument inputs, multiple line outputs, USB-C audio and MIDI connectivity, and CV and Gate outputs ensure MPC XL integrates seamlessly into any studio or live setup.
Whether you are producing beats, composing full tracks, or performing live, the Akai Pro MPC XL is a true studio centrepiece built for creative freedom and uncompromising performance.
- Standalone music production workstation with MPC3 OS
- No computer required for full operation
- Gen 2 8-core processor with four times the power of previous MPC models
- 16 GB RAM for running multiple plugins and audio tracks
- 256 GB internal SSD for projects, samples, plugins, and presets
- MPCe pads with advanced 3D sensing and four control zones per pad
- Performance touch-strip for expressive control of effects and parameters
- Step sequencer with 16 RGB function buttons
- 16 Q-Link knobs with OLED displays for real-time visual feedback
- XL Channel Command for fast access to mixing and recording controls
- One-to-one function buttons for instant workflow access
- 10.1 inch HD multi-gesture touchscreen with adjustable tilt
- Two XLR and TRS combo inputs with mic preamps and phantom power
- Two dedicated instrument inputs for guitars and keyboards
- Eight separate line outputs for external routing and mixing
- USB-C connectivity supporting 24 channels of audio I/O and 32 channels of MIDI I/O
- Eight stereo CV and Gate outputs providing 16 CV outputs total
Digital Audio System
- ADCs: 24-bit @ 44.1, 48, 88.2, or 96 kHz
- DACs: 24-bit @ 44.1, 48, 88.2, or 96 kHz
- Digital Signal Processing: 32-bit floating point
Mic Inputs 1–2 - (2) balanced XLR+1/4” (6.35 mm) TRS
- Frequency Response: 20 Hz – 20 kHz (+0.19 / -0.16 dB)
- Dynamic Range: 109.8 dB (A-weighted)
- SNR: 109.3 dB (1 kHz, +4 dBu, A-weighted)
- THD+N: 0.001% (1 kHz, +4 dBu, -1 dBFS)
- Preamp EIN:
- -134 dBu (max gain, 40 Ω source, A-weighted)
- -129 dBu (max gain, 150 Ω source, unweighted)
- Maximum Input Level: +12.7 dBu
- Sensitivity: -45.5 dBu
- Gain Range: 58.2 dB
Line Inputs 1–2 - (2) balanced XLR+1/4” (6.35 mm) TRS
- Frequency Response: 20 Hz – 20 kHz (+0.09 / -0.05 dB)
- Dynamic Range: 109.8 dB (A-weighted)
- SNR: 109.4 dB (1 kHz, +4 dBu, A-weighted)
- THD+N: 0.001% (1 kHz, +4 dBu, -1 dBFS)
- Maximum Input Level: +20.1 dBu
- Sensitivity: -9.6 dBu
- Gain Range: 29.7 dB
Line Inputs 3–4 - (2) balanced 1/4” (6.35 mm) TRS
- Frequency Response: 20 Hz – 20 kHz (+0.09 / -0.05 dB)
- Dynamic Range: 110.8 dB (A-weighted)
- SNR: 109.7 dB (1 kHz, +4 dBu, A-weighted)
- THD+N: 0.001% (1 kHz, +4 dBu, -1 dBFS)
- Maximum Input Level: +20.3 dBu
- Sensitivity: -10.3 dBu
- Gain Range: 30.6 dB
Instrument Inputs 1–2 - (2) unbalanced 1/4” (6.35 mm) TS
- Frequency Response: 20 Hz – 20 kHz (+0.15 / -0.05 dB)
- Dynamic Range: 111.0 dB (A-weighted)
- SNR: 109.6 dB (1 kHz, +0 dBu, A-weighted)
- THD+N: 0.0013% (1 kHz, +0 dBu, -1 dBFS)
- Maximum Input Level: +10.1 dBu
- Sensitivity: -19.6 dBu
- Gain Range: 29.7 dB
Phono Inputs - (2) unbalanced RCA
- Dynamic Range: 103.3 dB (A-weighted, 65 mVrms @ 1 kHz, -1 dBFS, 20 Ω source)
- SNR: 97 dB (A-weighted, 4 mVrms @ 1 kHz, 20 Ω source)
- THD+N: 0.036% (1 kHz, -46 dBu, -1 dBFS)
- Maximum Input Level: 65 mVrms (1 kHz)
- Sensitivity: 2 mVrms (1 kHz)
Main Outputs 1–2 - (2) impedance-balanced 1/4” (6.35 mm) TRS
- Frequency Response: 20 Hz – 20 kHz (+0.06 / -0.31 dB)
- Dynamic Range: 115.6 dB (A-weighted)
- THD+N: 0.003% (1 kHz, -1 dBFS)
- Maximum Output Level: +20.3 dBu
- Output Impedance: 100 Ω
Line Outputs 3–8 - (6) impedance-balanced 1/4” (6.35 mm) TRS
- Frequency Response: 20 Hz – 20 kHz (+0.06 / -0.24 dB)
- Dynamic Range: 116.3 dB (A-weighted)
- THD+N: 0.005% (1 kHz, -1 dBFS)
- Maximum Output Level: +20.4 dBu
- Output Impedance: 100 Ω
Headphone Outputs
- (1) 1/4” (6.35 mm) stereo headphone
- (1) 1/8” (3.5 mm) stereo headphone
- Dynamic Range: 100.6 dB (A-weighted)
- THD+N: 0.025% (1 kHz, -1 dBFS, 10 mW/channel into 32 Ω headphones)
- Frequency Response: 20 Hz – 20 kHz (+0.06 / -0.31 dB)
- Maximum Power Delivered: 260 mW (<1% THD, 32 Ω headphones)
- Maximum Output Level: +20.4 dBu
- Output Impedance: 32 Ω
Pads
- (16) velocity- and pressure-sensitive pads with 3D sensing
- (8) banks (selectable via Pad Bank buttons)
Knobs
- (17) 360° touch-sensitive Q-Link knobs
- (1) 360° encoder with push
- (7) 270° knobs (gain, mix, level)
Buttons
- (105) dedicated buttons
- (36) single-colour LED
- (43) dual-colour LED
- (1) dual colour + red
- (17) RGB LED
- (8) unlit
Displays
- (1) 1280×800 full-colour, optically bonded, multi-touch display (10.1” / 256.5 mm)
- (17) monochrome 128×32 OLED displays
CPU/Memory/Storage
- CPU: 8-core processor
- Memory: 16 GB
- Storage: 256 GB internal NVMe SSD + SATA expansion bay
Connections - Physical
- (2) 1/4” (6.35 mm) combo XLR/TRS inputs (stereo pair)
- (2) 1/4” (6.35 mm) TRS line inputs (stereo pair)
- (2) RCA phono inputs (stereo pair)
- (2) 1/4” (6.35 mm) instrument inputs
- (2) 1/4” (6.35 mm) TS footswitch inputs
- (8) 1/4” (6.35 mm) TRS outputs (4 stereo pairs)
- (1) 1/4” (6.35 mm) stereo headphone output
- (1) 1/8” (3.5 mm) stereo headphone output
- (4) 5-pin MIDI outputs
- (2) 5-pin MIDI inputs
- (8) stereo 1/8” (3.5 mm) CV/Gate outputs
- (1) USB Type-C port
- (3) USB Type-A ports
- (1) SD card slot
- (1) power adapter input
- (1) drive bay for 2.5” SATA drive
Connections - Wireless
- Wi-Fi
- Bluetooth
Power
- 19 V, 3.42 A, center-positive (adapter included)
Dimensions (Display Flat)
- 21.4” × 19.2” × 3.7” (543 × 488 × 94 mm)
Weight
- 15.87 lbs / 7.2 kg
