American DJ Vizi Pix Z19 Moving Head Light Effect
In-stock with Our Supplier - Estimated delivery 10-14 days
SKU
1237000363
£926.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview

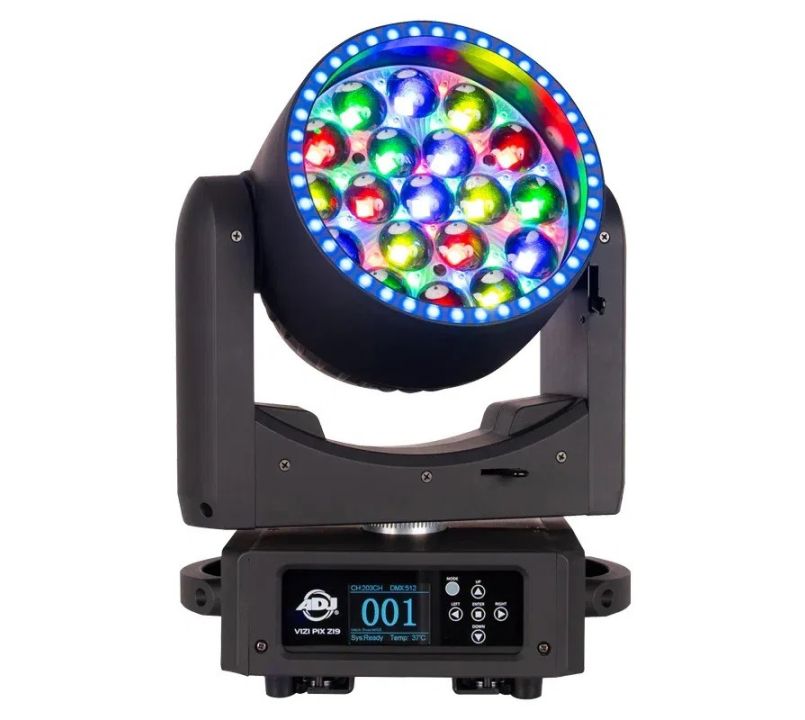

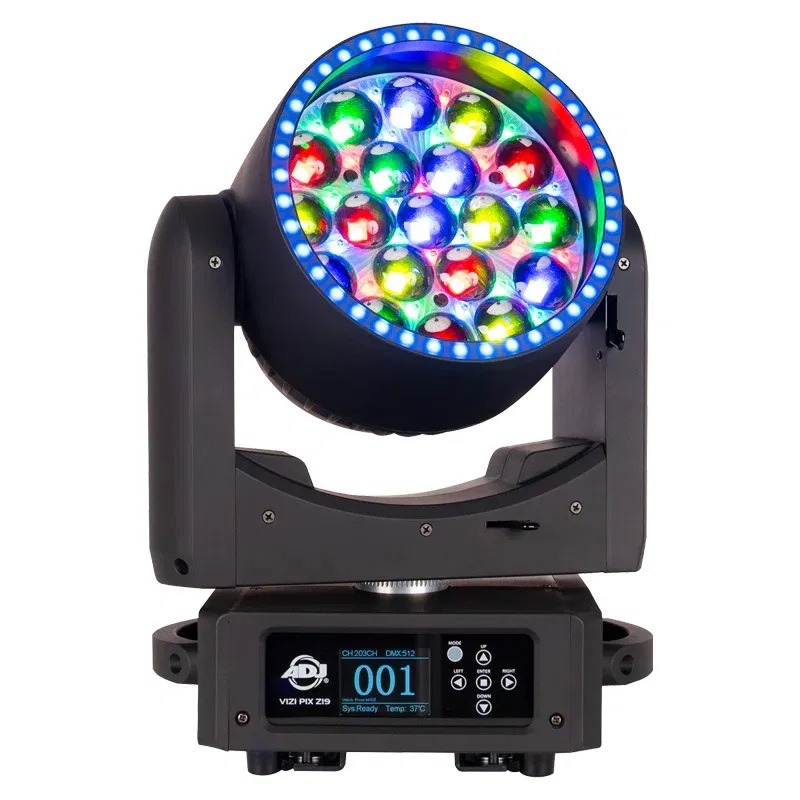

The American Dj Vizi Pix Z19 is a premium moving-head lighting fixture designed to deliver bold colour, stunning visual effects and professional performance for stages, venues and live events. Powered by nineteen 30W RGBL LEDs, it produces rich, vibrant output with advanced virtual CMY colour mixing, a wide motorised zoom and smooth dimming.
- See full product description
The American Dj Vizi Pix Z19 is a premium moving-head lighting fixture designed to deliver bold colour, stunning visual effects and professional performance for stages, venues and live events. Powered by nineteen 30W RGBL LEDs, it produces rich, vibrant output with advanced virtual CMY colour mixing, a wide motorised zoom and smooth dimming.
Its unique design includes 30 RGB background LEDs and an eye-catching 40-light RGB LED ring, all fully pixel-mappable to create intricate patterns, dynamic chases and high-impact visual moments. A range of built-in pixel effects and colour macros adds even more creative flexibility straight out of the box.
Control options are extensive, with DMX, Art-Net, sACN, RDM and the Aria X2 wireless system available for easy integration and wireless updates. Adjustable dim curves, selectable LED refresh rates and a colour temperature range from 2700K to 10,000K make the Vizi Pix Z19 suitable for everything from live touring environments to broadcast-ready applications.
Finished with robust pan/tilt locks, durable Seetronic power and data connections, and a lightweight, low-maintenance construction, the Vizi Pix Z19 delivers precision, reliability and versatility making it a powerful addition to any professional lighting setup.
- Moving Light Pixel Wash with Effects
- Individual Pixel Control (Foreground & Background LEDs)
- RGB LED Ring
- Built-In Pixel Effect Programs
- Aria X2 Wireless Management System
- Electronic Strobe / Dimmer
- Pan/Tilt: 630/540° x 270°
- Motorised Zoom
- Colour Calibrated Pixels so units match from batch to batch
- Virtual CMY DMX Control Modes
- Virtual Foreground and Background Colour Wheel Control
- Selectable LED Refresh Rates (900Hz~25kHz)
- Selectable Dim Modes: Standard, Stage, TV, Arch., Theatre, Stage 2 and user settable Dim Speed (0.1S~10S)
- 4 Dim Curves: Square, Linear, Inv. Square and S. Curve
- 0-100% smooth dimming
- Fan Cooled
Optical (Foreground LEDs)
- 19x 30W RGBL (4-IN-1) LEDs
- 30,000 Hour Average LED Life
- CRI: 86
- 15,000 Lux (Zoomed In to 7° @ 5 meters)
- 7° to 42° Beam Angle
- 9° to 60° Field Angle
Optical (Background LEDs)
- 30x 0.5W SMD RGB LEDs
- 50,000 Hour Average LED Life
Optical (Ring LEDs)
- 40x 0.5W SMD RGB LEDs
- 50,000 Hour Average LED Life
Colours
- 19x RGBL LEDs (Red, Green, Blue and Lime)
- 70x RGB LEDs (Red, Green and Blue)
- Virtual CMY DMX Control Modes
- Virtual Foreground and Background Colour Wheel Control
- Built-In Colour Macros
- 2,700K ~ 10,000K Linear White Colour Temperature Control
- Colour Temperature Presets: 2,700, 3,000, 3,200, 4,000, 4,500, 5,000, 5,600, 6,500, 8,000 and 10,000K
Effects
- 19x 30W RGBL (4-IN-1) Foreground LEDs, Fully pixel mappable
- 30x 0.5W RGB Background LEDs, Fully pixel mappable
- 40x 0.5W RGB Ring LEDs, three channel control
- Variable Strobe & Pulse effects (0.5Hz to 33Hz)
- Motorised Zoom (7° to 42°)
Connections
- Seetronic, IP65 locking power In & Thru Connections
- Seetronic, IP20 5-pin In & Out DMX Connections
- 2x IP20, RJ45 network ports
Control
- Aria X2 Wireless Management System
- DMX-512
- RDM (Remote Device Management)
- Artnet
- sACN
- 7 DMX Control Modes: 32 / 43 / M1 58 / M2 58 / 203 / 123 & 133 channels
- Built-In Effect Pixel Programs with Speed and Fade Control
- With Wired Digital Communication Network
Pan/Tilt
- Pan: 630° or 540°
- Tilt: 270°
- 16-Bit Fine Pan & Tilt
- Pan & Tilt Locks
Electrical
- Multi-voltage operation: AC100-230V, 50/60Hz
- Max power consumption: 690W @ 230V
Dimensions & Weight
- Dimensions (LxWxH): 310x230x408mm
- Weight: 10.1 kg.
What's Included
- 108mm Omega Brackets (2x)
- 1x 2M, IP65-rated locking power cable
Approvals / Rating
- IP20
