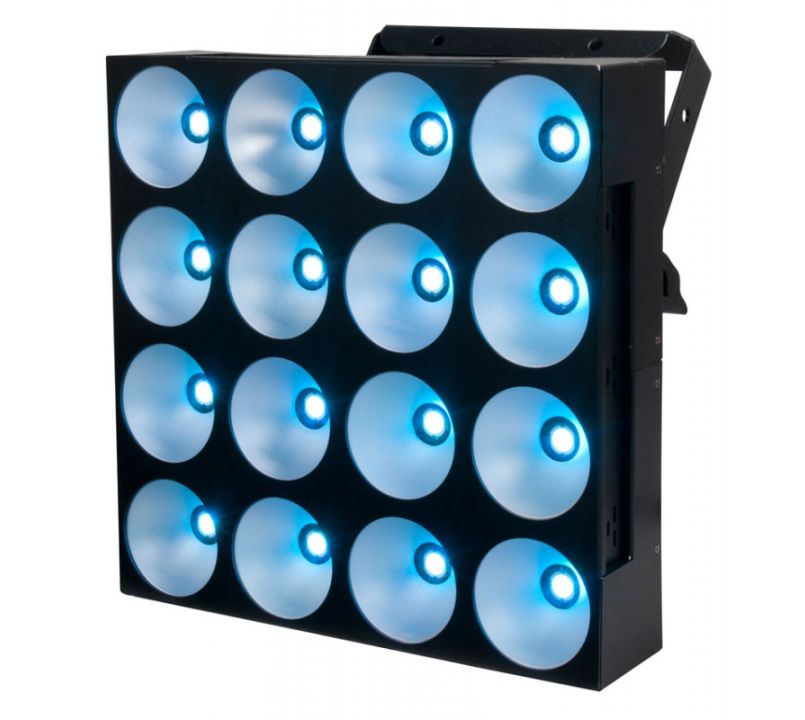

ADJ Dotz Matrix LED Lighting Effect

American DJ - Lighting and Effects Units
Availability:Out of stock
SKU
1215200023
£784.00

Seen it cheaper? We aim to match authorised UK dealers

Quick overview

ADJ’s Dotz Matrix is a Wash/Blinder fixture with advanced COB LED technology allowing for a powerful LED engine to be placed in a small amount of space.

  • COB Technology
  • Built-In preset colours and programs
  • Flicker Free operation
  • LED pulse and strobe effect
  • Fan Cooled
  • See full product description
Add to Wish List
Description Features Tech spec

This product is no longer available - please click here to view our latest range of LED Lighting Effects.

ADJ’s Dotz Matrix is a Wash/Blinder fixture with advanced COB LED technology allowing for a powerful LED engine to be placed in a small amount of space.

The fixture has many pro features such as: 0-100% electronic dimming, strobe/pulse effect, built-in shows and colors macros, a 4-button DMX LCD display, PowerCon AC In/Out, 5 selectable Dim Curves for stage lighting, 4 Pixel Flipping options, and 5 DMX channel modes. Dotz Matrix may run in its stand-alone mode from built-in programs, sound actively, or from a DMX Controller.

The result is a super-charged, high output, wash fixture with smooth color mixing powered by sixteen 30W TRI COB LEDs. Dotz Matrix also has Pixel Mapping capabilities for stunning visual effects, and boasts a powerful 430 Watts with a massive 60 degree beam angle.

  • 4 x 4 COB LED high output Wash/Blinder Matrix panel
  • COB Technology (Chip On Board) produces powerful, smooth RGB colour mixing with rich palettes of colour
  • Use as Wash/Blinder or Pixel Mapped matrix for a stunning visual effect
  • Great for Stage Lighting, Bands or Night Clubs
  • 5 DMX channel modes: 3, 6, 7, 48 & 52 channel
  • Individual Pixel controllable in 48 & 52 channel DMX modes
  • 4x Pixel Flip options changes pixel orientation
  • 4x Operational modes: Auto, Sound Active, Manual RGB Dimmer, Static Colour, and DMX-512
  • RDM Compliant (Remote Device Management)
  • Built-In preset colours and programs
  • Flicker Free operation (No flickering on camera)
  • LED pulse and strobe effect
  • Electronic Dimming: 0 - 100%
  • 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
  • 60-degree beam angle
  • 3 & 5-pin XLR chassis mount connectors for DMX linking
  • PowerCon AC IN/OUT to daisy chain power (up to 5 Dotz Matrix's @ 120V and 9 Dotz Matrix's @ 230V on one 20 amp circuit )
  • Power Draw: 430W total (All LED's @ Full)
  • 4-button DMX LCD display
  • Single yoke allows fixture to be mounted
  • Fan Cooled
  • Light Source: 16x 30-Watt COB TRI LEDs (RGB: 3 in 1)
  • Auto sensing power supply: AC 100V/60Hz - 240V/50Hz
  • Dimensions (LxWxH): 345 x 170 x 370mm
  • Weight: 7.8 kg
