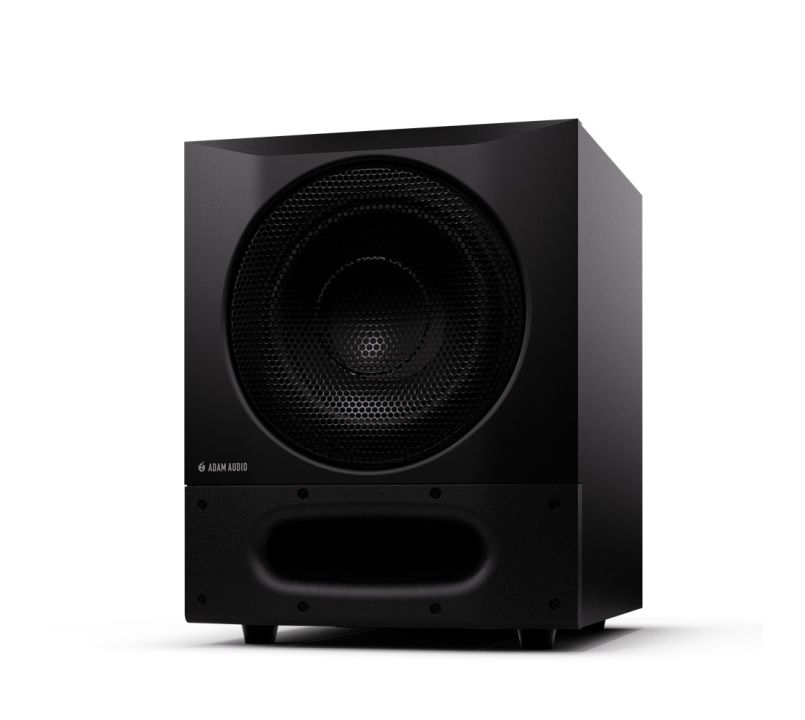

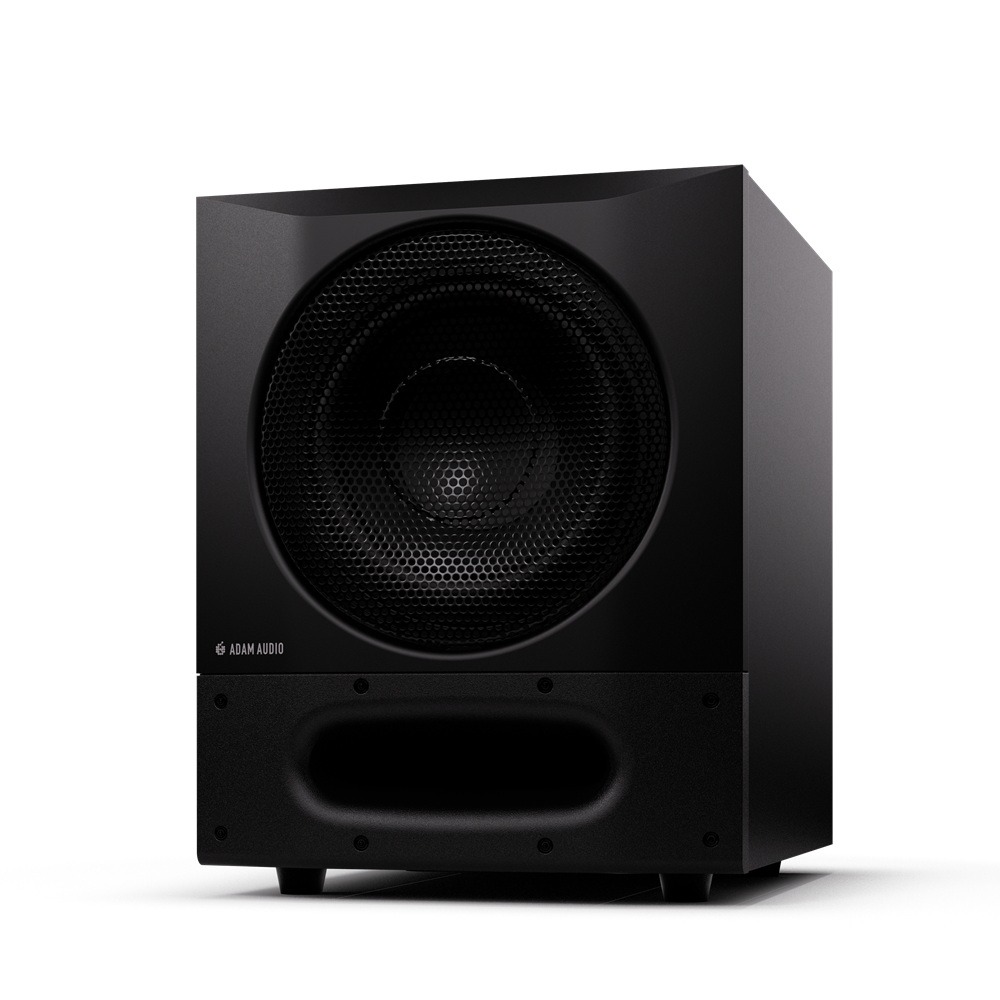

Adam Audio Sub8 Pro Subwoofer
Available to Order - Stock Incoming (Date TBC)
SKU
14106300
£829.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
The Adam Audio Sub8 Pro is a professional 8” subwoofer designed to provide powerful, controlled low-frequency reproduction for compact monitoring systems. Combining a high-excursion, low-distortion woofer with an FEA-optimised bass reflex port, Class D amplification and advanced DSP, it delivers a solid foundation for accurate stereo and multichannel monitoring.
- See full product description
The Adam Audio Sub8 Pro is a professional 8” subwoofer designed to provide powerful, controlled low-frequency reproduction for compact monitoring systems. Combining a high-excursion, low-distortion woofer with an FEA-optimised bass reflex port, Class D amplification and advanced DSP, it delivers a solid foundation for accurate stereo and multichannel monitoring.
The Sub8 Pro offers comprehensive connectivity and control options, including AES3 digital I/O, balanced XLR and TRS analogue connections, and a dedicated footswitch input for activating or bypassing bass management. Precise phase and crossover controls make it easy to integrate the subwoofer into your monitoring setup.
Network connectivity provides access to Adam Audio’s ADAM Control software, allowing you to remotely manage and calibrate the Sub8 Pro over Ethernet. The software enables manual time alignment, four-band parametric EQ adjustment and the application of Sonarworks calibration profiles through the integrated DSP platform. Firmware updates can also be managed through ADAM Control, allowing additional functionality to be introduced over time.
The Sub features three operating modes to suit different monitoring applications. Stereo mode is designed for conventional 2.1 systems, while LFE mode is optimised for immersive workflows such as Dolby Atmos. Wide mode allows the subwoofer to play full range, providing greater flexibility when handling bass management elsewhere in the signal chain.
At the heart of the Sub8 Pro is its high-excursion 8” woofer, featuring a fibre-reinforced paper cone, rubber surround and a precision ferrite magnet system designed for controlled, low-distortion performance. The FEA-optimised bass reflex port has been engineered to improve airflow and reduce turbulence, helping the subwoofer deliver high sound pressure levels with greater consistency.
A highly efficient Class D amplifier drives the woofer, while DSP-controlled amplification, limiting, crossovers and filters help maintain consistent performance and protect the subwoofer's components. Audiophile-grade converters complete the signal path.
All of this technology is housed in a robust, vibration-resistant MDF cabinet with additional internal bracing and a protective steel grille. The Sub8 Pro comes with a 2-year warranty, extendable to 5 years upon product registration.
- 8” high-excursion woofer for powerful, controlled low-frequency reproduction
- FEA-optimised bass reflex port designed to reduce turbulence and improve airflow
- High-performance Class D amplifier with DSP-controlled limiter
- Advanced DSP for precise crossover, filtering and equalisation
- ADAM Control network software for remote tuning, calibration and firmware updates
- Four-band parametric EQ for detailed response adjustment
- Sonarworks-ready with support for SoundID Reference calibration profiles
- AES3 digital input and output supporting two channels up to 24-bit/96 kHz
- Balanced XLR and TRS analogue I/O
- Dedicated footswitch input for activating or bypassing bass management
- Three operating modes: Stereo, LFE and Wide
- LFE mode with 120 Hz cutoff for immersive applications including Dolby Atmos
- Wide mode provides full-range playback for flexible bass management
- High-excursion, low-distortion woofer with fibre-reinforced paper cone
- Robust MDF cabinet with internal bracing to minimise unwanted resonances
- Protective steel grille helps protect the 8” woofer
- 2-year warranty, extendable to 5 years with product registration
What's In The Box
- 1x Sub8 PRO
- 1x IEC power cable
- Quick start guide and safety and warning sheet
Acoustics
- Frequency Response @ -3 dB: 30 - 228 Hz
- Frequency Response @ -6 dB: 26 - 300 Hz
- Max SPL in half space at 1 m with sine bursts (average 50 - 100 Hz) at 3% THD (rms): 105 dB
- Max SPL in half space at 1 m with sine bursts (average 25 - 50 Hz) at 10% THD (rms / peak): 101 / 104 dB
- Max peak SPL in half space at 1 m with IEC-weighted noise (Stereo mode): 113 dB
- Dolby D.A.R.D.T. max peak SPL (full range / 85 Hz bass managed): 112 dB
- Crossover Frequencies: 70, 85, 100, 115 Hz
- Self-generated noise (@ 10 cm, level = +6 dB / Wide Mode): < 20 dB (A)
Drivers
- Woofer Basket Diameter: 8"
- Woofer Voice Coil Diameter: 35 mm
- Woofer Cone Material: Paper
Audio Input Connectors
- Analog: 2 x XLR / TRS combi
- Digital: XLR AES3
- Input Impedance (Analog): 25 kOhm
- Input Impedance (Digital): 110 Ohm
- Max. Input Level: 19 dBu
Audio Output Connectors
- Analog: 2 x XLR
- Digital: XLR AES3
Signal Processing
- AD converter: 24-bit
- Internal sample rate: 96 kHz
- Delay range, resolution: 0 - 10 ms / 32-bit
- Protection: Independent peak and thermo limiters; Over Current Protection; Over
- Temperature Protection, Under Voltage Protection
Amplification
- Woofer amplifier - Type: PWM
- Woofer amplifier - Peak (10% THD, limiter deactivated): 325 W
- Woofer amplifier - RMS (1% THD, limiter deactivated): 200 W @ 3 Ohm
Control Options (via backplate)
- Input sensitivity: 0 dBu = 100 dB SPL at 1 m @ 0 dB level setting, full space
- Level: -18 dB to +6 dB
- Input selection: analog, digital
- Phase: 0°, -45°, -90°, -135°, -180°, -225°, -270°, -315°
- Bass Management: 70, 85, 100, 115 Hz
- Operational Modes: Remote Control, Local / Stereo, LFE (<120Hz), Wide
- Footswitch: yes (Bypass), TS-connection latched
Control Options (via network)
- Networking connector: RJ45
- Connection type: Ethernet
- Communication protocol: AES70 / TCP
- Control software: ADAM Control
- Advanced Room Adaptation: 4-bands Parametric EQ
- Third-party calibration compatibility: Import from SoundID Reference
General Data
- Cabinet design: Front Fire and front ported
- Cabinet material: Vinyl wrapped MDF and painted MDF front panel
- Power consumption; max, standby: 400 W max, 2.5W standby
- AC input voltage: 100 - 240V, 50/60 Hz
- Power rating: 400 W max
- Peak in-rush current: 6,0.7 A
- Operating conditions: -10° C to +40° C (+14° F to +104° F); <75% RH, non-condensing
- Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
Weight and dimensions
- Weight: 15.3 kg (33 lb 12 oz)
- Dimensions (H x W x D): 385 x 300 x 365 mm (15.2” x 11.8” x 14.4”)
